Akai GX-630D Operator's Manual

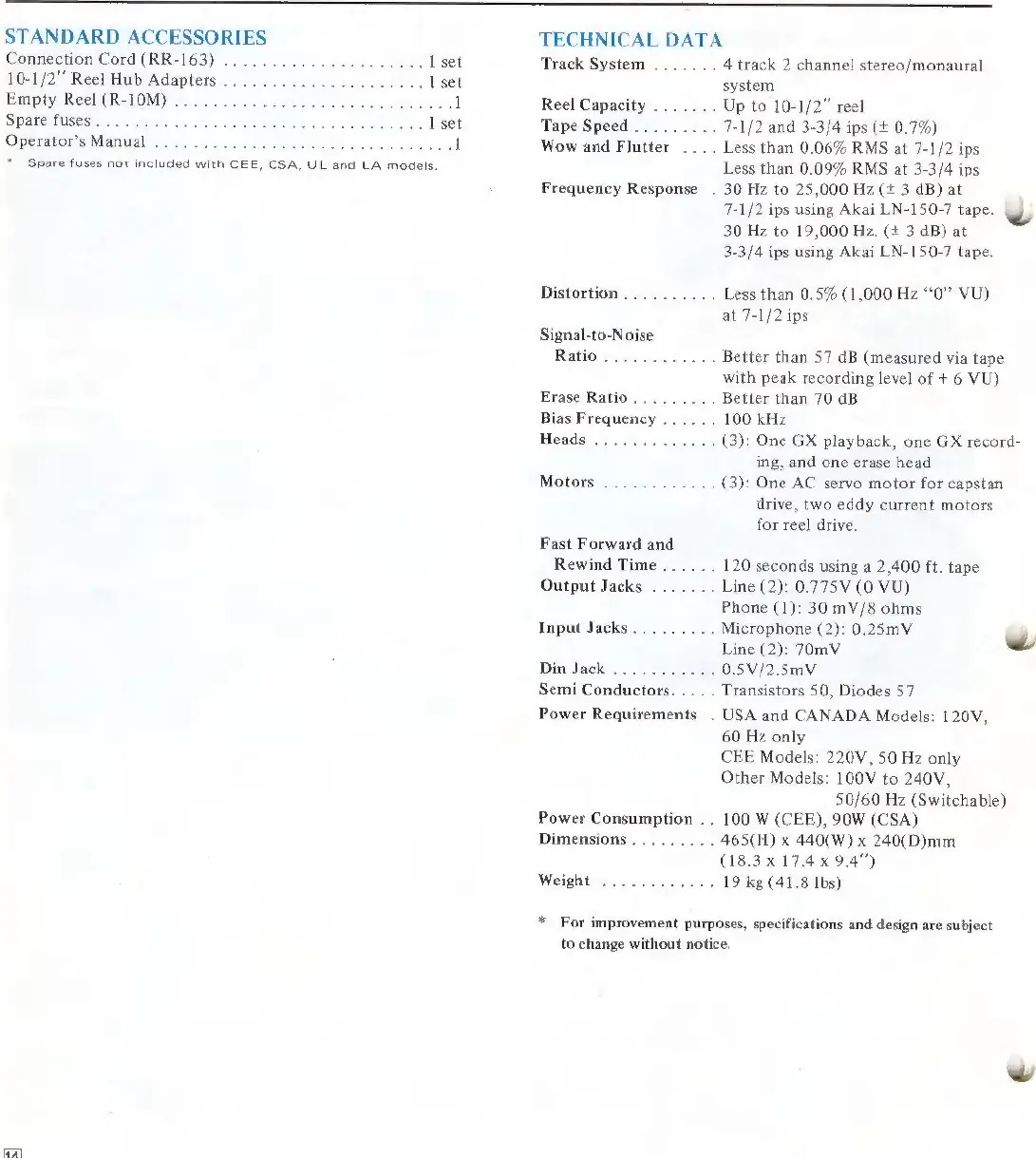

STANDARD ACCESSORIES
Connection Cord (RR-163) 1 set
10-1/2" Reel Hub Adapters E E
Empty Reel (R-10M) ........- 200.0000: FR
Spare fuses....... AR E ics oe -1 set
Operator's
Manual
6453
<4
oc.
c
esc
Reemi
rar
d
* Spare fuses not included with CEE, CSA, UL and LA models.
TECHNICAL DATA
Track System ....... 4 track 2
system
Up to 10-1/2" reel
7-1/2 and 3-3/4 ips (+ 0.7%)
Less than 0.06% RMS at 7-1/2 ips
Less than 0.09% RMS at 3-3/4 ips
Frequency Response . 30 Hz to 25,000 Hz (+ 3 dB) at
7-1/2 ips using Akai LN-150-7 tape.
30 Hz to 19,000 Hz, (+ 3 dB) at
3-3/4 ips using Akai LN-150-7 tape
hannel stereo/monaural
Reel Capacity .
Tape Speed .
Wow and Flutter
Distortion .......... Less than 0.5% (1,000 Hz “0” VU)
at 7-1/2 ips
Signal-to-Noise
Ria an secs entr Better than 57 dB (measured via tape
with peak recording level of * 6 VU)
Erase Ratio......... Better than 70 dB
Bias Frequency ...... 100 kHz
Had. N OO (3): One GX playback, one GX record-
ing, and one erase head
Motors N E (3): One AC servo motor for capstan
drive, two eddy current motors
for reel drive.
Fast Forward and
Rewind Time... ... 120 seconds using a 2,400 ft. tape
Output Jacks ....... Line (2): 0.775V (0 VU)
Phone (1): 30 mV/8 ohms
Input Jacks... a.. Microphone (2): 0.25mV
Line (2): 70mV w
Din Fath... cose 0.5V
Semi Conductors. . . . . Transistors 50, Diodes 57
Power Requirements . USA and CANADA Models: 120V,
60 Hz only
E Models: 220V, 50 Hz only
Other Models: 100V to 240V,
50/60 Hz (Switchable)
Power Consumption .. 100 W (CEE), 90W (CSA)
Dimensions ......... 465(H) x 440(W) x 240(D)mm
(183 x 17.4 x 9.4")
Nello osi aaciut 19 kg (41.8 Ibs)
* For improvement purposes, specifications and design are subject
to change without notice.

Akai GX-630D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	up to 10.5 inch reel
Wow and Flutter	0.06% (7 1⁄2 ips)
Signal to Noise Ratio	58dB
Output	0.775V
Type	Reel-to-reel tape deck
Heads	3 (erase, record, playback)
Motor	2 x reel, 1 x capstan
Tape Speeds	3 3⁄4 ips, 7 1⁄2 ips
