[8]

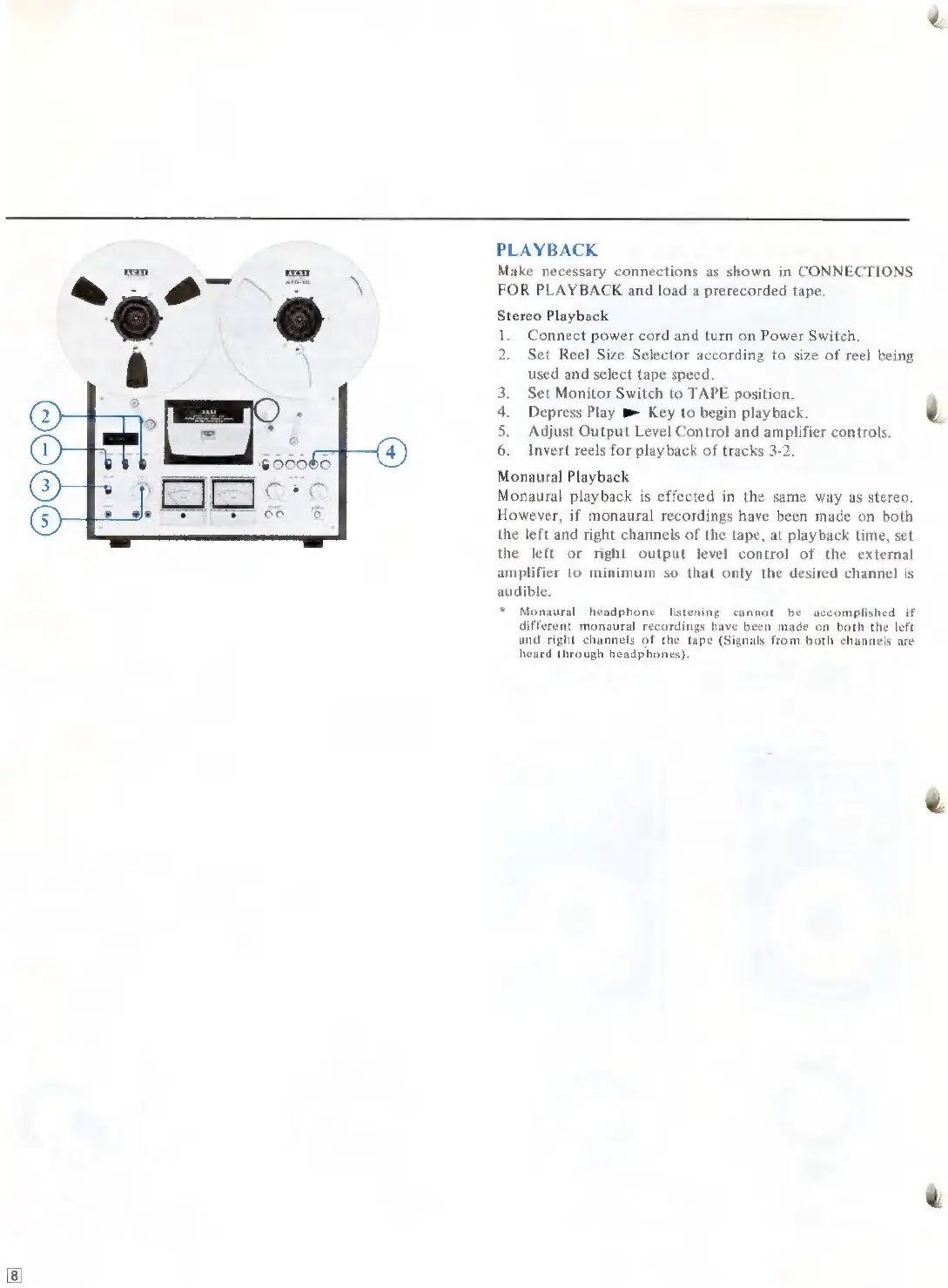

PLAYBACK
Make
necessary
connections
as
shown
in
CONNECTIONS
FOR
PLAYBACK
and
load
a
prerecorded
tape.
Stereo
Playback
l.
Connect
power
cord
and
turn
on
Power
Switch.
2,
Set
Reel
Size
Selector
according
to
size
of
reel
being
used
and
select
tape
speed
3.
Set
Monitor
Switch
to
TAPE
position.
4.
Depress
Play
B
Key
to
begin
playback.
5.
Adjust
Output
Level
Control
and
amplifier
controls,
6.
Invert
reels
for
playback
of
tracks
3-2.
Monaural
Playback
Monaural
playback
is
effected
in
the
same
way
as
stereo.
However,
if
monaural
recordings
have
been
made
on
both
the
left
and
right
channels
of
the
tape,
at
playback
time,
set
the
left
or
right
output
level
control
of
the
external
amplifier
to
minimum
so
that
only
the
desired
channel
is
audible.
Monaural
headphone
listening
cannot
be
accomplished
if
different
monaural
recordings
have
been
made
on
both
the
left
and
right
channels
of
the
tape
(Signals
from
both
channels
are
heard
through
headphones)
