Akai GX-77

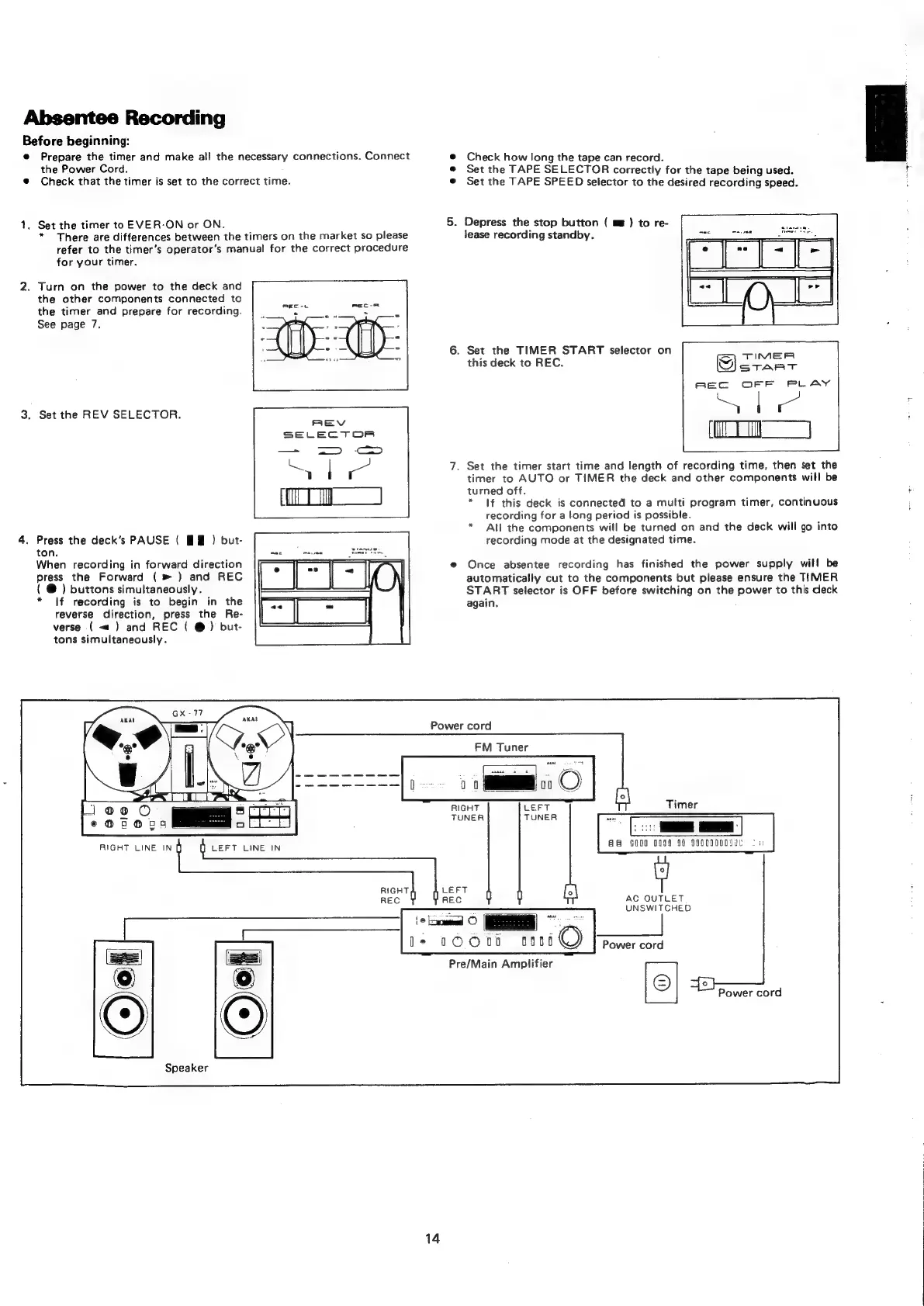

Absentee Recording
Before beginning:
@ Prepare the timer and make all the necessary connections. Connect
the Power Cord.
@ Check that the timer is set to the correct time.
1. Set the timer to EVER-ON or ON.
* There are differences between the timers on the market so please
refer to the timer’s operator’s manual for the correct procedure
for your timer.
2. Turn on the power to the deck and
the other components connected to
the timer and prepare for recording.
See page 7.
3. Set the REV SELECTOR.
SELECTOR
4. Press the deck's PAUSE ( § § ) but-
ton.
When recording in forward direction
press the Forward ( » ) and REC
{ @ ) buttons simultaneously.
* If recording is to begin in the
reverse direction, press the Re-
verse ( <« ) and REC ( @) but-
tons simultaneously.
RIGHT LINE IN LEFT LINE IN
Speaker
@ Check how long the tape can record.
Set the TAPE SELECTOR correctly for the tape being used.
@ Set the TAPE SPEED selector to the desired recording speed.
5. Depress the stop button ( mm ) to re-
lease recording standby.
6. Set the TIMER START selector on
this deck to REC. Een
REC OFF PLAY
Shae
(i)
7. Set the timer start time and length of recording time, then set the
timer to AUTO or TIMER the deck and other components will be
turned off.
* If this deck is connected to a multi program timer, continuous
recording for a long period is possible.
* All the components will be turned on and the deck will go into
recording mode at the designated time.
@ Once absentee recording has finished the power supply will be
automatically cut to the components but please ensure the TIMER
START selector is OFF before switching on the power to this deck
again.
Power cord
86 GCOO0 9000 00 FN00N00dIVE
AC OUTLET
UNSWITCHED
‘*lomd © |e
le
14
10000 noi © Power cord
Pre/Main Amplifier
Power cord
