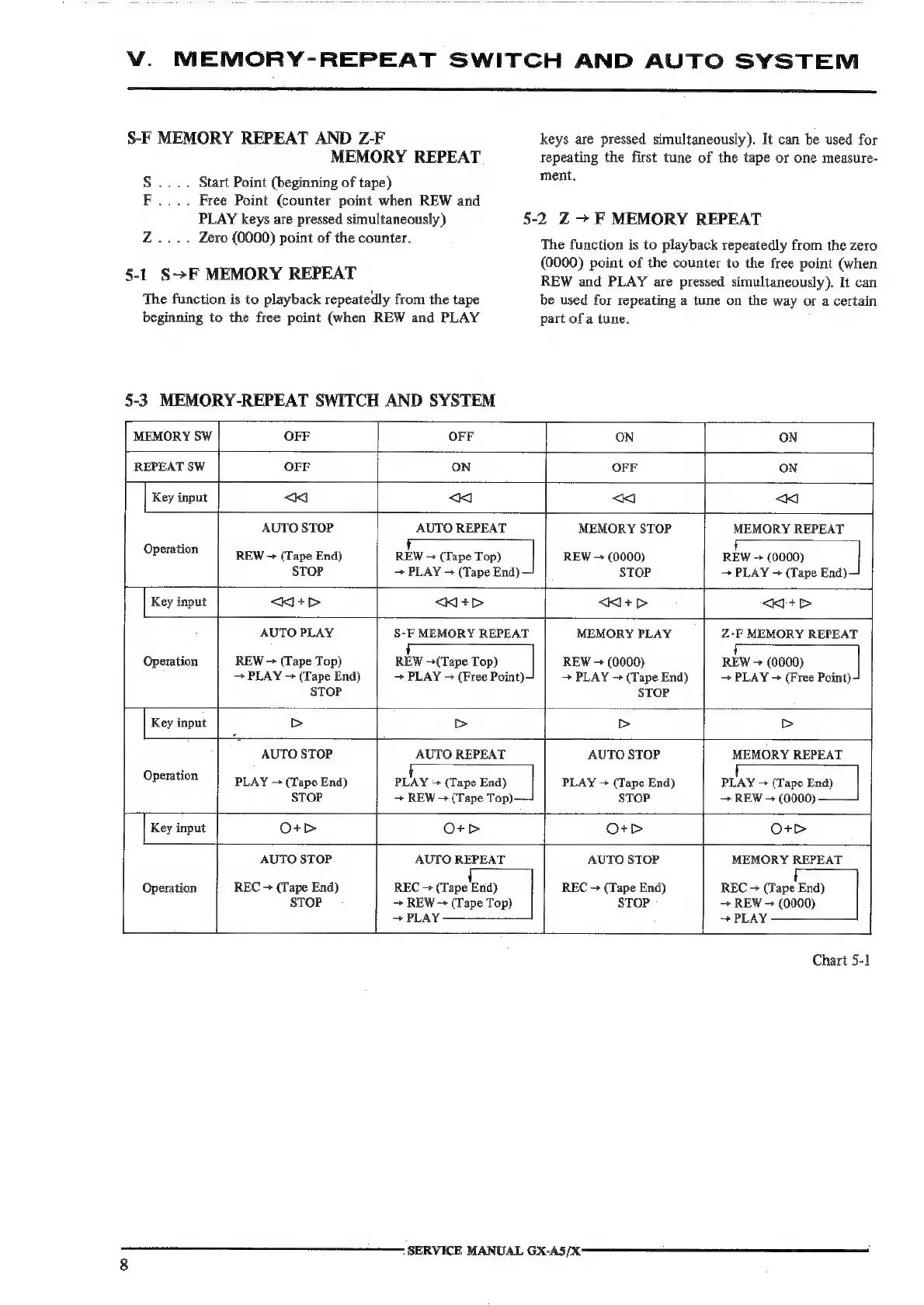

V. MEMORY-REPEAT SWITCH AND AUTO SYSTEM
S-F MEMORY REPEAT AND Z-F
S .... Start Point (beginning of tape)
MEMORY REPEAT
F.... Free Point (counter point when REW and
PLAY keys are pressed simultaneously)
. Zero (0000) point of the counter.
5-1 SF MEMORY REPEAT
The function is to playback repeatedly from the tape
beginning to the free point (when REW and PLAY
5-3 MEMORY-REPEAT SWITCH AND SYSTEM
keys are pressed simultaneously). It can be used for
repeating the first tune of the tape or one measure-
ment.
5-2. Z > F MEMORY REPEAT
The function is to playback repeatedly from the zero
(0000) point of the counter to the free point (when
REW and PLAY are pressed simultaneously). It can
be used for repeating a tune on the way or a certain
part of a tune.
SERVICE MANUAL GX-A5/X'
MEMORY SW OFF OFF ON ON
REPEAT SW OFF ON OFF ON
Key input <a <I <a <Kl
AUTO STOP AUTO REPEAT MEMORY STOP MEMORY REPEAT
Operation
REW
~
(Tape
End)
REW
~+
(Tape
Top)
REW
~
(0000)
REW
+
(0000)
STOP - PLAY + (Tape End) STOP + PLAY + (Tape End)
Key input <KI+D> <KI+> <Kl+ D> <Kl+>
AUTO PLAY S-F MEMORY REPEAT MEMORY PLAY Z+F MEMORY REPEAT
Operation REW + (Tape Top) REW +(Tape Top) REW - (0000) REW ~ (0000)
+ PLAY ~ (Tape End) | + PLAY (Free Point) | + PLAY (Tape End) | -+ PLAY — (Free Point) J
STOP STOP
Key input > > > >
AUTO STOP AUTO REPEAT AUTO STOP MEMORY REPEAT
Operation PLAY = (Tape End) PLAY ~ (Tape End) PLAY = (Tape End) PLAY ~ (Tape End)
STOP + REW + (Tape Top) STOP + REW + (0000)
Key input O+rD> Ore Ore Or>
AUTO STOP AUTO REPEAT AUTO STOP MEMORY REPEAT
Operation REC ~ (Tape End) REC + (Tape End) REC + (Tape End) REC = (Tape End)
STOP + REW~ (Tape Top) STOP + REW ~> (0000)
~+
PLAY
———_|
+
PLAY
Chart 5-1
