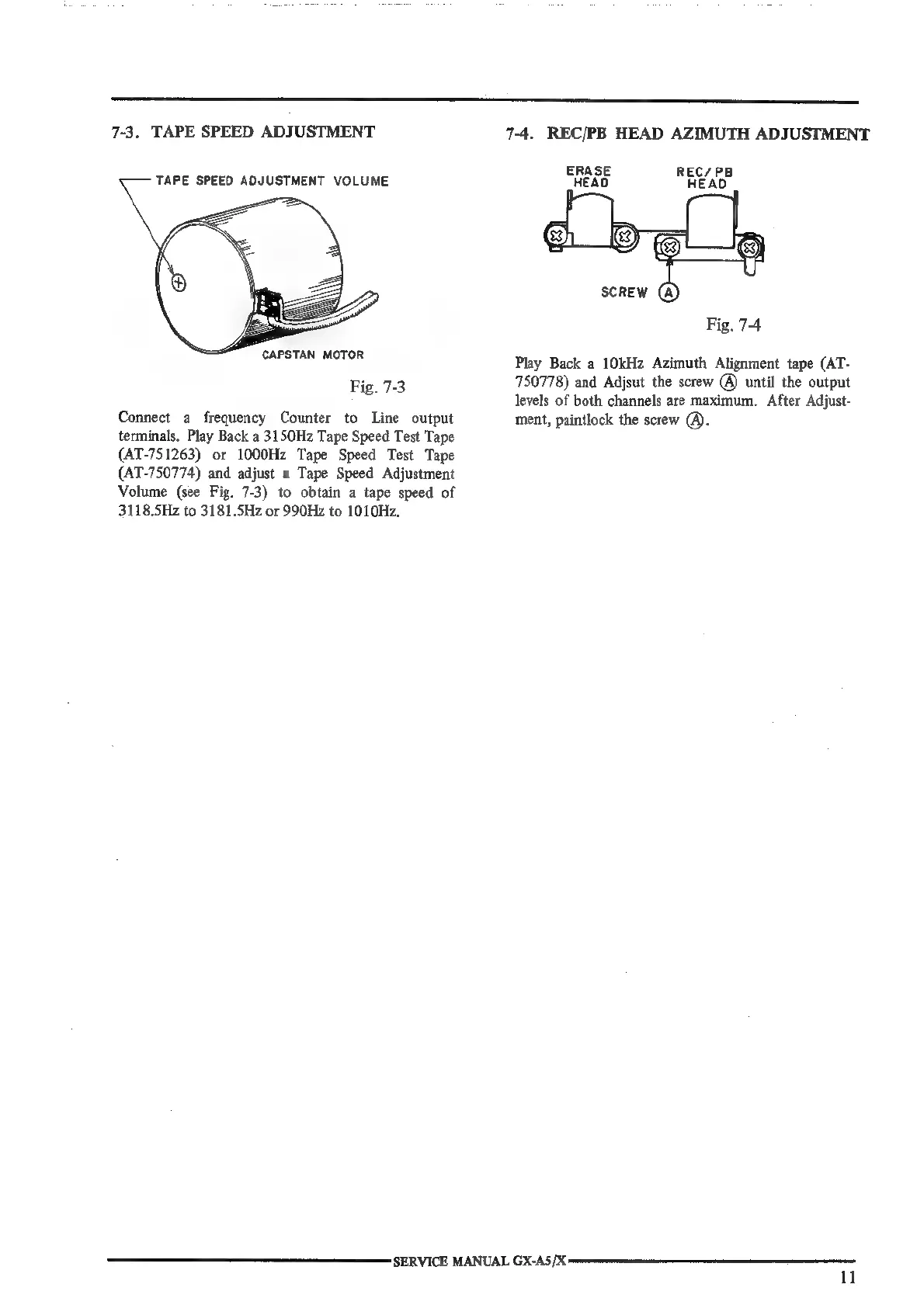

7-3. TAPE SPEED ADJUSTMENT
TAPE SPEED ADJUSTMENT VOLUME
CAPSTAN MOTOR
Fig. 7-3
Connect a frequency Counter to Line output
terminals. Play Back a 3150Hz Tape Speed Test Tape
(AT-751263) or 1000Hz Tape Speed Test Tape
(AT-750774) and adjust a Tape Speed Adjustment
Volume (see Fig. 7-3) to obtain a tape speed of
3118.5Hz to 3181.5Hz or 990Hz to 1010Hz.
‘SERVICE MANUAL GX-A5/X
7-4. REC/PB HEAD AZIMUTH ADJUSTMENT
Fig. 7-4
Play Back a 10kHz Azimuth Alignment tape (AT-
750778) and Adjsut the screw @) until the output
levels of both channels are maximum. After Adjust-
ment, paintlock the screw @).
