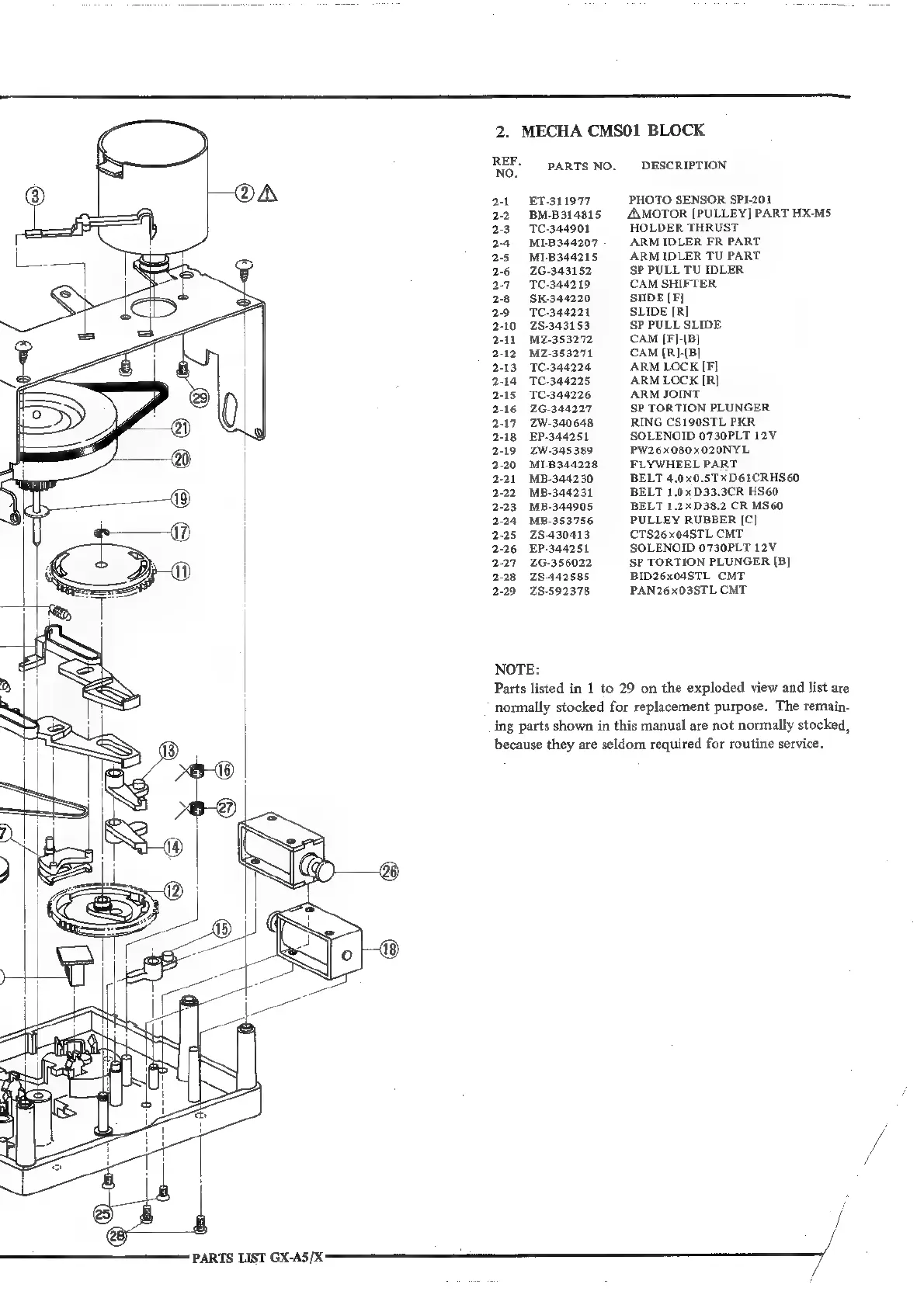

Akai GX-A5 - Page 20

2.
REF.
NO.
2-1
2-2
23
24
25
2-6
27
2-8
29
2-10
24d
2-12
2-13
2-14
2-415
2-16
217
2-18
219
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2.27
2-28
2-29
PARTS NO.
ET-311977
BM-B314815
TC-344901
MI-B344207
MI-B344215
ZG-343152
TC-344219
SK-344220
TC-344221
ZS-343153
MZ-353272
MZ-353271
TC-344224
TC-344225
TC-344226
2G-344227
ZW-340648
EP-344251
ZW-345389
MI-B344228
MB-344230
MB-344231
MB-344905
MB-353756
ZS-430413
EP-344251
ZG-356022
ZS-442585
ZS-592378
NOTE:
Parts listed in 1 to 29 on the exploded view and list are
normally stocked for replacement purpose. The remain-
ing parts shown in this manual are not normally stocked,
because they are seldom required for routine service.
MECHA CMS01 BLOCK
DESCRIPTION
PHOTO SENSOR SPI-201
AXMOTOR [PULLEY] PART HX-M5
HOLDER THRUST
ARM IDLER FR PART
ARM IDLER TU PART
SP PULL TU IDLER
CAM SHIFTER
SIDE [F]
SLIDE [R]
SP PULL SLIDE
CAM [F]-[B]
CAM (RI-[B}
ARM LOCK [F]
ARM LOCK [R}
ARM JOINT
SP TORTION PLUNGER
RING CS190STL PKR
SOLENOID 0730PLT 12V
PW26x080x020NYL
FLYWHEEL PART
BELT 4.0x0.5TXD61CRHS60
BELT 1.0xD33.3CR HS60
BELT 1.2xD38.2 CR MS60
PULLEY RUBBER [C]
CTS26x04STL CMT
SOLENOID 0730PLT 12V
SP TORTION PLUNGER [B]
BID26x04STL CMT
PAN26x03STL CMT
