SCENARIO 2
EXTERNAL SOUND MODULE
6v
POWER
ADAPTER
(optional)
1. Plug a 6v power adapter into a power outlet and connect it to the MPD24.
2. Connect a 5-pin MIDI cable from the MPD24’s MIDI OUT to the MIDI IN of an external
sound module.
IMPORTANT:
The operation of the MIDI OUT port changes depending on whether or not a
USB cable is connected to the MPD24.
• USB cable connected:
MIDI data from your computer is passed to the MIDI OUT port. When a
USB cable is connected, you should activate "MIDI echo" in your
sequencer if you want the MPD24 to control another external device.
• USB cable not connected:
Whatever you play on the MPD24 is sent to the MIDI OUT port.
Note: If you have another device connected to the MPD24's MIDI IN port,
that device's MIDI information will be ignored.

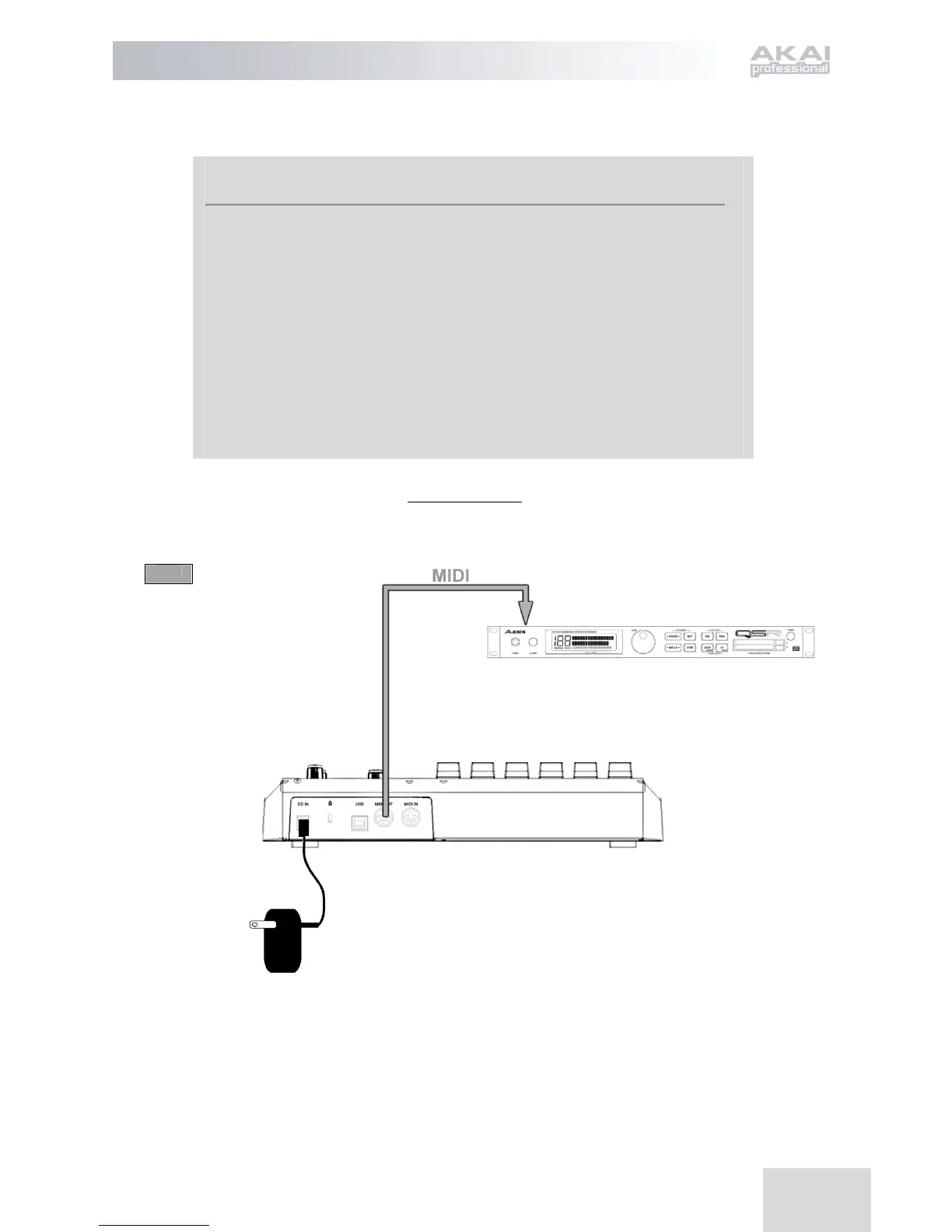

MIDI from MPD24 to
external sound module
connected to MIDI OUT
port of MPD24
