4

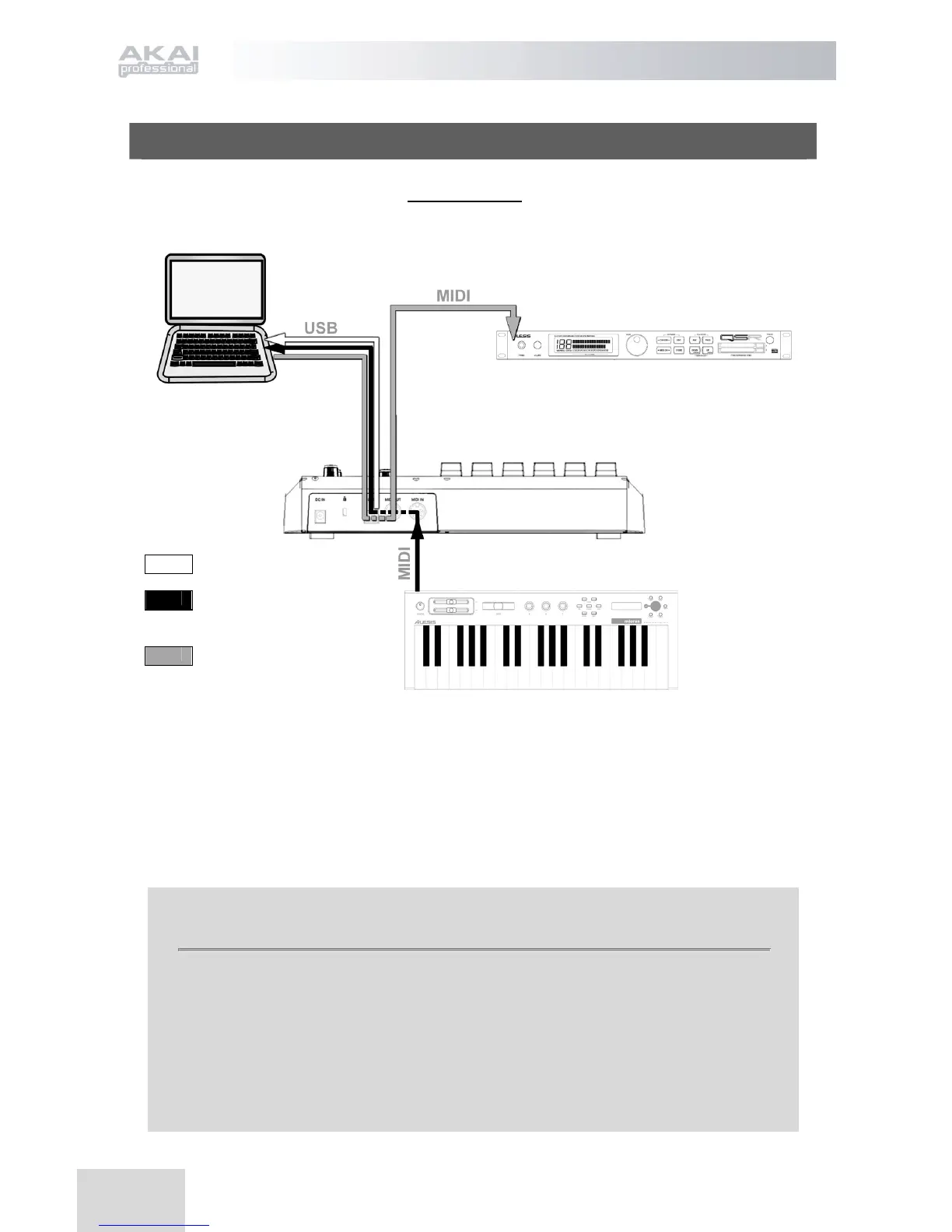

HOOKUP DIAGRAM
SCENARIO 1
COMPUTER
EXTERNAL SOUND MODULE
EXTERNAL MIDI DEVICE
1. Connect a USB cable from your computer to the MPD24.
2. If you would like to use an external sound module, connect a 5-pin MIDI cable from the MIDI OUT
of the MPD24 to the MIDI IN of the external device.
3. If you would like to use another MIDI controller in your setup, connect a 5-pin MIDI cable from the
MIDI OUT of the external MIDI device to the MIDI IN of the MPD24.
A NOTE ABOUT USING THE MPD24 WITH SOFTWARE:
1. Make sure that the MPD24 and all external devices are connected and that the USB
cable is connected to your computer before opening any software applications on your
computer with which you might want to use the MPD24. If the unit is not plugged in
before, your software application might not recognize the MPD24 as an available
device.
2. In your software application, you will need to set the MPD24 as a default MIDI input
device. This is usually done in the MIDI section of the Preferences menu.
MIDI from MPD24 to
computer
MIDI from external MIDI
device connected to
MIDI IN port of MPD24
MIDI from computer to
external sound module
connected to MIDI OUT
port of MPD24
