Akai MPD232 Service Manual

Midi Loopback port selection

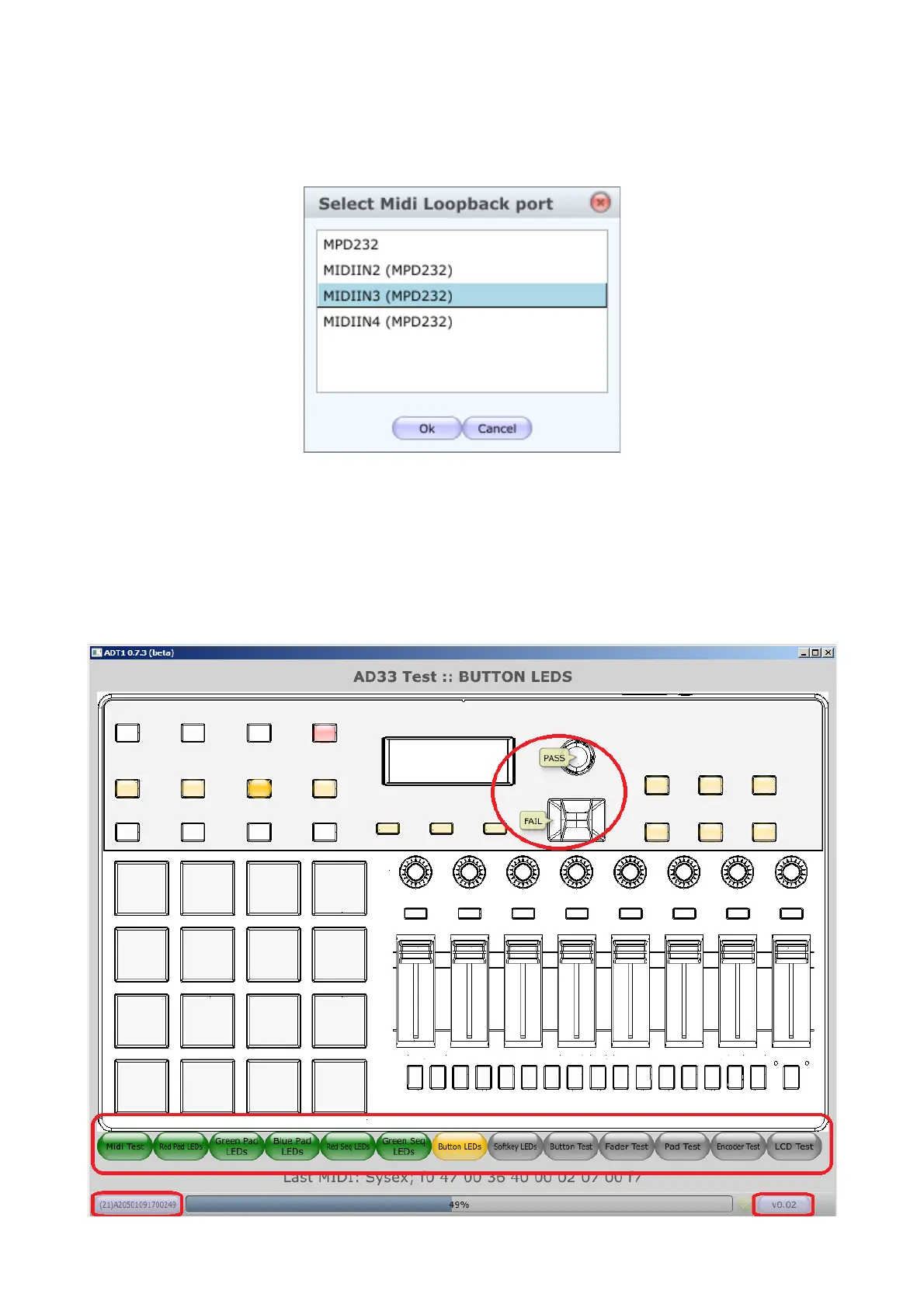

The next Chooser window will allow the Tester to select the port used for the MIDI
loopback test.
Select the correct port and click “OK”. This selection should only need to be done once
when the program is first run.
User Interface
The Main Test screen has a representation of the Device Under Test.

Akai MPD232 Specifications

General

MIDI out	Yes
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Product color	Black
Number of drum pads	16
Number of mixer channels	8 channels
Current	1 A
Input voltage	6 V
Power supply type	USB
AC adapter included	No
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	422 mm
Height	48 mm
Weight	1900 g
