Akai MPD232 Service Manual

Button Test

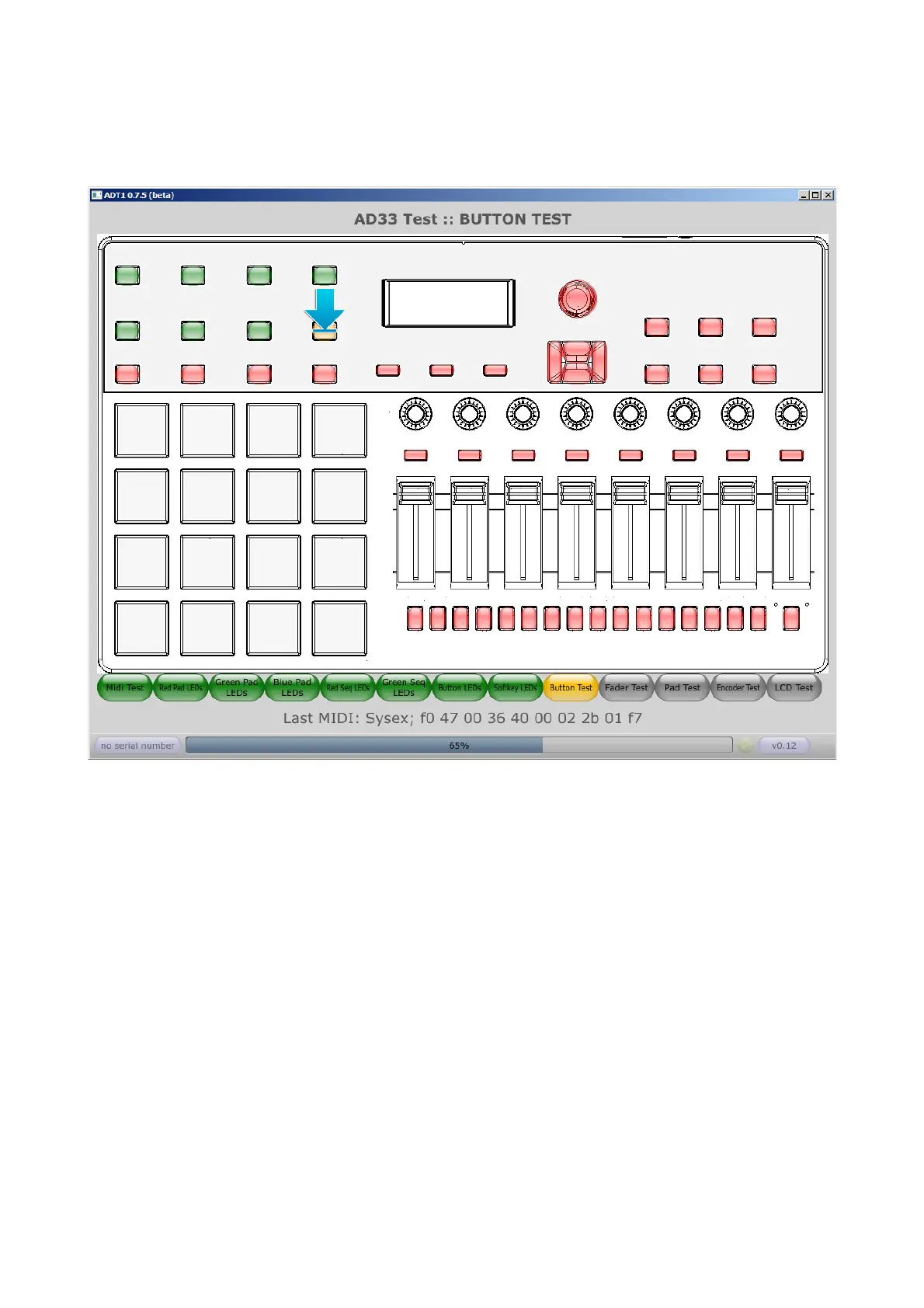

The ADT1 manufacturing Test application will indicate the buttons to be pressed. The
Tester should individually press and release the indicated buttons.
When the ADT1 manufacturing Test application detects that the button has been pressed it
will change the graphic symbol on the User Interface and, where possible, it will send a
message to light the LED that is associated with the button on the MPD232.
The buttons can be pressed in any order, but if ADT1 detects two button events at exactly
the same time it will assume that these buttons are shorted together and fail the test.

Akai MPD232 Specifications

General

MIDI out	Yes
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Product color	Black
Number of drum pads	16
Number of mixer channels	8 channels
Current	1 A
Input voltage	6 V
Power supply type	USB
AC adapter included	No
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	422 mm
Height	48 mm
Weight	1900 g
