Akai MPD232 Service Manual

Manufacturing Testing of MPD232 using ADT1 v0.7.5
3 March, 2015
This document is intended to describe the operation of the ADT1 Manufacturing Test
application for the Production Testing of MPD232.
Terms
MPD232: A USB Pad Controller. Also known as AD33.
ADT1: A Manufacturing Test application that runs on Windows computers.
Hardware setup

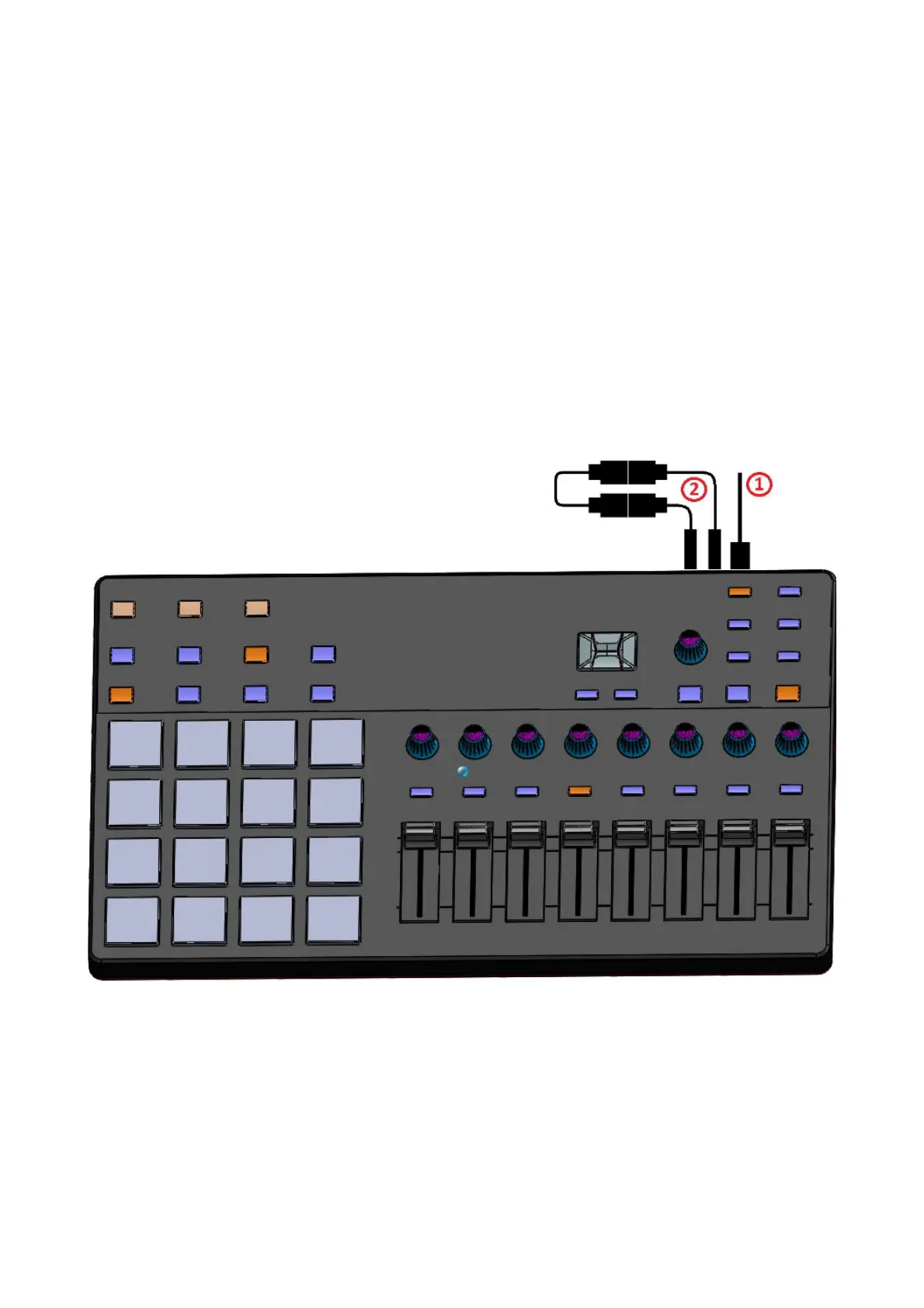

ADT1 expects the following connections to be made:
1. USB connection to Windows Computer running ADT1 Manufacturing Test
application.
2. MIDI IN connected to MIDI OUT for MIDI Loopback Test

Akai MPD232 Specifications

General

MIDI out	Yes
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Product color	Black
Number of drum pads	16
Number of mixer channels	8 channels
Current	1 A
Input voltage	6 V
Power supply type	USB
AC adapter included	No
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	422 mm
Height	48 mm
Weight	1900 g
