Akai MPD232

Technical Specification
Technical SpecificationTechnical Specification
Technical Specification

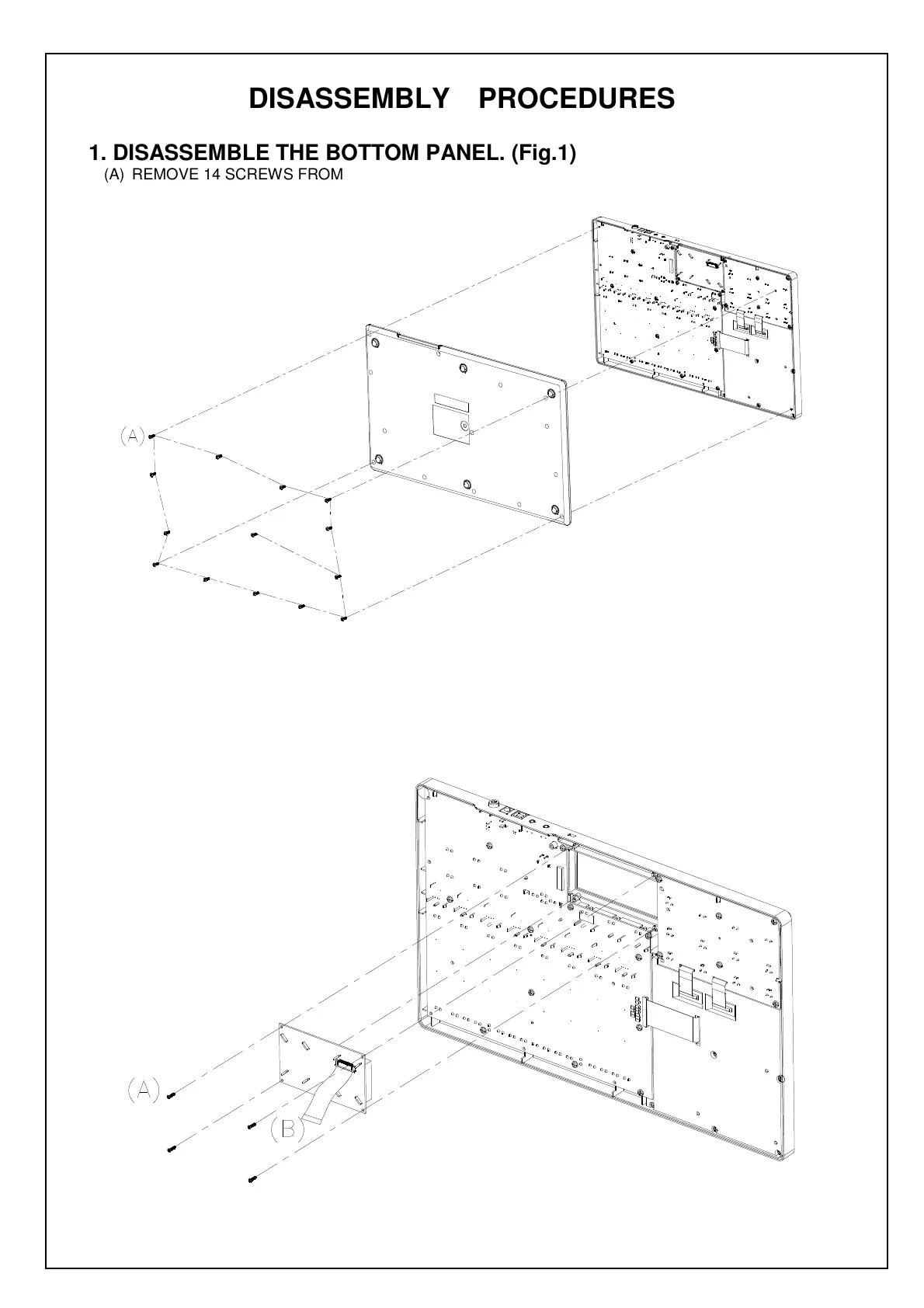

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE BOTTOM PANEL. (Fig.1)
(A) REMOVE 14 SCREWS FROM THE BOTTOM PANEL.
(Fig.1)
2. DISASSEMBLE THE LCM. (Fig.2)
(A) REMOVE 4 SCREWS FROM THE LCM.
(B) REMOVE 1 CABLES.
(Fig.2)
