2 Description
2.1 Introduction
Dear Customer:
Thank you for purchasing an AKG
product. This Manual contains important
instructions for setting up and operating
your equipment. Please take a few
minutes to read the instructions below
carefully before operating the equip-
ment. Please keep the Manual for future
reference. Have fun and impress your
audience!
2.2 Unpacking
Check that the package contains all the
parts listed above. If anything is missing,
please contact your AKG dealer.
2.3 Optional Accessories
CU 40 charger
2.4 Description
The MP 40
micropen
is a miniature
transmitter with a detachable C 407
omnidirectional condenser microphone.
The transmitter has been specifically
designed for speech reinforcement use
in conjunction with WMS 40 Series
receivers from AKG.
The MP 40
micropen
operates on a
single fixed, quartz stabilized carrier fre-
quency in the 710 MHz to 865 MHz UHF
band and uses a dipole antenna
integrated in the transmitter body.
The microphone is nested in a compart-
ment at the upper end of the transmitter.
The microphone is fitted with a fixing
clamp and connected to the transmitter
by a cable approx. 8 inches (20 cm) long.
You can detach the microphone from the
transmitter and clamp the microphone to
the talker's clothes.
The pen-style clip on the rear of the
transmitter allows you to secure the
transmitter, e.g., in a shirt pocket. The
color of the clip indicates the carrier fre-
quency of your transmitter. You can
replace the color code clip with the sup-
plied black replacement clip.
The supplied necklace cord allows you
to wear the transmitter around your
neck.
2.5 Controls (Refer to fig. 1)
1 ON/MUTE/OFF: This slide switch
provides three positions:
ON: Power to the transmitter is on.

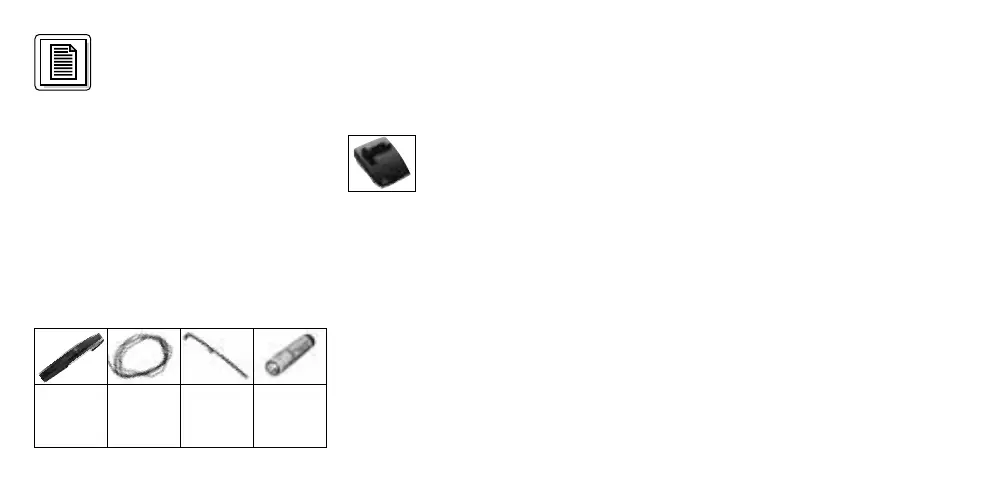

11
1 MP 40
micropen
1 neck-
lace cord
1 replace-
ment clip
(black)
1 AAA
size
bat
tery
