AKO AKO-D14601 - 6 Connectivity

D146H002 Ed.02
ESC
?
SET
ESC
?
SET
2121 xx xx
2222 xx xx2323 xx xx
CAMRegis
AKO-157xx
Other AKO equipment
with communication
CAMCtrl
AKO-156xx
AKO-80039
PC +
AKONet
+
RS-485
Tr-
Gnd
Tr+
AKO-5011
LAN
6.- Connectivity

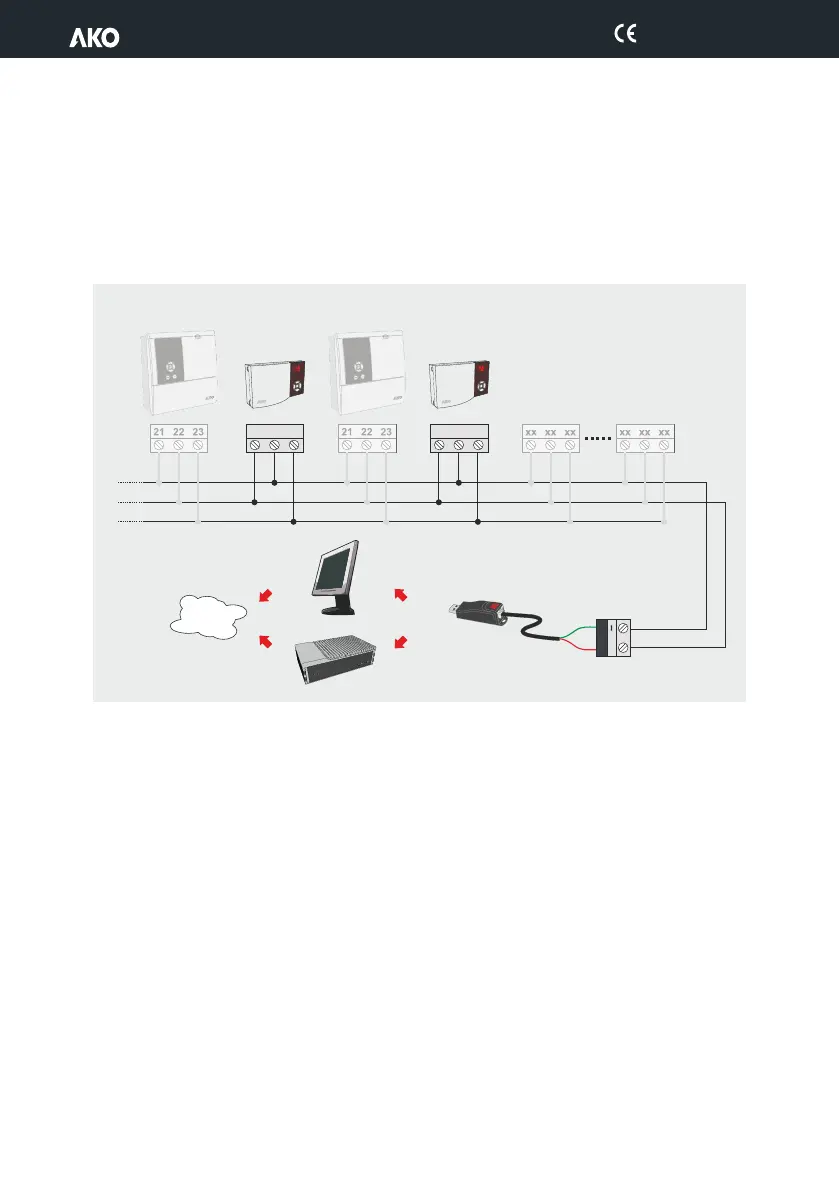

Models with communication capabilities (see table on page 6) have an RS485 (MODBUS) data connection port,
which allows users to manage them remotely via a PC with the AKONet programme or an AKO-5011 server.
A different address must be assigned to each unit on the same network. This address is defined by parameter P5.
Tr-
Tr+
