2.4.3 DC Power/Signal Cable (J1 Connector)
This 29 pin connector provides a connection point for power as well as signals to/from the vehicle. The recommended connector
is a Deutsch part number HDP26-24-29SE. The wires are best crimped in the pins although careful soldering is possible. A crimping
tool is available from Ladd Industries part number HDT-48-00 (AKRON #773426). Please refer to Table 2-3 and Figure 2-3 for pin-out
information. NOTE: For ease of installation, a connector kit including connector, pins, and sealing plugs (for unused pins) is available
as part number 121721 from Akron Brass. The Universal II can also be ordered with this mating connector kit.

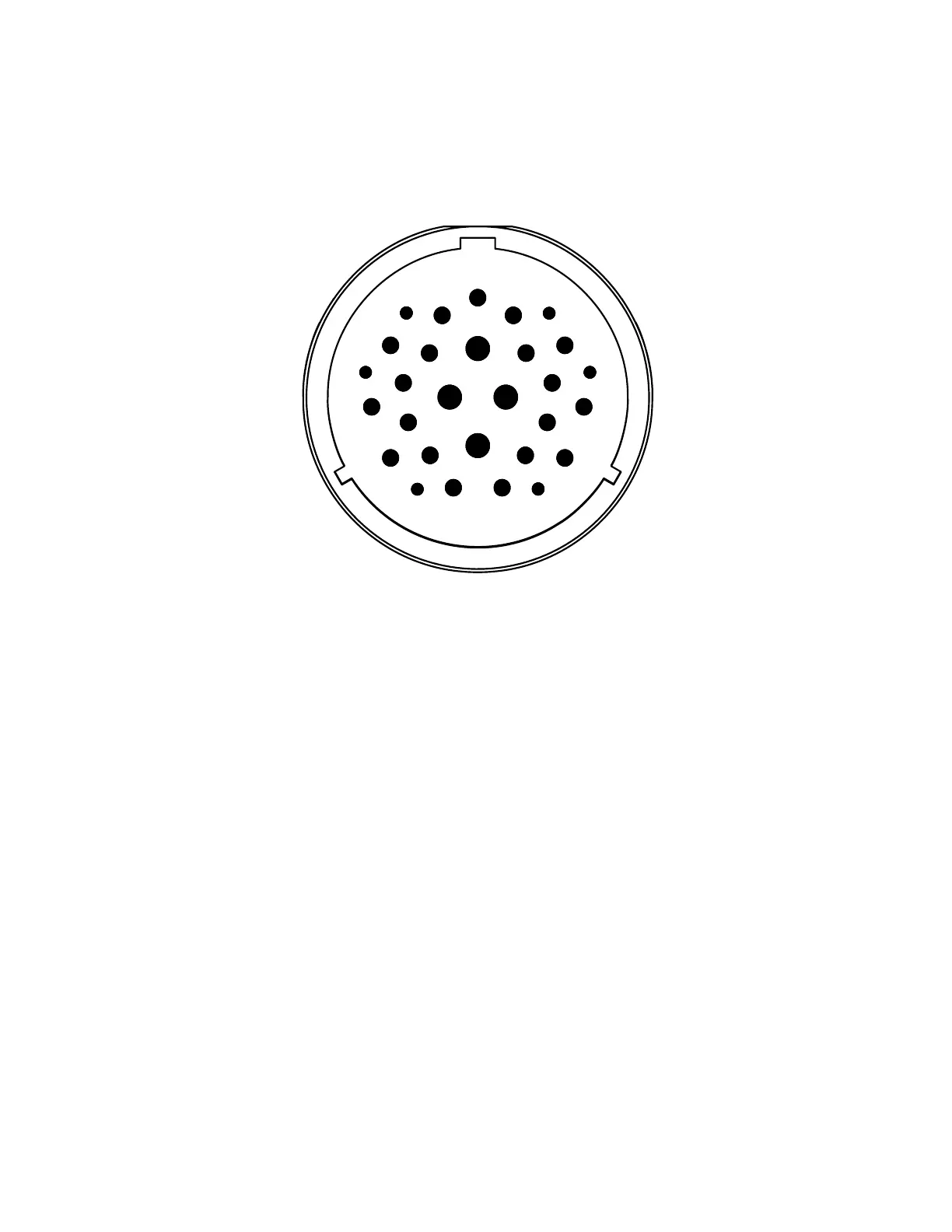

Figure 2-3 DC Power/Signal Connector (Looking into Universal II)
7.50"
4.0"
UNIVERSAL CONTROL II
STYLE 6032
12/24 VOLTS DC
AKRON BRASS COMPANY
WOOSTER, OHIO
www.akronbrass.com
A
B
C
D
E
F
G
H
J
K
L
M
N
P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Pin 1 - Vehicle Battery +
Pin 2 - Vehicle Battery -
Pin 3 - Aux. Battery +
Pin 4 - Aux. Battery -
Pin 5 - H-Bridge
Pin 6 - Axis #5
Pin 7 - Output #1
Pin 8 - Output #2
Pin 9 - Output #3
Pin 10 - Bi-stable Relay - COM
Pin 11 - Contact Output - N.O.
Pin 12 - (Form C) - N.C.
Pin 13 - Switch Input #1
Pin 14 - Switch Input #2
Pin 15 - Switch Input #3
Pin 16 - Switch Input #4
Pin 17 - Switch Input #5
Pin 18 - Switch Input #6
Pin 19 - Switch Input #7
Pin 20 - Switch Input #8
Pin 21 - Switch Input #9
Pin 22 - Aux. Power (1 Amp)
Pin 23 - Data + Vehicle
Pin 24 - Data - Can
Pin 25 - Common (Ground)
Pin 26 - Data + Proprietary
Pin 27 - Data - Can
Pin 28 - Data + VMUX-COM A
Pin 29 - Data - Network-COM B
Pin A - Analog Common
Pin B - Analog, Switch, PWM In #1
Pin C - Analog, Switch, PWM In #2
Pin D - Analog, Switch, PWM In #3
Pin E - Analog Exc.
Pin F - Appliance Loop - LIN
Pin G - H-Bridge
Pin H - Axis #1
Pin J - H-Bridge
Pin K - Axis #2
Pin L - H-Bridge
Pin M - Axis #3
Pin N - H-Bridge
Pin P - Axis #4
READ OPERATING INSTRUCTIONS BEFORE USE
NOTE:
THIS DETAIL IS FOR REFERENCE ONLY AND SHOULD NOT
BE USED TO CREATE THE GRAPHICS.
USE THE ADOBE ILLUSTRATOR FILE TO PRODUCE
THE ACTUAL SILKSCREEN GRAPHICS.
MATERIAL:
0.010 POLYCARBONATE WITH
3M 9471 PRESSURE SENSITIVE ADHESIVE.
