AKYAPAK ASM - Surrounding Conditions and Scaling

ASM
USER’S MANUEL
PAGE: 16
03.04-B1
7.9. SURROUNDING CONDITIONS
The respect to be careful;
The surroundings conditions are very important ,for the productivety of the machine.
a) The machine must work far-off the machine with rust and metal filings.
b) The place of the machine must be far –off the machine with the vibration.
c)If the machine does not fixed on the ground,the machine will goes at the front and
back.,and can move on their places.
d) At the some situations,the machine main lower parts must be isolated..
7.10. TO TAKE THE MACHINE ON THE SCALE
To work the machine productive and long time,must be assembly on the straight floor.
The scale must have the sensitiveness approximatly 0,04mm.
Short pause for rest the sensitiveness must be controling.
9 The first control must be make after 24 hour.
9 After the first control ,mountly and yearly the control must be reapeated.
8. TO OPERATE THE MACHINE
8.1. ELECTRICAL CONNECTIONS
The electrical connection must be repair only at the side qualifed electrician personel.
Before repairing the technical characteristics on the table must be controling.
Fit the energy cable into the hole auxiliary the machine.
. Assembly the energy cable in the clamps L1-L2-L3-N-PE inside the electrical panel.
8.2. CONNECTING THE CONTROL PANEL TO THE MACHINE
Take the control panel near the side machine and put the plug inside the socket.
8.3. CONTROLING THE DIRECTION OF THE ELECTRICAL ENGINE
ROTATION
After the electrical connections the electrician must control the rotation of the motor. Follow-up
the description below.
1-Take the circuit breaker in the position 1.
2-Control the emergency stop button is setting or not.
3-Press the start button.
4-Control the rotation of the rolls.

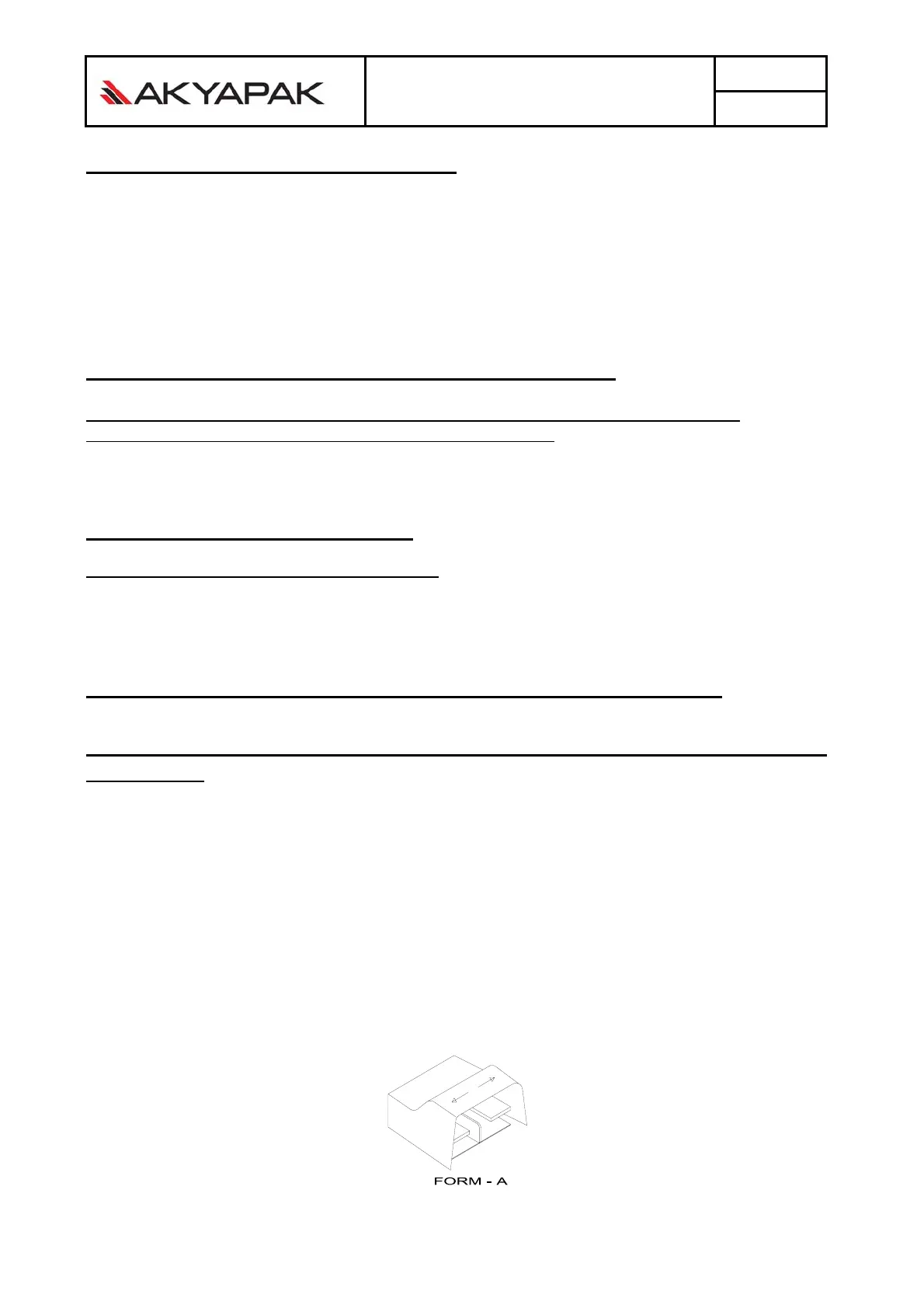

To press on the foot pedal,control the rotation arrow( picture A),If the arrow of the rotation is
correct,countinue to work .
If the rotation of the rolls are not like on the picture arrow,press the emergency stop button to
stop the machine. In this position,the machine working is loser.To correct this situation,must be
cutting the energy of the machine and change the phase R and S inside the socket.
