9.8. CONE BENDING
The cone bending operation,is prepare together with the cone bending system.Cone bending;the
most difficult operations within the bending shape.About this the operator must have too much
experience.
The operation is difficult because;
THE HALF USING FOR THE MACHINE NORMAL CAPACITY.
This mean;the machine , 2000 mm x 6 mm.the thickness sheet metal and the capacity of the
cone bending ,the half of the capacity can bend 1000 mm x 3 mm.

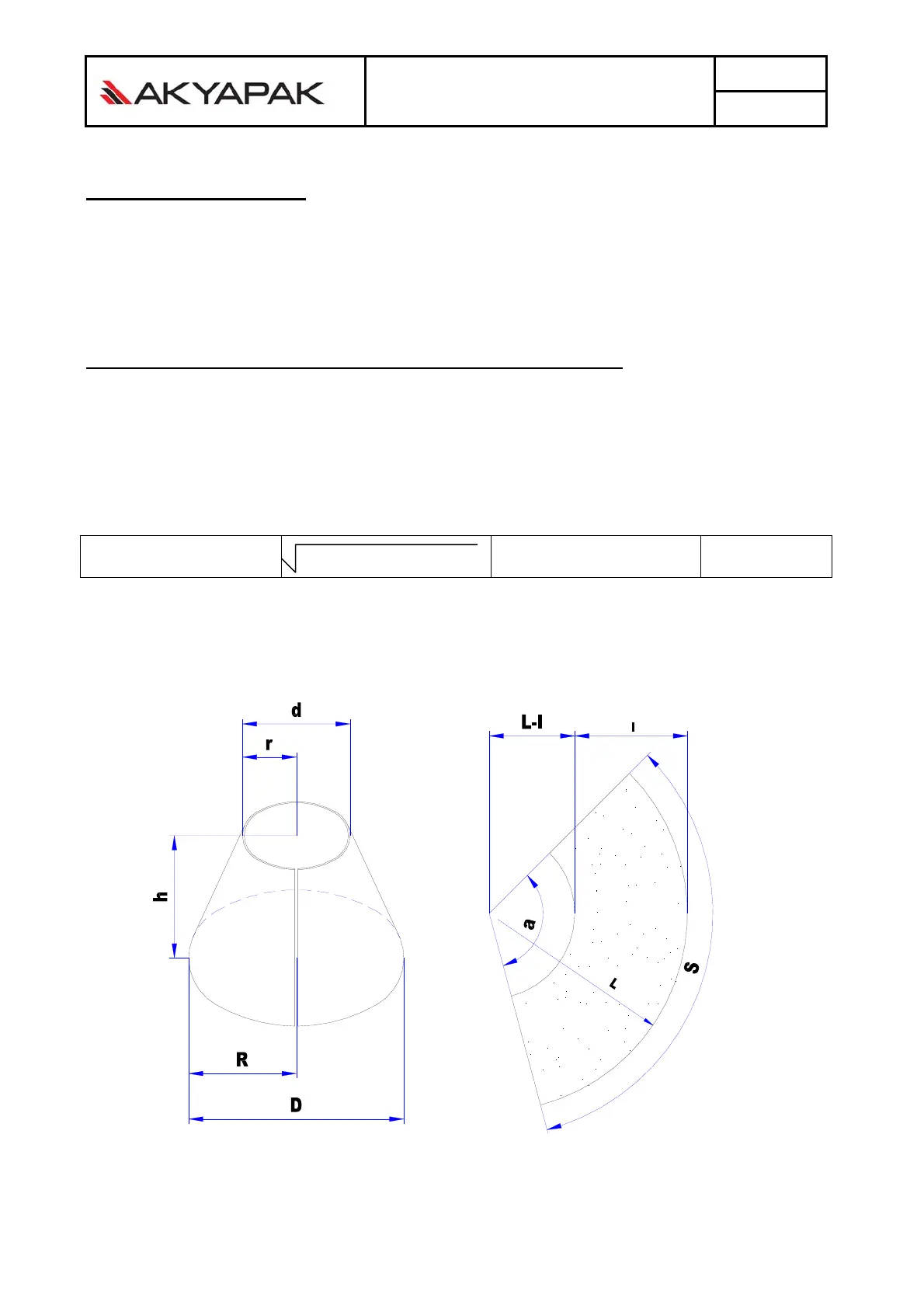

If you want make at the below illustration the end of the cone is cutting,you must prepare the
diameter and lenght the sheet metal development.
This development,is prepare at the following formula.
L = ( D x I ) / ( D - d )
I = h + ( R - r )
a = S x 180 x L / 3,14 S = D x 3,14
D, d, R, r the average diameters.
