6.3. Machine function
USING AREA: Sheet bending, Cone bending.
This machine is not suitable for the series production.
The shaft of the rolls, the width and the thickness of the bending material for the sylinder
bending machine producing at AKYAPAK, are given with the codes.
For
example ASM 140 - 20 / 4,5
ASM = Machine type
140 = Rolls shaft diameter
20 = The width of the bending material 20=2050 m.
4,5 = Min rolls shaft diameter ,1,5 much more thickness of the material in mm.
This values are valid for the material quality St-37 .
If the material flow limit and the quality is changeable,the value
should be changeable also.

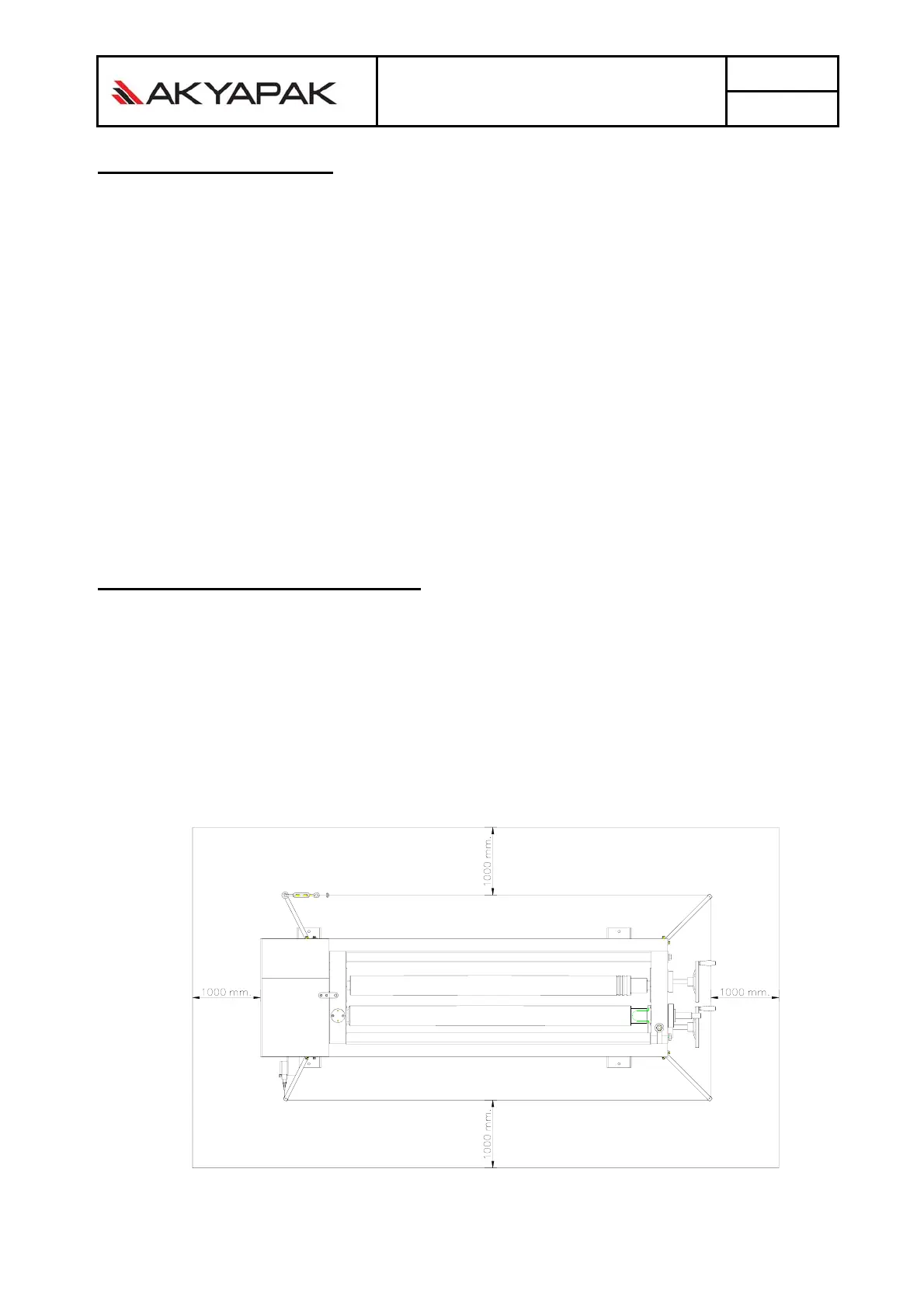

6.4. The machine setting plan
When the machine is assembly,be careful about the machine place and surroundings
factor necessity.
The place for assembly must be hard and strong.Check the weight machine for the safety
of the working.The machine must placed on the large area,for the periodical maintenance
of the machine. Nearby the machine minimum area must be 1 mt.
In addition for the material diameter must have the area up and nearby the machine.
Put into working place near the machine warning singboard.
