AL-KO 700e - Page 24

GB
Original operating instructions
24
AL-KO snow blowers

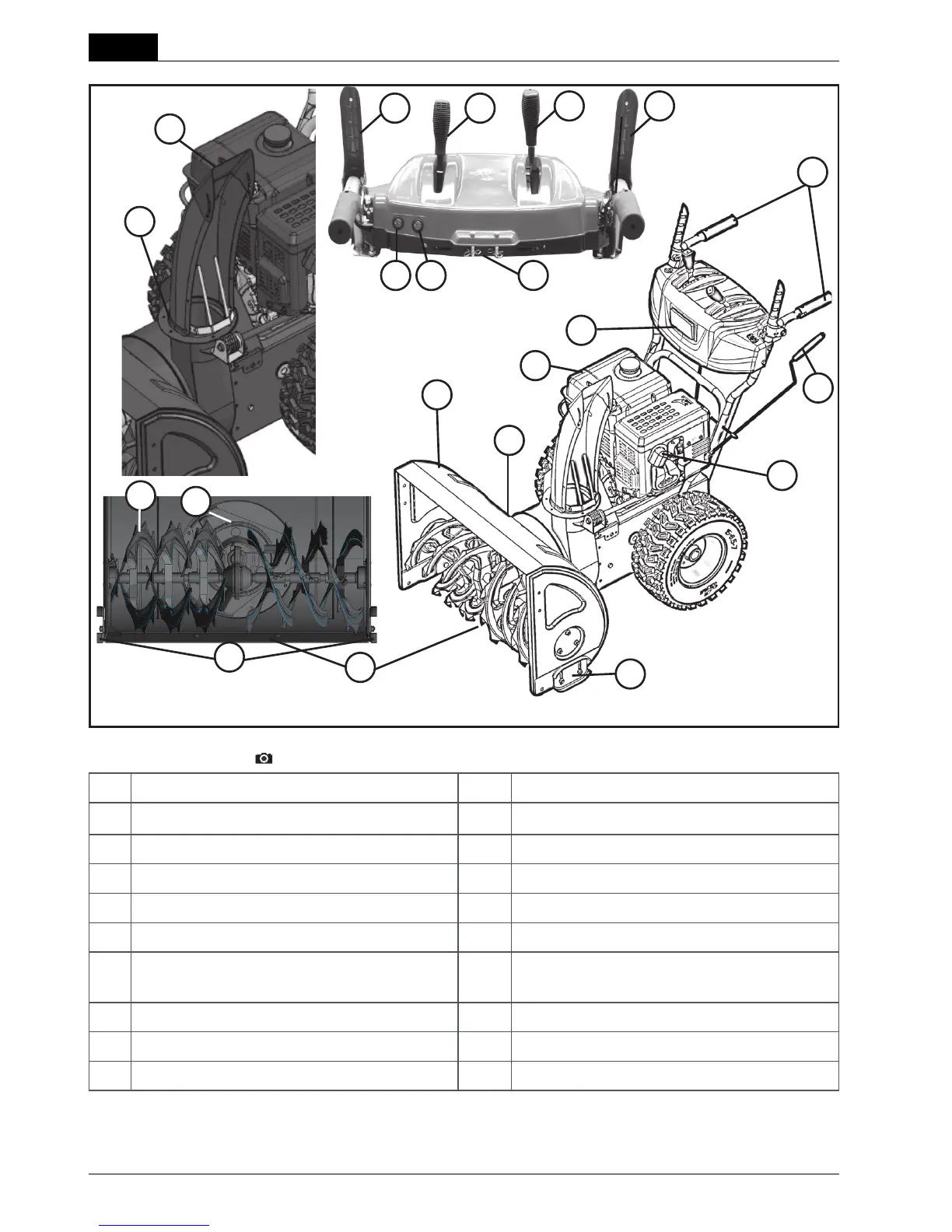

Product overview 700E ( A)
1 Heated grips 11 Headlight
2 Headlight switch 12 Hand crank for adjusting the discharge direction
3 Switch for heated grips 13 Engine
4 Spare shear pins 14 Shield
5 Auger drive clutch lever 15 Snow cleaning tool (attached to shield)
6 Lever for controlling the blowing height 16 Spark plug connector
7 Drive speed selection lever,
6 forward and 2 reverse speeds
17 Auger
8 Wheel drive clutch lever 18 Impeller
9 Blowingheightadjustment 19 Height-adjustable skid plates
10 Snow discharge chute with protective guard 20 Clearing plate
A
65
3
1
14
16
17
19
15
2
11
12
18
10
19
87
9
4
13
20
