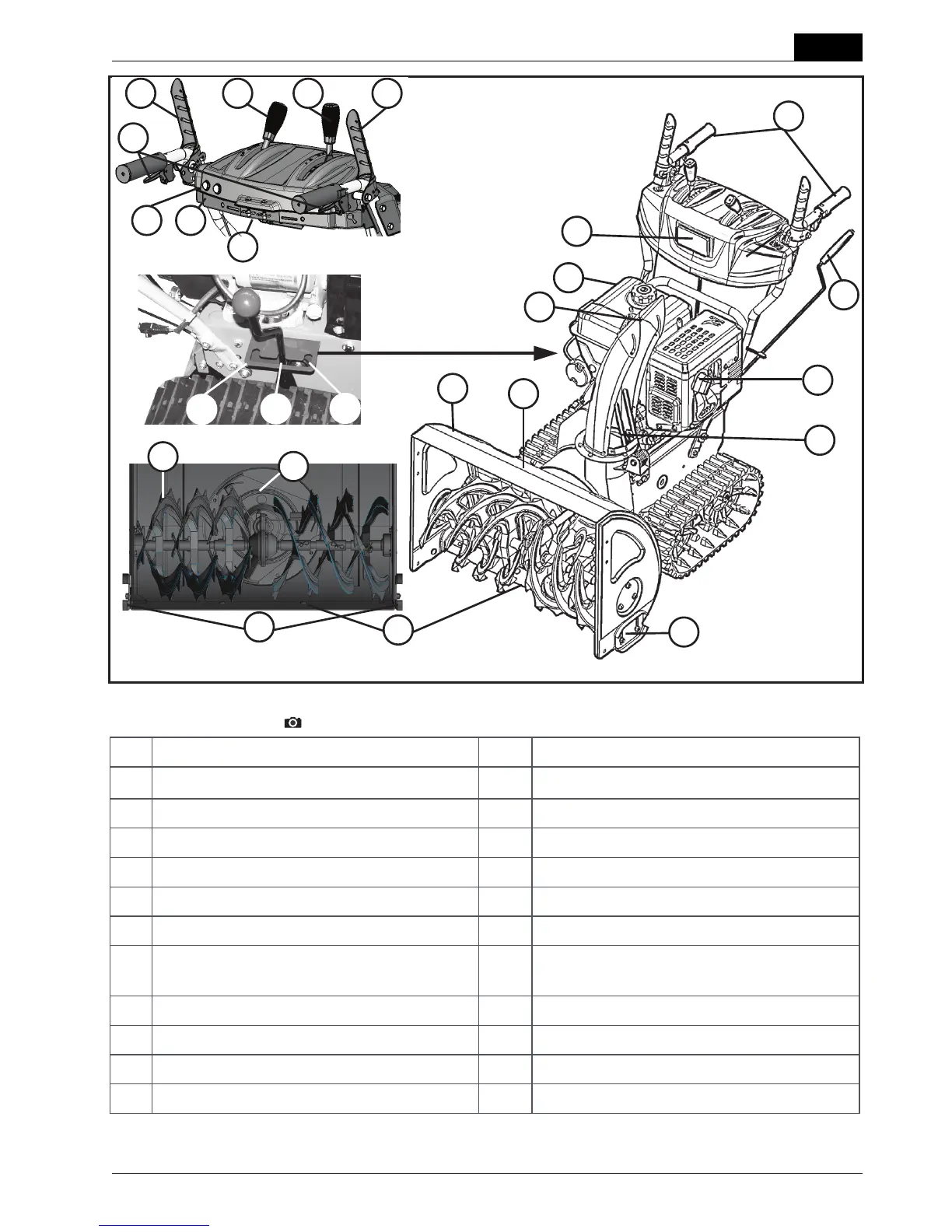

Product overview 760TE ( B)
1 Heated grips 13 Headlight
2 Headlight switch 14 Hand crank for adjusting the discharge direction
3 Switch for heated grips 15 Engine
4 Spare shear pins 16 Snowdischargeheightadjustment
5 Rocking lever for steering the caterpillar tread* 17 Spark plug connector
6 Auger drive clutch lever 18 Shield
7 Lever for controlling the snow discharge height 19 Snow cleaning tool (attached to shield)
8 Drive speed selection lever,
6 forward and 2 reverse speeds
20 Snow discharge chute with protective guard
9 Wheel drive clutch lever 21 Auger
10 "Packed snow" setting * 22 Impeller
11 "Normal"setting* 23 Height-adjustable skid plates
12 "Transport" setting * 24 Clearing plate
*760TE only
B
76
16
3
4
2
8
13
20
21
22
23
1
9
18
17
19
14
15
10
11
12
23
24
5
