Weight range ATC variant
2501 - 3000 kg E
3001 - 3,500 kg E
Twin axle (tandem) trailer
Weight range ATC variant
1300 - 1600 kg C
1601 - 2000 kg C
2001 - 2500 kg C
2501 - 2800 kg C
2801 - 3500 kg C
POSSIBLE MISUSE
The manufacturer accepts no liability for defects
or damages which have occurred as a result of
the following:
Non-observance of the safety instructions
contained in this documentation
Incorrect installation or modification
Improper use
PRODUCT DESCRIPTION
AL-KO Trailer Control (ATC) automatically reco-
gnises critical swinging movements, and brakes
the caravan as required. The system is mainten-
ance free. For the mounting, no decrease is ne-
cessary through an official vehicle inspection of-
fice.
Attachment variants
Variant A
ATC bolted to the Bowden cable adapter
bracket with retaining strap.
Variant B
ATC bolted to the Bowden cable adap-
ter bracket at the top with retaining strap.
ATC is rotated through 180°.
Variant C, tandem attachment
ATC bolted directly to the Bowden cable
adapter bracket (without retaining strap).
Variant D
ATC bolted directly to the Bowden cable
adapter bracket.
Variant E
ATC with adapter for thicker Bowden ca-
bles
Bolted directly to the Bowden cable adap-
ter bracket

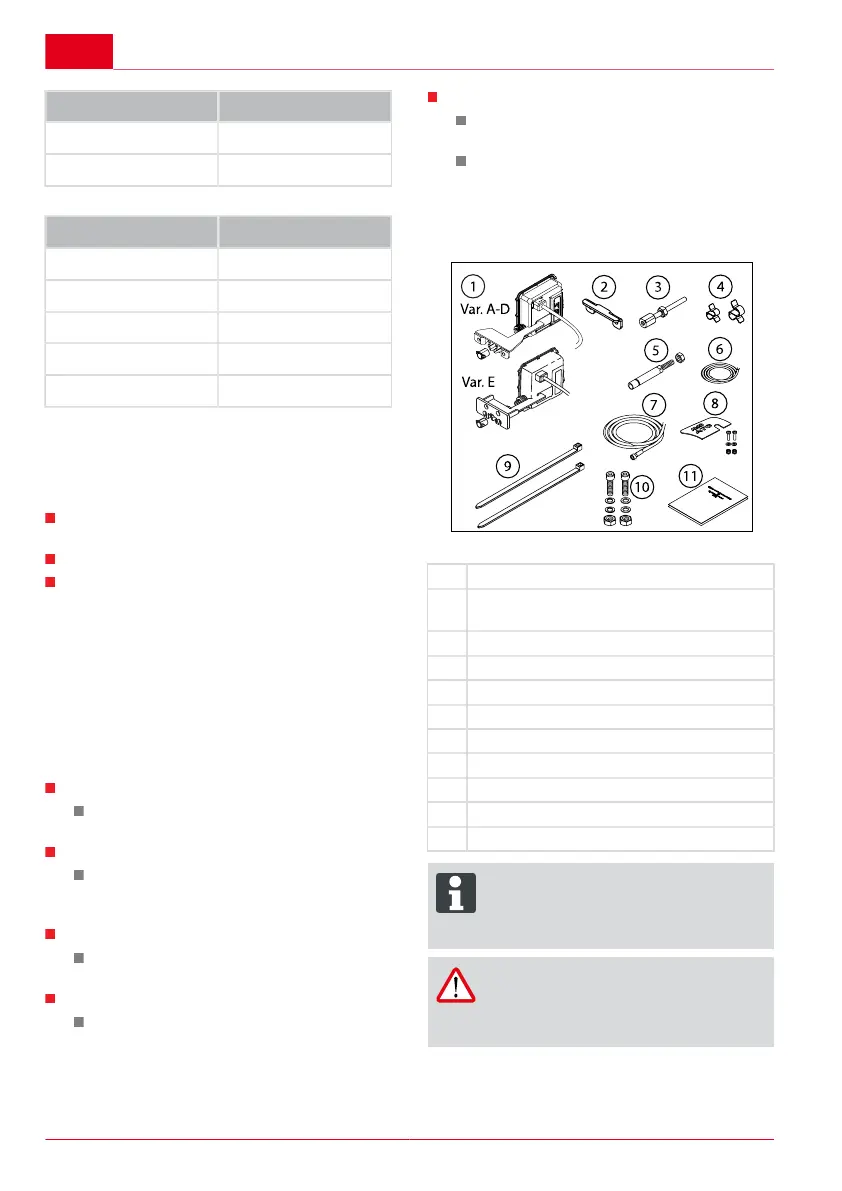

SCOPE OF SUPPLY
1 ATC (variant A-D or variant E)
2 Retaining strap (for variants A and B
only)
3 Guide pin M10 / M12
4 Clamps
5 Pushrod extension
6 Diode cable with LED
7 Power supply cable
8 LED holder
9 Cable ties
10 Fixing bolts
11 Product documentation
ADVICE
We recommend having all installation
work carried out only by competent spe-
cialist workshops or our AL-KO Service
Centres.
CAUTION!
Before installation, the brake system
must be adjusted by a specialist work-
shop.
12 1809253_a
