18

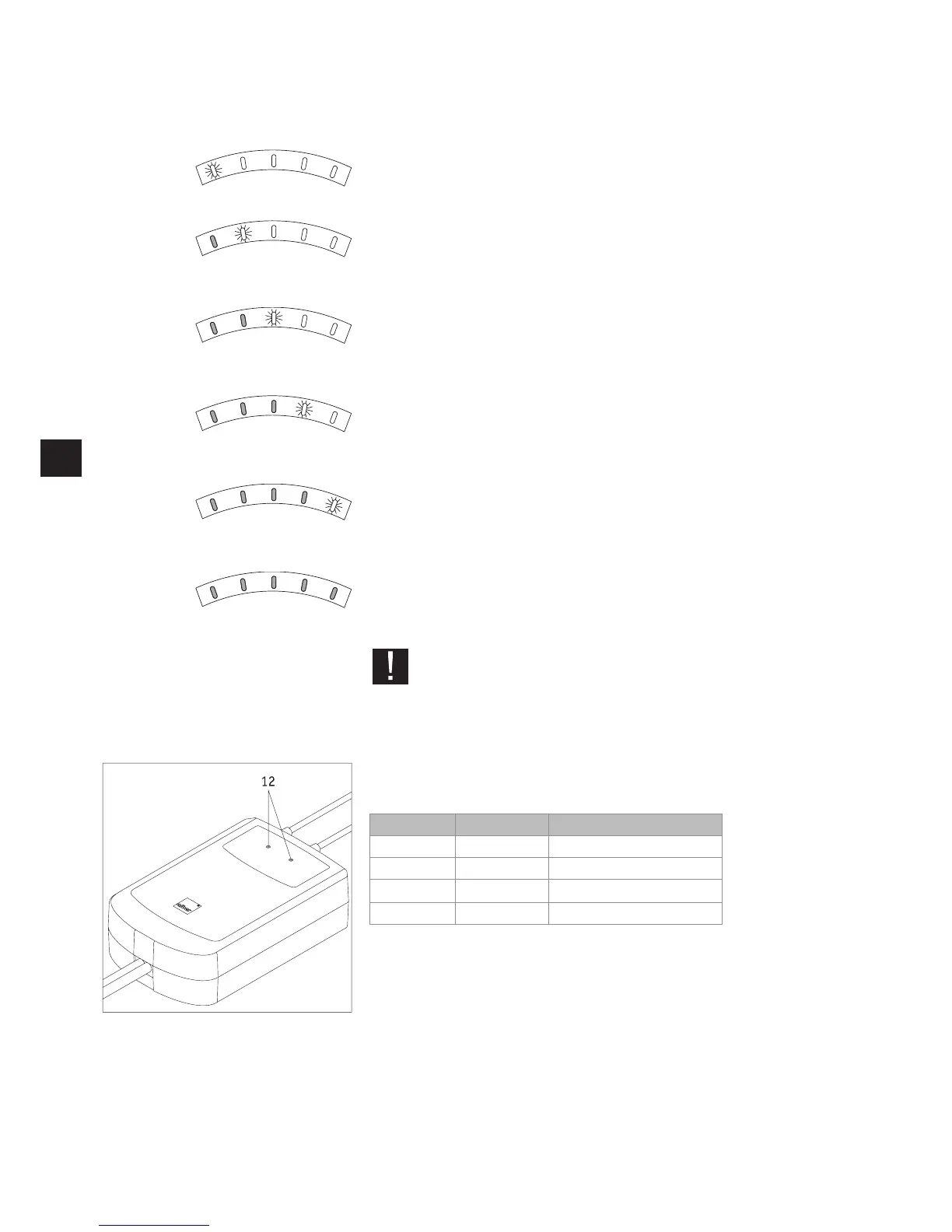

5.2 Displays when charging the battery
Displays on the wheel
1 LED flashing white – the battery has a charge of less than 20%.
One LED flashes white, 1 LED lights up white – the battery is charged to between 20%
and 40%.
One LED flashes white, 2 LEDs light up white – the battery is charged to between 40%
and 60%.
One LED flashes white, 3 LEDs light up white – the battery is charged to between 60%
and 80%.
One LED flashes white, 4 LEDs light up white – the battery is charged to between 80%
and 100%.
5 LEDs lit up white – the battery is charged to 100%.
If a fault occurs during the charging process, the fault is indicated by
the LED display and various acoustic signals (see chapter 5.4).
5.3 Displays on the charger
The status of the charger is indicated by its LED displays [12] as follows:
LED colour LED mode Status
Red Steady light Error
Orange Steady light Ready for use
Green Flashing Charging
Green Steady light Charging complete
