Anti-tippers (art. no. 1489214)
Since your wheelchair may already be equipped with anti-tippers, Alber anti-tippers are
only offered as optional accessories. The use of original anti-tippers is subject to the
instructions and safety information provided by the manufacturer that apply to their use.
When using Alber anti-tippers, two further brackets are fitted to your wheelchair in which
the anti-tippers are inserted. The following instructions and safety precautions apply.
Fitting and removing the Alber anti-tippers
• Switch off the e-motion wheels before attaching the anti-tippers.

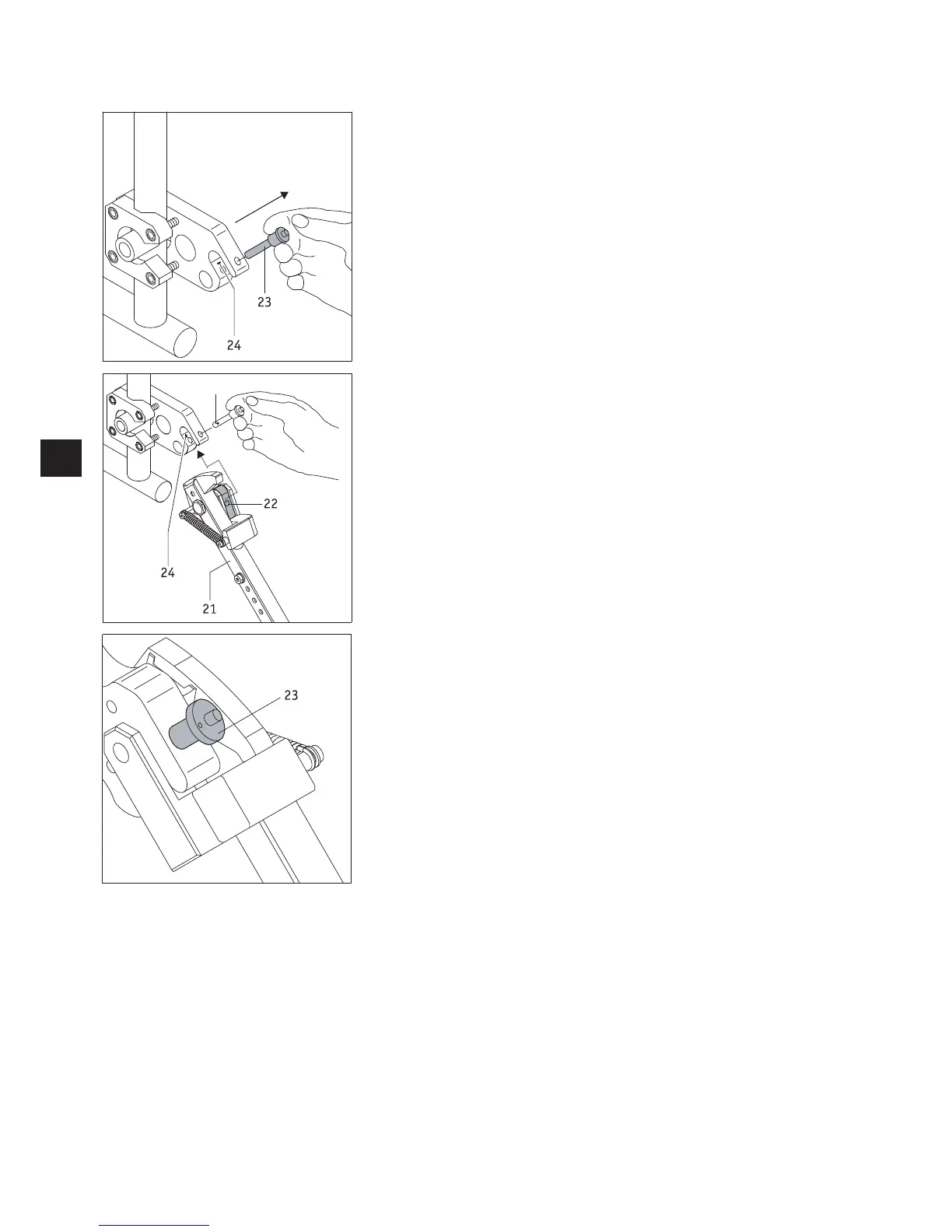

• Remove the quickpin [23] from the bracket mounting fork [24] by pressing on the pin
in with your thumb and pulling it out using your index and middle finger.
• Push the clamping piece for the anti-tipper [22] into the bracket mounting fork [24].
• Lock the bracket mounting fork [24] in place using the quickpin [23]. To do this,
press the pin in with your thumb and then push it fully into the bracket as far as it
will go.
• Check that the quickpin [23] holds fast in the bracket mounting fork [24]. It must not
be able to be removed without pressing the releasing device.
• Fit the second anti-tipper.
Follow the above sequence in reverse to remove the anti-tippers.
