OPERATING INSTRUCTIONS

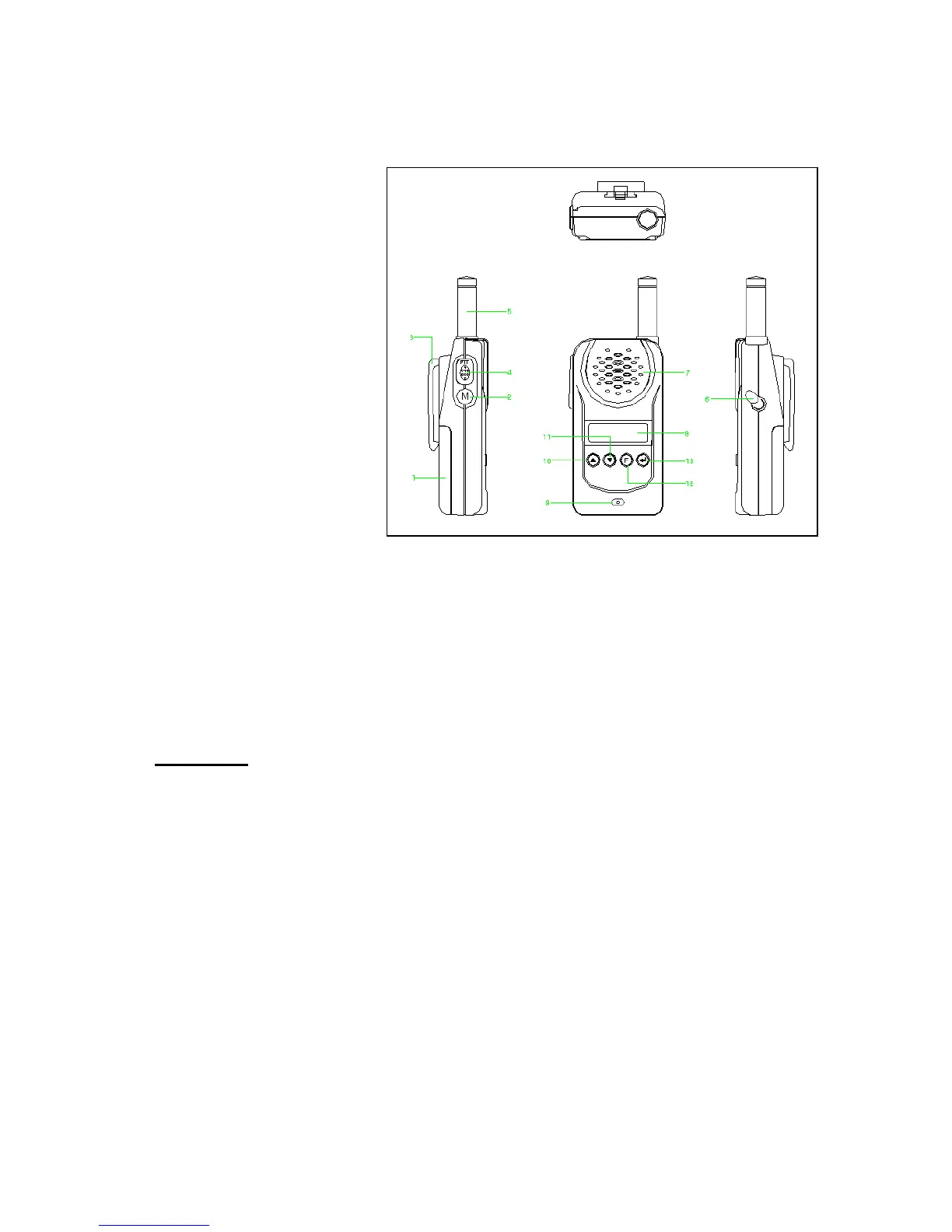

FUNCTIONS AND CONTROLS
1. Battery Door
2. Monitor Button
3. Detachable Belt Clip
4. Push-To-Talk (PTT) Button
5. Antenna
6. External Mic / Speaker
7. Built-in Speaker
8. LCD Panel
9. Built-in Microphone
10. Up Button & Volume Control
11. Down Button & Volume
Control
12. Function Button
13. Power On/Off & Enter Button
BATTERY INSTALLATION
Each Communicator unit operates on four ‘AAA’ size batteries.
1. Remove the Battery Door (#1) from the back cabinet by unclipping the lock at the bottom of the
door and lifting it upwards.
2. Following the polarity diagram shown inside the battery compartment, insert four ‘AAA’ size
batteries. Replace the
Battery Door (#1) and lock.
IMPORTANT:
Be sure that the batteries are installed correctly. Wrong polarity may damage
the unit.
3. For better performance and longer operating time, we recommend the use of alkaline-type
batteries.
4. Do not mix old and new batteries.
5. Do not mix alkaline, standard (carbon-zinc) or rechargeable (Ni-MH) batteries.
6. If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking
batteries can cause damage to the unit and will void the warranty.
WRIST STRAP AND DETACHABLE BELT CLIP INSTALLATION
The Wrist Strap and Detachable Belt Clip are provided to enable you to carry the
palm-sized Communicator easily and safely.
1. To use the Wrist Strap, simply attach it to the hole just above the Belt-clip (#3). Feed the small
loop on the end of the strap through the hole and then pass the strap through the loop and pull
tight.
