Alcatel-Lucent OmniPCX Office RCE Large User Manual

4.9.2.2 Jumper

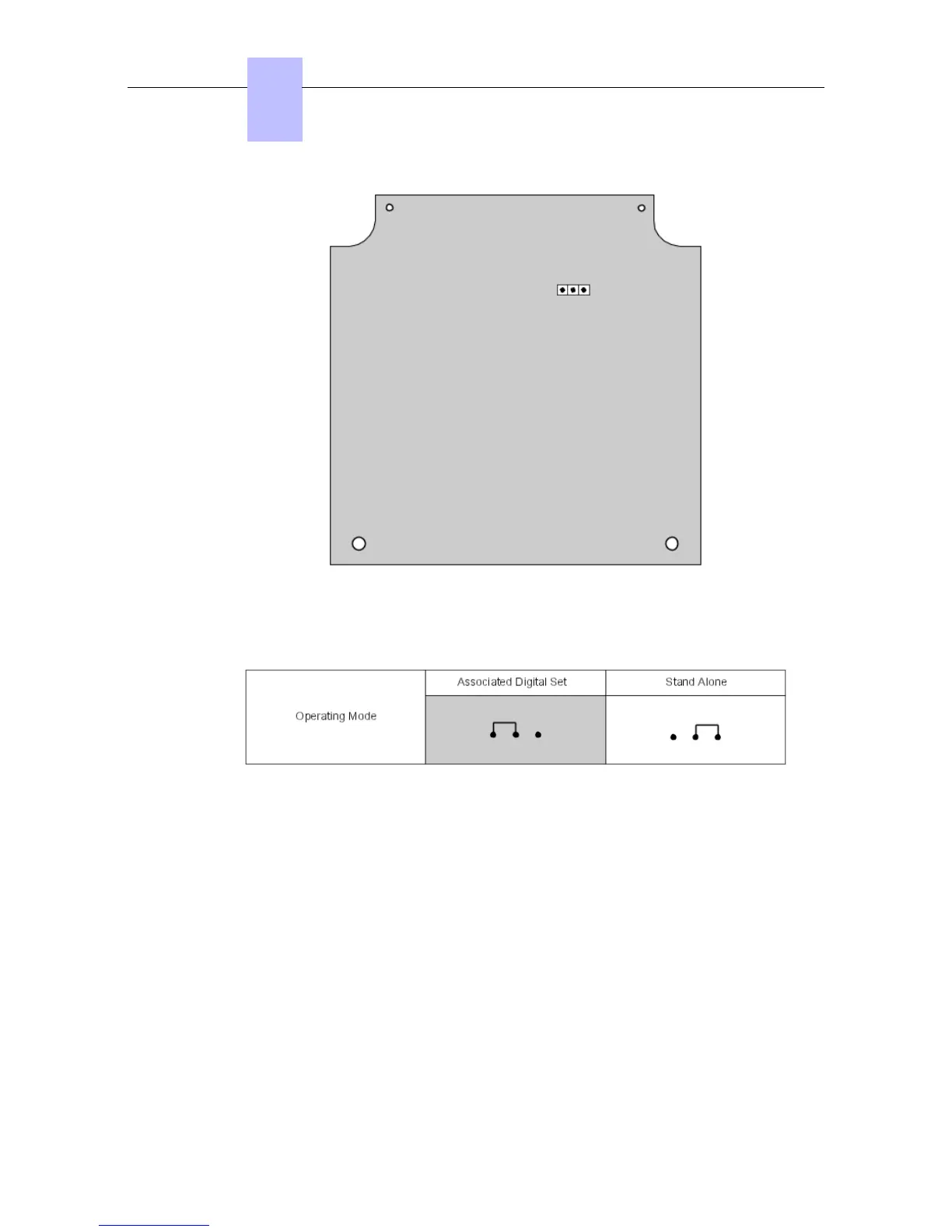

The jumper in a gray background is factory installed.
To configure the S0 Interface Module, open the device with the 2 screws, located under the
module.
If the jumper is positioned for "stand-alone" operation, an associated set cannot work.
If the jumper is positioned for "associated digital set" operation, an associated set is
mandatory, the Interface Module cannot work without it.
4.9.3 External connections
4.9.3.1 Connecting the S0 Interface Module
Chapter
4
  &'(
4-88
        
