Alcatel-Lucent OmniPCX Office RCE Large User Manual

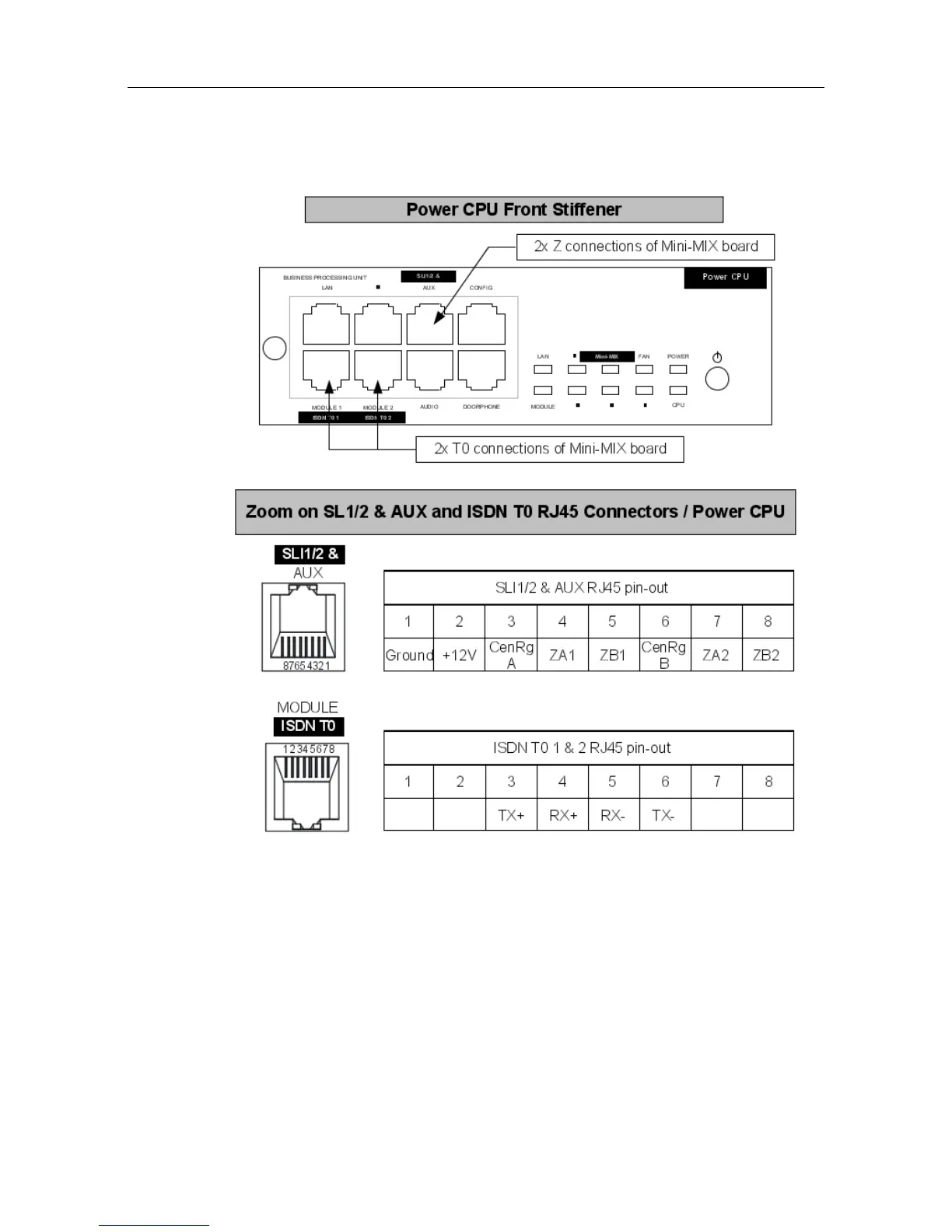

Figure 2.2: Mini-MIX connections on PowerCPU Board
Equipment numbering:
- Slot 80 EN 01 for the first T0 access (80-001-01)
- Slot 80 EN 02 for the second T0 access (80-002-01)
- Slot 80 EN 09 for the first Z access (80-009-01)
- Slot 80 EN 10 for the second Z access (80-010-01)
2.2.2 OmniPCX Office RCE Small
 ! "#  "$
        
2-3
