- 0,5 mm cable: 505 m
- 0.6 mm cable: 730 m
Cables of 3 m and 10 m are available for connecting the sets to the hub.
4.14.1.2 Adding/Replacing Boards
Except for PowerCPU, any board can be plugged/unplugged when the system is
powered up.
To replace a PowerCPU board:
- Press the ON/OFF button, the RED led will flash.
- Wait for the LED to go to steady red (about 30 seconds): the system is turned off.
With OMC you can save and subsequently restore the configuration after replacing the
PowerCPU board.
4.14.1.3 Connecting a Hard Disk

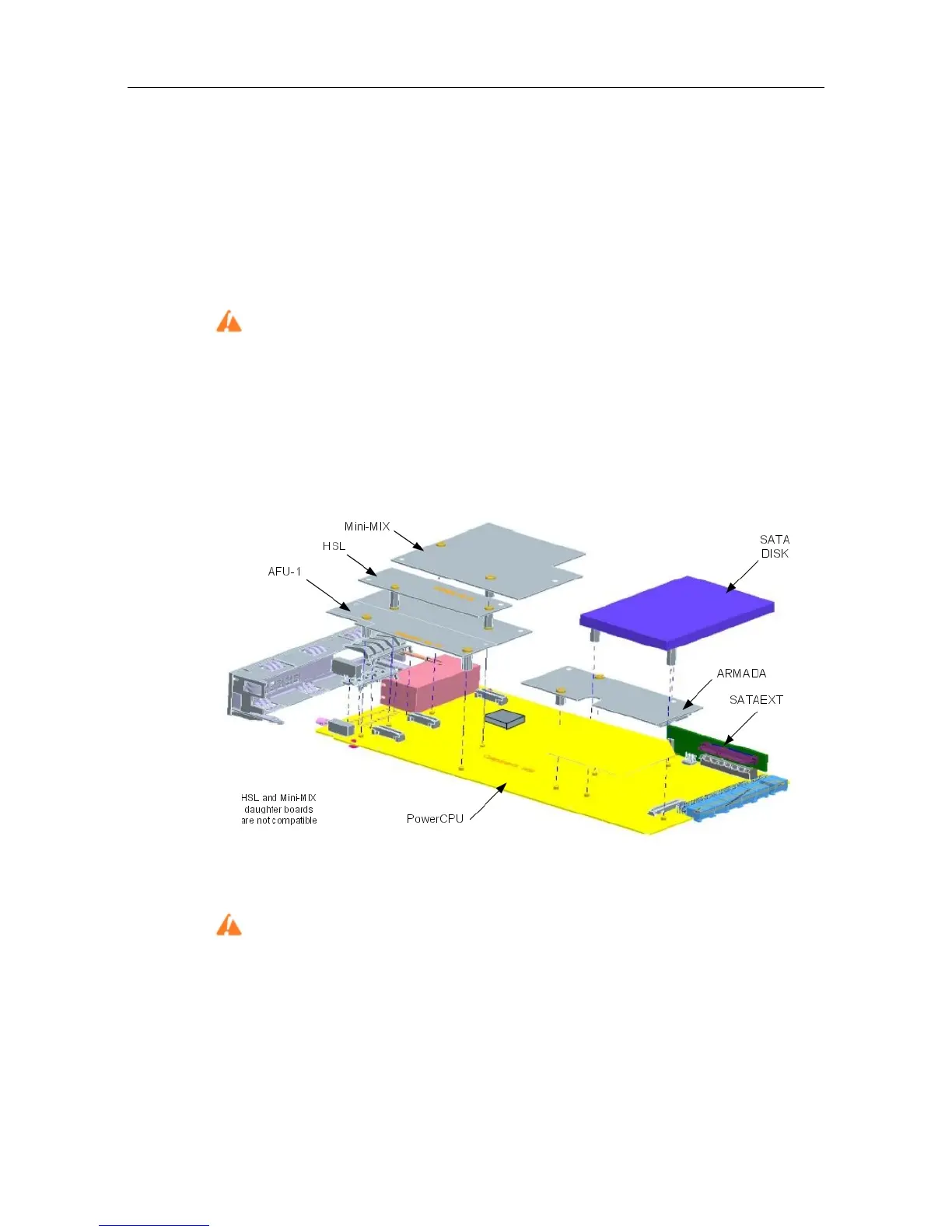

Figure 4.86: SATA Hard Disk Connection
During installation, always take anti-static precautions (wristband, heelpiece, etc.) before
handling the hard disk. Any degradation caused by electrostatic discharges will reduce
the life of the disk. Handle the hard disk by its sides and do not touch the connector.
When going into stand-by mode, wait for the red Power LED to stop flashing before you
remove the module's PowerCPU board. Extracting the disk before the switch to standby is
completed can destroy part of the disk or damage its contents. Never handle the hard
disk until the motor has stopped completely (about 4 seconds after the red Power LED stops
flashing).
&'(
4-115
