delivered with inter-battery connectors.
In addition, you will need:
- 12V - 7Ah batteries (reference: 3EH 76156 AA)
- A connection kit (reference: 3EH 75031 AA) for connecting the external battery unit to the
Alcatel-Lucent OmniPCX Office Communication Server platform.
4.3.1.3.3 Power Supply Reference
Type Reference
110-230V power supply for OmniPCX Office RCE Small plat-
form
3EH 05009 AC
230V power supply for OmniPCX Office RCE Medium platform 3EH 05012 AC
110V power supply for OmniPCX Office RCE Medium platform 3EH 05010 AC
230V power supply for OmniPCX Office RCE Large platform 3EH 05013 AC
110V power supply for OmniPCX Office RCE Large platform 3EH 05011 AC
4.3.1.3.4 Installation of External Batteries for OmniPCX Office RCE Small, Medium,
Large Platforms
You must first prepare the external battery unit for use and then connect this unit to the
platform. These two phases of installation are presented separately below.
You will have to choose the appropriate preparation procedure, according to whether you have
a rack or stack version of the external battery unit.
The connection procedure is the same for OmniPCX Office RCE Medium and OmniPCX Office
RCE Large platforms, but is different for OmniPCX Office RCE Small platforms.

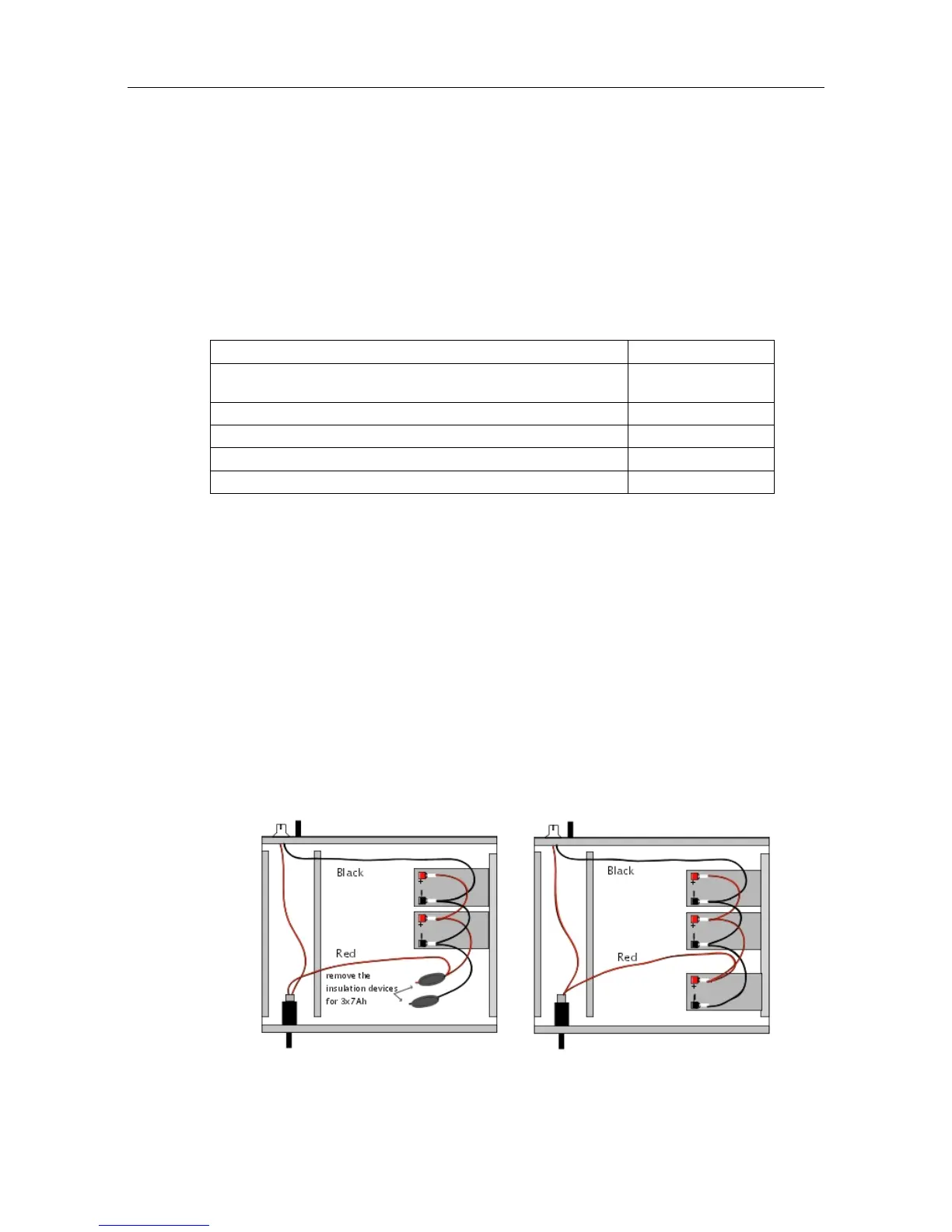

Preparing an External Battery Unit (Rack Version)
Before starting the installation, note that:
- External batteries must be of the same type, must be supplied by the same manufacturer
and be from the same batch run.
- Batteries must be charged prior to installation.
&'(
4-21
