5. Close the unit and secure it with the four screws.
6. Stick a label on the unit stating the date of the installation and the number of batteries
installed.

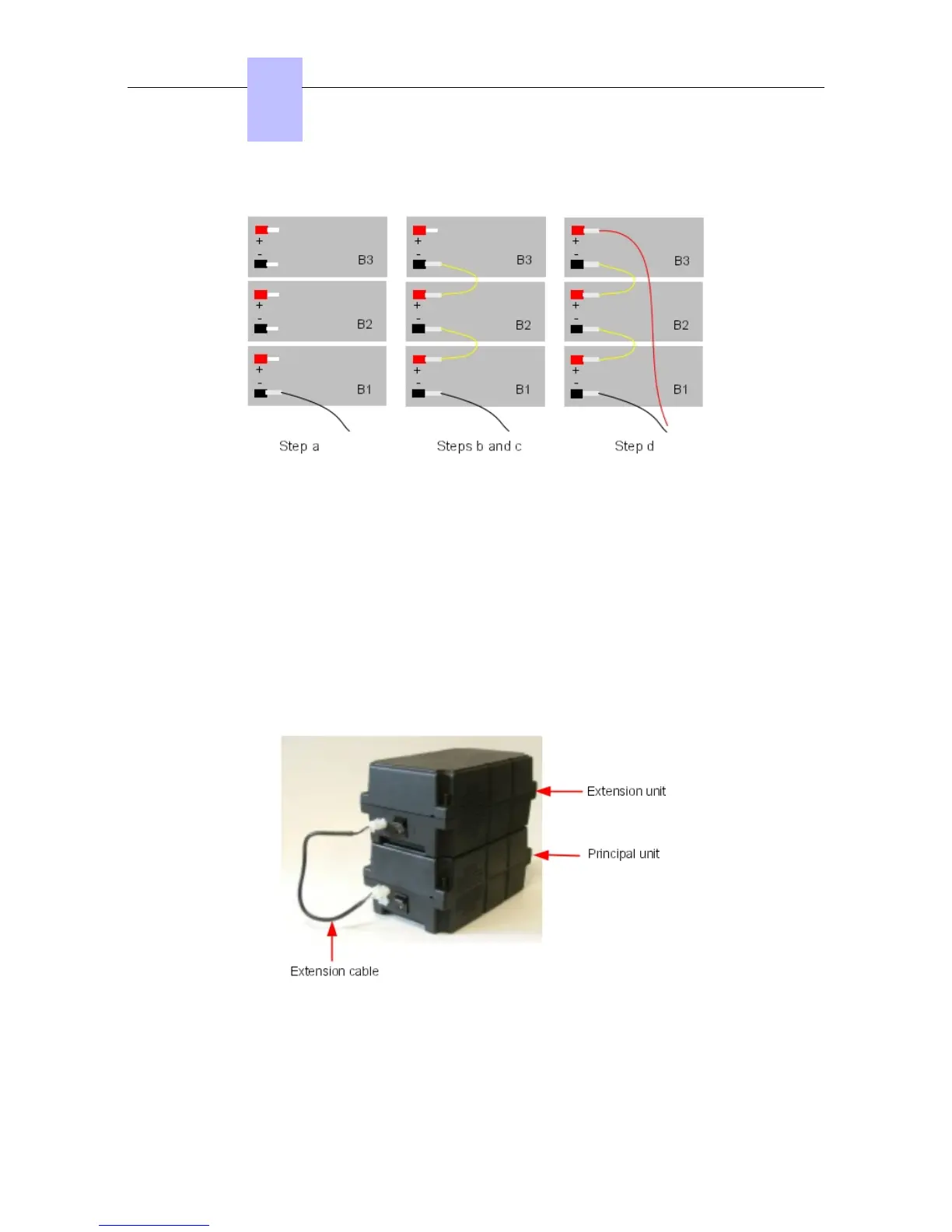

7. If you wish to use two external battery units in parallel, continue as follows (also see figure
below):
a. Place the two units side by side, or one on top of the other.
b. Decide which unit is to be the principal unit and which is to be the extension unit.
c. Connect the two units using the extension cable between the J2 connectors on the
units; the cable's Mate-N-Lok 3-terminal connector must be connected to the principal
unit and its Mate-N-Lok 2-terminal connector must be connected to the extension unit.
Installation of External Batteries for the OmniPCX Office RCE Medium and
OmniPCX Office RCE Large Platforms
Chapter
4
&'(
4-26
