Assembly instructions for control panel 3010 413
The control panel is intended for the Alde Compact 3010 central heating boiler.
Assembly
The control panel should be located at least 1 metre above the oor, but not too close to the ceiling. Nor should
it be located on an outer wall or close to objects which radiate heat, for example, CD players, refrigerator and
lamps, as this can give incorrect temperature. The area behind the panel should be well ventilated. If the room
temperature on the panel is affected nevertheless, an external sensor should be connected to the panel.

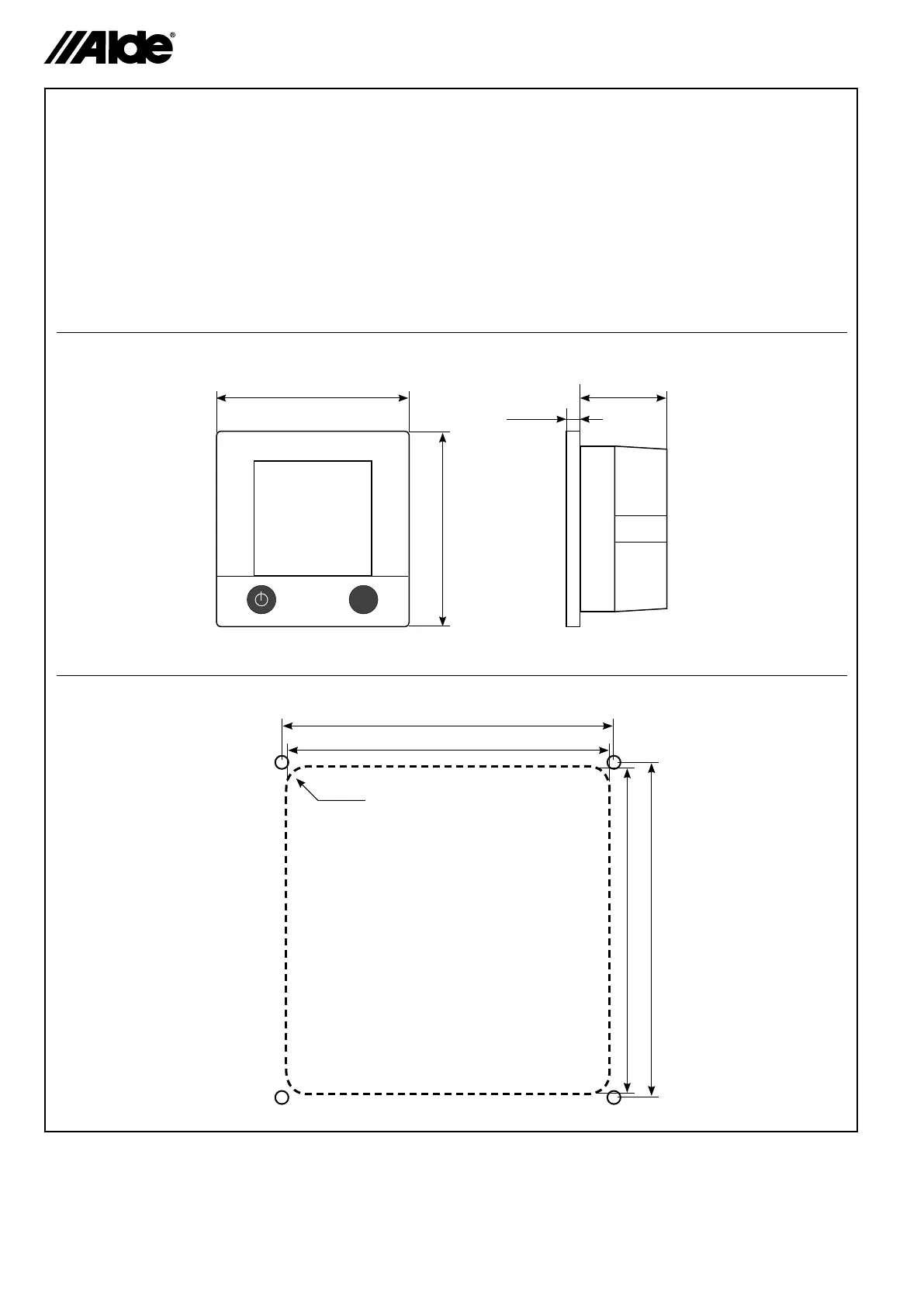

Make a hole for the panel as shown in gure A. Screw down the panel and push the front part on.
Clip on the cables to avoid wear on the terminal strip of the panel.
75,5 mm
74 mm
73 mm
R 5
76,5 mm
87 mm
89 mm
MENU
40 mm
6,5 mm
MENU
A.
