− In this case, use a water backflow preventer or a supply hose
set approved in accordance with IEC 61770.
The following work steps are required to prepare the device for operation:
1. Fit the handle
1
on the 2.2 kW high pressure washer
6
. Secure it with the
2enclosed cross-slotted screws
19
(see fig. 1).
2. Attach the holder for the spray gun
11
and the cord holder
4
to the receptacles
on the 2.2 kW high pressure washer up to the stop point (see fig. 2).
3. Remove the protective cap
18
from the threaded socket of the spray gun
15
and
screw the high pressure hose
3
tightly onto the spray gun (see fig. 3).
4. Fit the turbo lance
13
or the adjustable spray lance
14
in the connection for the
spray gun and turn the spray lance clockwise by 90° to lock it in this position
(see fig. 4).
5. Remove the protective cap
9
from the threaded socket
8
of the
2.2kW pressure washer and screw the water inlet adapter
21
onto the threaded
socket until hand tight (see fig. 5).
6. Connect the supply hose with a quick-lock coupling (not included in the product
contents) with the water inlet adapter on the 2.2 kW high pressure washer
(see fig. 6).

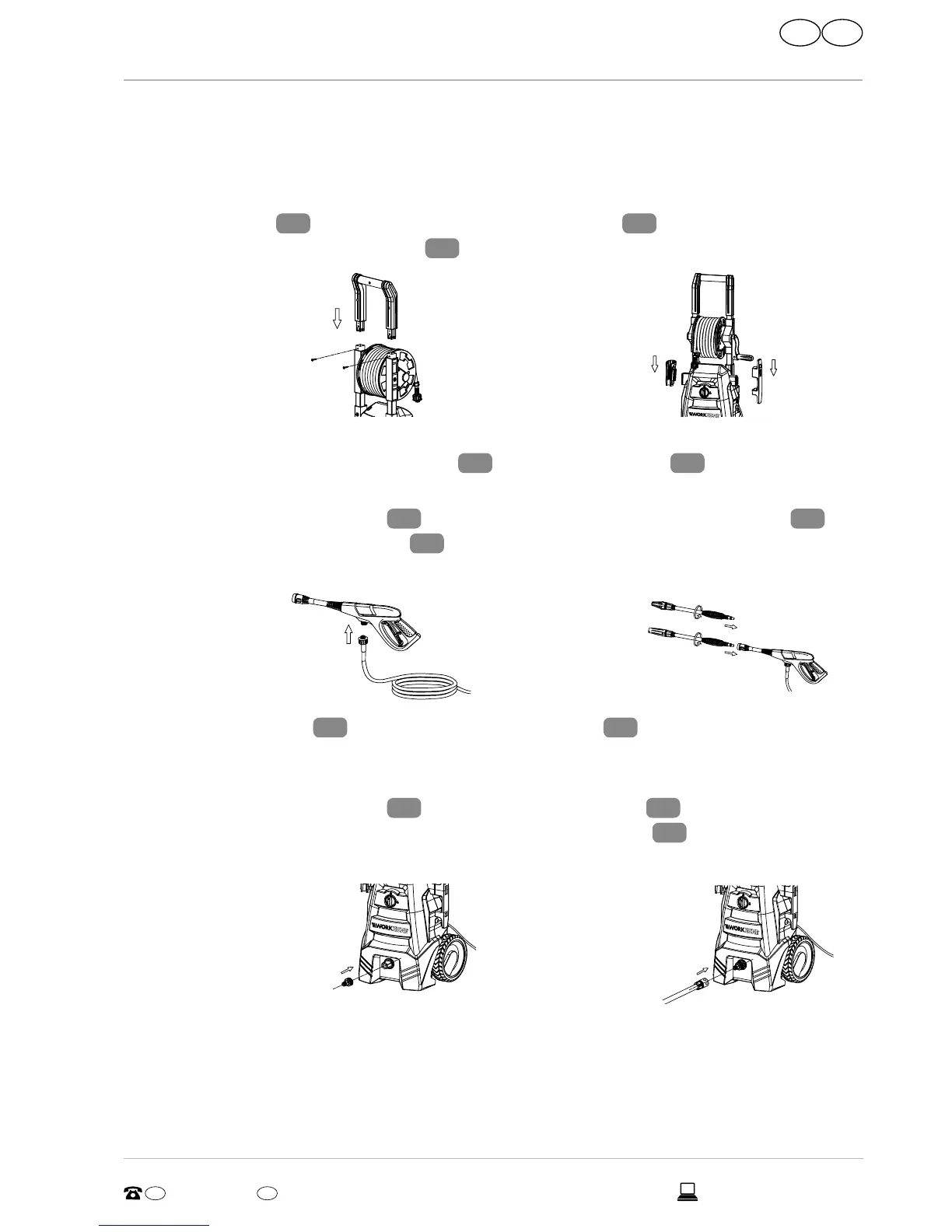

Figure 1 Figure 2
Figure 3 Figure 4
Figure 5 Figure 6
