Fitting and removing the battery pack
1. To install the battery pack (9) to the tool, align the raised portion of the
battery pack (9) with the grooves on the bottom of the drill/driver, and
with your thumb on the battery release tab (16), slide it rmly into the
handle until the battery is secure in position (Fig A). Release your thumb
from the battery release tab (16).
2. To remove the battery pack from the tool, press the battery release tab
(16) and slide the battery pack completely out of tool handle
(Fig B).
3. When applying the charger adaptor (10) onto the battery pack (9), slide
the charger adaptor (10) onto the battery pack (9), whilst aligning the
tabs on the battery pack (9) with the tabs on the charger adaptor (10)
(Fig C).
The charger adaptor (10) will make a snap / click noise when it is
securely aligned.
4. To remove the battery pack (9) from the charger adaptor (10), press
the battery release tab (16) and slide the charger adaptor backwards
/ outwards, opposite to the direction it was installed into the charger
adaptor (10).
Battery charging
IMPORTANT. Before attempting to charge the battery, check the charger
adaptor (10), plug pack charger (11), and the battery pack to ensure the
charging equipment matches the battery supplied. The components are all
labelled with component numbers.
Check the input voltage on the charger label and ensure the input voltage
indicates 100-240V ac 50-60 Hz.

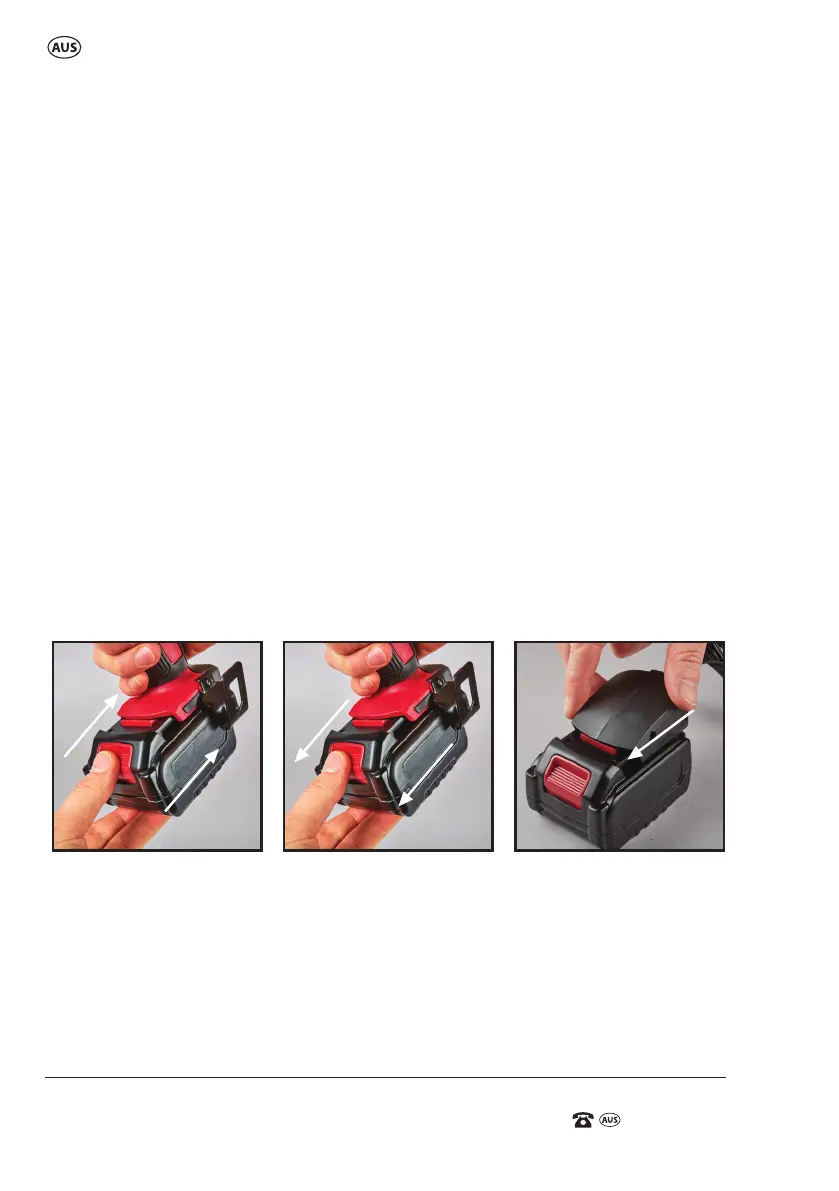

B.
A. C.
