24V Lithium-ion Cordless Drill with Hammer Action
MODEL: №.CDI224 • 09/2020 • 63524
17
2. To stop the drill/driver, release the trigger
switch (8).
Note. The variable speed control tted to this
drill/driver is NOT intended to be used for long
periods of time during the operation of the task
being performed. Use the variable speed to start
drill/driving and screwing tasks, and then fully
depress the trigger once the task has started.
CAUTION. Extended use of the variable speed
under load will overload and then permanently damage the speed control.
Forward/reverse switch
NOTE: You can only change the direction of rotation of the drill/driver using
the forward/reverse switch (6) when the trigger (8) is NOT depressed.
This switch will allow you to change the direction of the motor while the
trigger switch is not depressed.

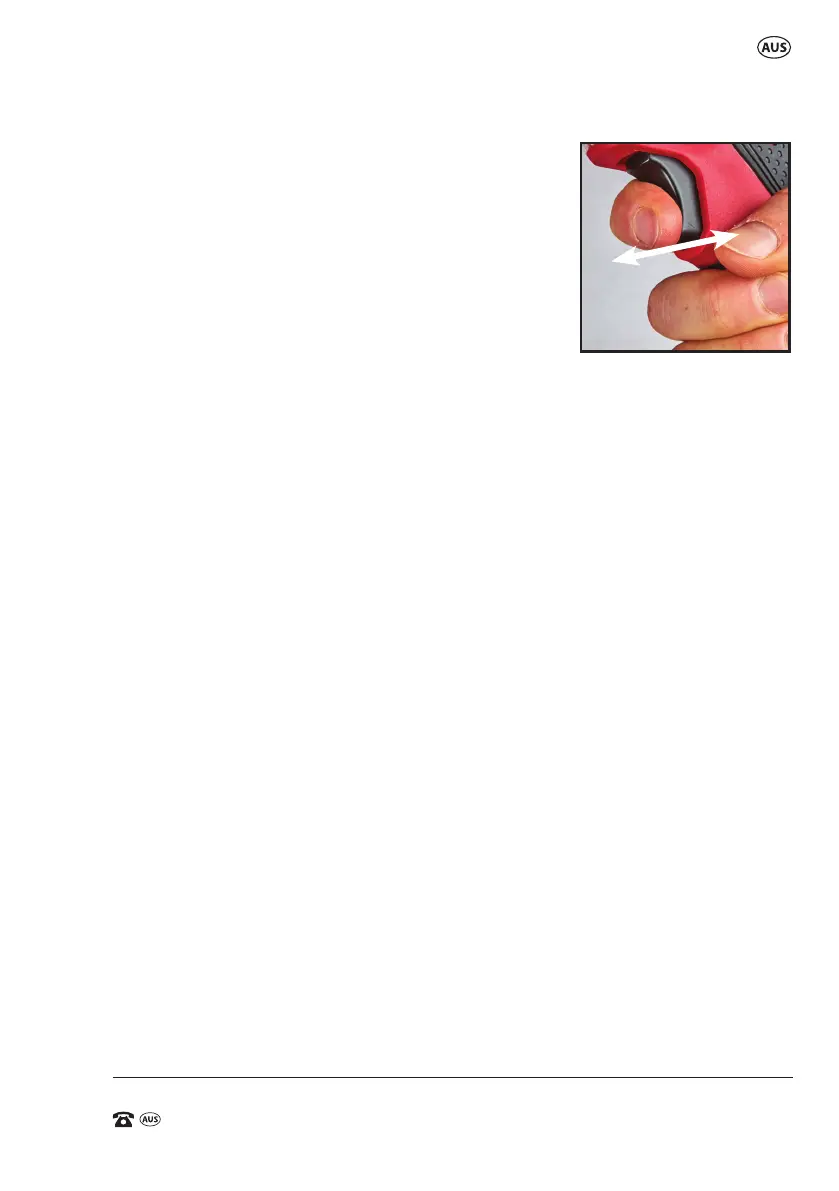

1. To put in reverse mode, push in the forward/reverse switch on the side of
the drill where the arrow on the switch is pointing to the rear end of the
drill. The chuck will rotate in an anti-clockwise direction.
2. To put in forward mode, push in the forward/reverse switch on the side of
the drill where the arrow on the switch is pointing to the front end of the
drill. The chuck will rotate in an clockwise direction.
Drill/driving uses the forward mode. The reverse mode is intended for the
removal of screws and assisting to remove jammed drill/driver bits.
3. When the forward/reverse switch is in the middle position, not engaged
in either the forward or reverse position, the drill is in a locked state and
will not engage.
Adjustable torque
This drill/driver is equipped with 25 torque settings plus 1 x drill setting,
1 x screw setting and 1 x hammer setting.
The torque settings are controlled and adjusted by the torque setting / collar
(2), but only aects the output when the screw function (14) is selected.
The screw function (14), the drill function (15) and the hammer drill function
(13) are all selected using the second collar, the function selection collar (3).
