Alesis 1622 - Master Assign Switch; Mute Switch; Solo Switch; Sub Master Assign Switch

6
POST-FADER SEND
TO HEADPHONES
OR EFFECTS
+3
0VU
-10
-20
-30
-40
-50
-60
INPUT
LED METER
INSTRUMENT/MIC
EFFECTS DEVICE

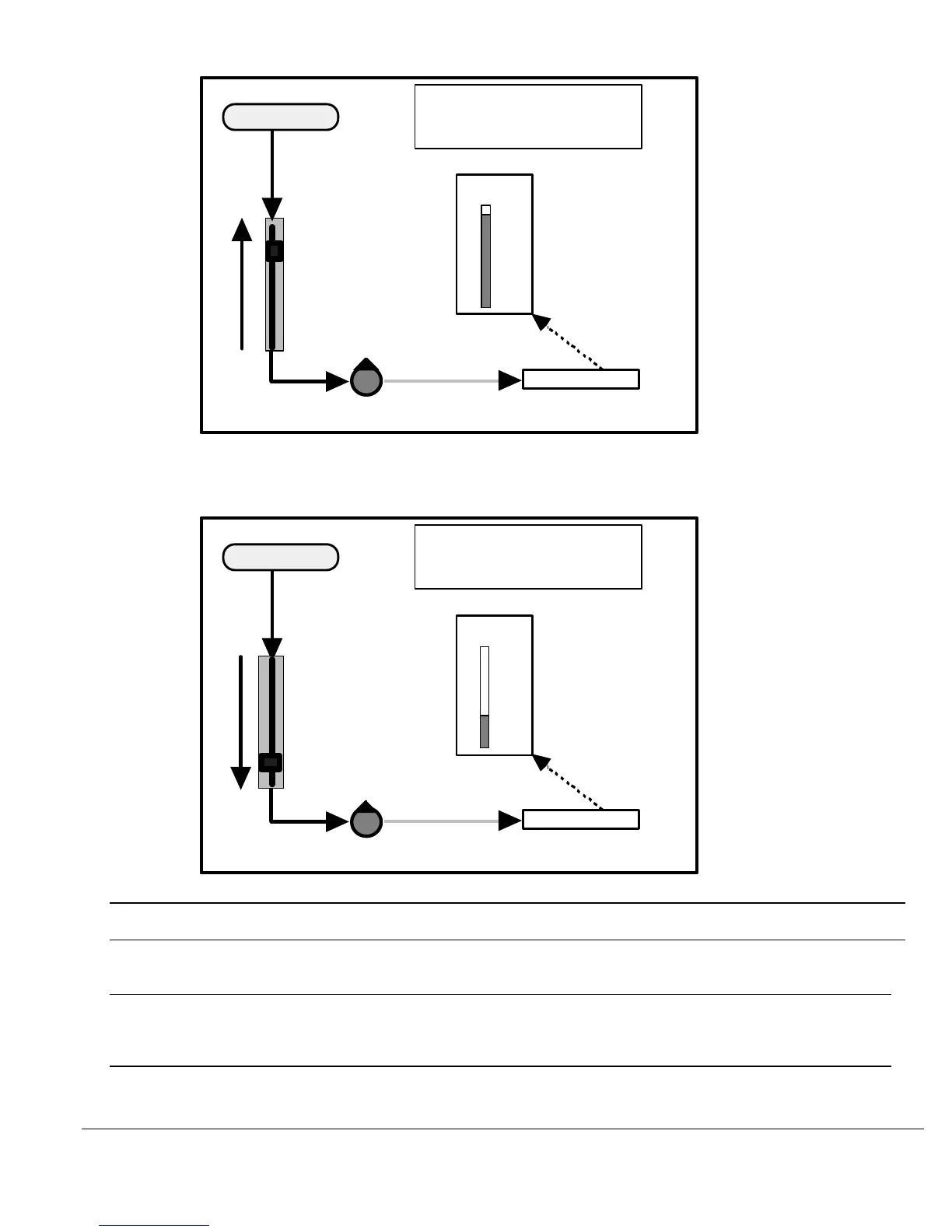

A. POST-FADER SEND
WITH
CHANNEL FADER UP
CHANNEL
FADER
FIGURE 3B
POST-FADER SEND LEVEL FROM THE 1622 MIXER TO EFFECTS DEVICE WITH CHANNEL
FADER DOWN
POST-FADER SEND
TO HEADPHONES
OR EFFECTS
INSTRUMENT/MIC
EFFECTS DEVICE
B. POST-FADER SEND
WITH
CHANNEL FADER DOWN
CHANNEL
FADER
+3
0VU
-10
-20
-30
-40
-50
-60
INPUT
LED METER
MASTER ASSIGN SWITCH
Routes the channel signal directly to the MASTER Stereo Buss.
SUB MASTER ASSIGN SWITCH
Routes the channel signal directly to the SUB MASTER.
MUTE SWITCH
Turns the channel off. The MUTE switch does not affect the signal on SENDS1 and 2 but will
mute SENDS 3 through 6.
SOLO SWITCH
