INTERFACING DATADISK
13
DATADISK USED TO STORE HR-16/HR-16:B, MMT-8 SEQUENCES
In the setup shown below, DATADISK sends System Exclusive data
to the HR-16, which has been set to echo System Exclusive
information received at its MIDI Input and send it back out of its
MIDI Output (see HR-16 manual for specific instructions). The
data is then sent to the MMT-8's MIDI Input.

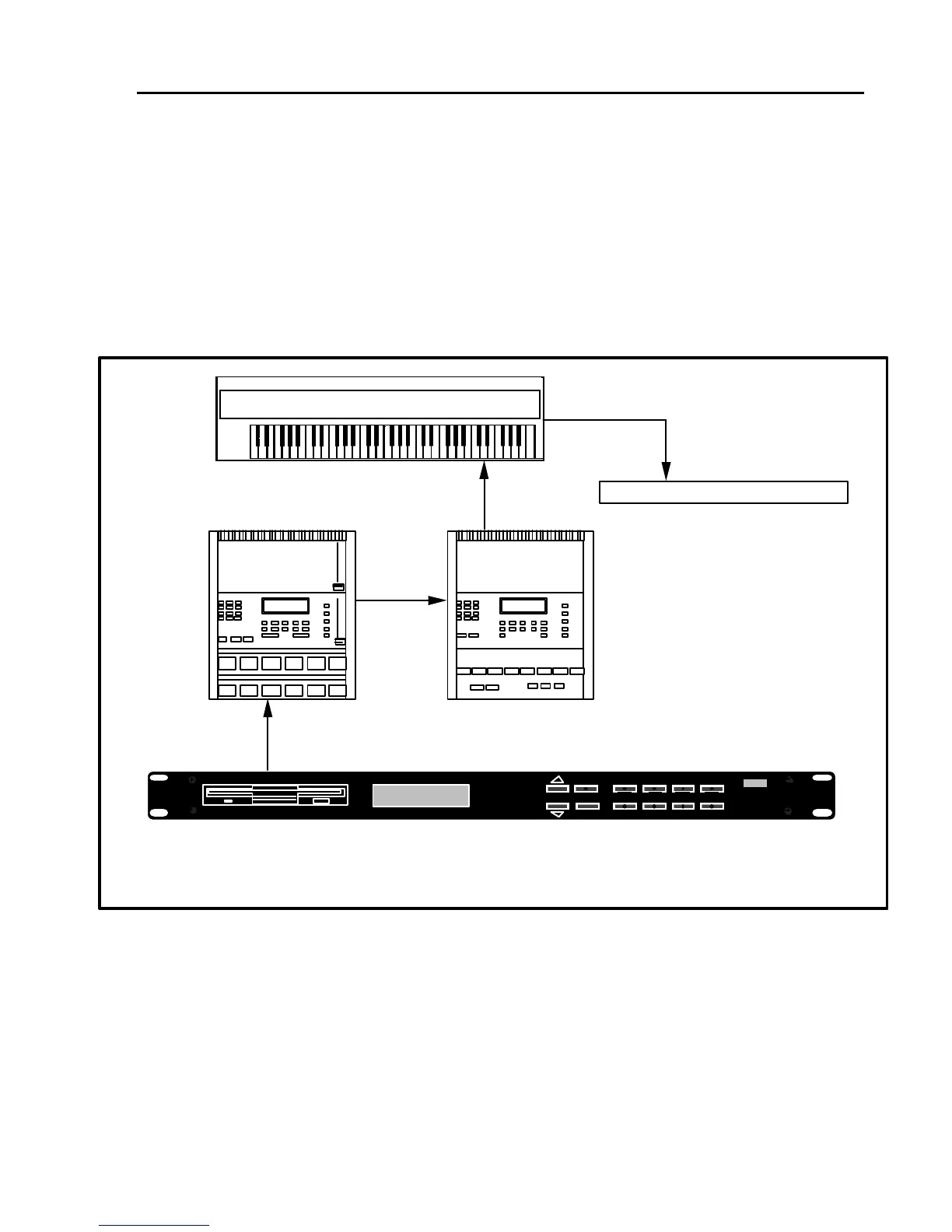

FIGURE 3
DATADISK USED TO STORE HR-16/MMT-8 SEQUENCES
DATADISK
MIDI IN
MIDI OUT
MIDI THRU
MIDI OUT
MIDI OUT
Tone Module
HR-16/HR-16:B Drum Machine
MMT-8 MIDI Sequencer
