8 Technical Reference 8.9 Other drawings
8.9 Other drawings

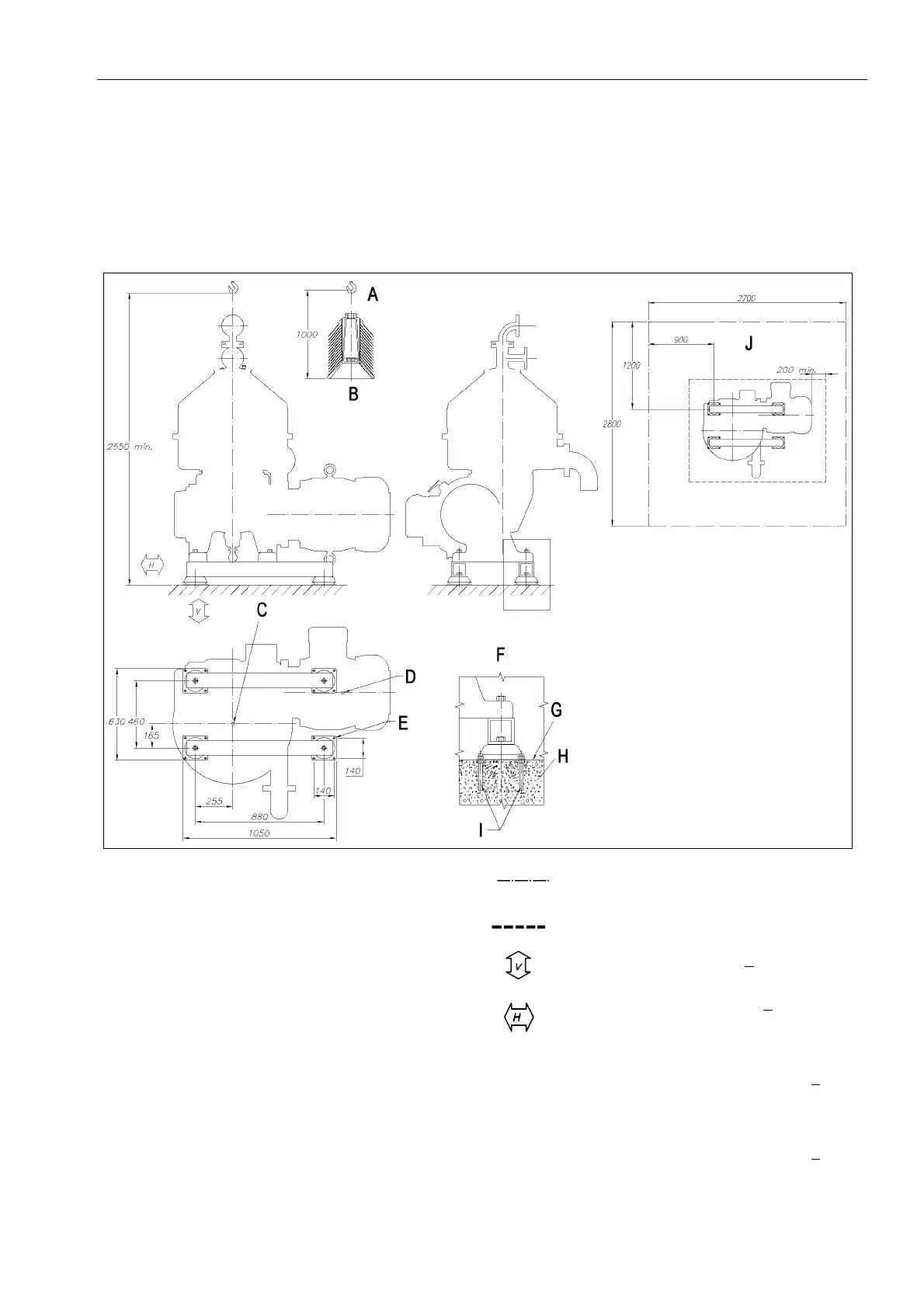

8.9.1 Foundation drawing
Alfa Laval ref. 9008980, rev. 0
A. Min.lifting capacity required when doing service,
1000 kg
B. Max. height of largest component incl. lifting tool
Recommended speed for lifting:
- Low speed 0,5-1,5 m/min
- High speed 2-6 m/min
C. Center of lifting device
D. Center of motor
E. 16 holes 14,5 for anchorage.
F. Installation according to stated foundation forces
G. Floor level
H. Structural concrete
I. Anchor bolt
J. Service side
Recommended free floor space for
unloading when doing service
No fixed installation within this area)
Vertical dynamic forces +
20 kN/foot
(static forces are excluded)
Horizontal dynamic forces +20 kN/foot
(static forces are excluded)
Total vertical dynamic instantaneous
foundation forces (sum of all feet) +
20 kN
(static forces are excluded)
Total horizontal dynamic instantaneous
foundation forces (sum of all feet) +
20 kN
(static forces are excluded)
