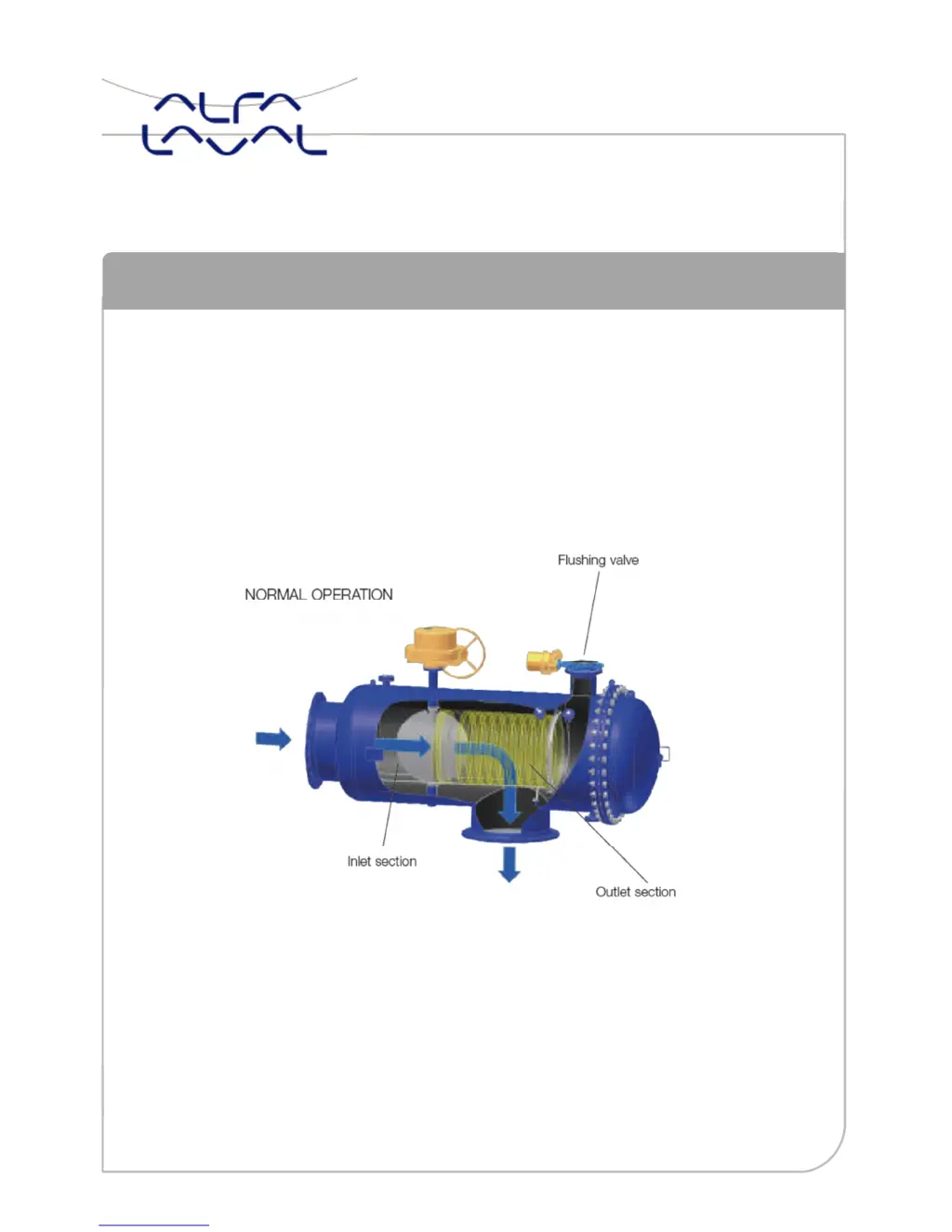

ALF Filter
Model : ALF-R, ALF-S, ALF-P
Standard (Steel) : ASME VIII or EN 13445
Standard (Glass fiber) : ASME X or EN13121
Valid for : 10S/15S/20S/30S
: 20P/30P/40P
: 20R/30R/40R/50R/60R/80R
English EN
Original manual
ALF Instruction Manual UM_Filter_100B03
ALFA LAVAL COPENHAGEN A/S
Installation, Operating & Safety Manual

Table of Contents

Questions and Answers

  • A
    amanda94Aug 7, 2025
    What to do if my Alfa Laval Water Filtration System has no flushing?
    • T
      Tony PhillipsAug 7, 2025
      If your Alfa Laval Water Filtration System isn't flushing, it could be due to a few reasons: * The flushing valve might be incorrectly mounted on the filter body. To resolve this, dismantle the actuator and turn the valve disc to the correct position. * A failure in the power supply (if electrical) could be the cause. Check the fuses to ensure they are in working order. * If the system is pneumatic, the air supply might have failed. Make sure the air supply is adequate and adjust the air regulator if necessary.
  • B
    Brian WestAug 12, 2025
    What to do if my Alfa Laval Water Filtration System is clogged?
    • A
      alexdorseyAug 12, 2025
      If your Alfa Laval Water Filtration System is clogged, it's likely due to the filter being blocked with too much debris. To resolve this, shut down the filter, open the end cover, and manually clean the filter.
  • M
    Megan BrownAug 17, 2025
    Why Alfa Laval Water Filtration System has poor filtration?
    • K
      kathleenwellsAug 17, 2025
      Poor filtration in your Alfa Laval Water Filtration System can occur for several reasons: * The filter basket, rubber profile, or sealing ring might be damaged, requiring repair or replacement. * There might be insufficient back pressure or air trapped in the flushing line. Ensure correct back pressure in the flushing outlet. * If using pneumatic actuators, the flushing valve travelling time might be too short, requiring adjustment. * An external bypass may be open, which needs to be closed.
  • K
    Krista GarciaAug 22, 2025
    Why Alfa Laval Water Filtration System does not operate?
    • E
      Earl WeaverAug 22, 2025
      If your Alfa Laval Water Filtration System isn't operating, check the following: * Ensure there is a power supply by checking the external power source and turning on the main power switch. * Verify the air pressure, ensuring it meets the recommended minimum of 5 barg.
  • S
    Shawn PhelpsAug 27, 2025
    How to reset actuator alarm in Alfa Laval Water Filtration System?
    • T
      Thomas BlackAug 27, 2025
      To address an actuator alarm in your Alfa Laval Water Filtration System, reset the alarm and check the valves, air pressure, limit switch starting and stopping points, and travelling times. The alarm might be triggered if the valve doesn't reach the end position or if the travelling time between end positions is too long.
  • A
    Alec Robertson PhDNov 1, 2025
    Why is my Alfa Laval Water Filtration System leaking?
    • L
      Lindsey KingNov 2, 2025
      Leakage in your Alfa Laval Water Filtration System can stem from several causes: * The system may not be sufficiently tightened; ensure all connections are properly secured. * There may be damage to the lining or gaskets, requiring inspection, repair, or replacement. * Incorrect assembly or a damaged rubber seat. The valve body may be cracked or broken. Remove the flushing valve and check the rubber seat. If it is not damaged, reassemble the flushing valve. * A damaged valve liner or disc necessitates exchanging the flushing valve. * Debris in the flushing valve preventing it from closing requires removal and cleaning of the valve. * Damaged o-rings on the diverter shaft or incorrect tightening require removing the shaft, replacing the o-rings, and checking for loose bolts wit...

Summary

ALF Filter Overview

Safety Instructions and Warnings

General Safety Regulations

General safety rules to follow during operation, installation, and maintenance.

Noise Emission and Modifications

Information on noise levels, and guidelines for alterations and repairs.

Storage and Standstill Guidelines

Storage Procedures

Precautions for storing the equipment for extended periods.

Standstill Procedures

Procedures for keeping the filter out of operation for 3 days or more.

Installation Procedures

Installation Guidelines and Unpacking

General guidance and steps for safely unpacking and preparing the filter for installation.

Lifting and Foundation Requirements

Procedures and requirements for safely lifting and establishing the filter foundation.

Mechanical and Electrical Installation

Steps for physically installing filter components and connecting electrical systems.

Parts Position and Piping

Diagram showing filter parts location and guidelines for piping setup.

Main Filter Components

ALF-R Model Components

Details of the ALF-R filter model and its constituent parts.

ALF-S Model Components

Details of the ALF-S filter model and its constituent parts.

ALF-P Model Components

Details of the ALF-P filter model and its constituent parts.

Operating Instructions

Field of Application and Operating Principle

Describes filter use cases and explains its fundamental operational mechanism.

Operating Precautions and Regeneration

Important safety advice and the process for filter cleaning and regeneration.

Operation Modes and Procedures

Normal Operation and Flushing Cycles

Describes the standard working state and the primary/secondary flushing cycle.

Filter Start, Operation, and Shut Down

Procedures for starting, operating, and safely shutting down the filter.

Flushing and Shut-Down Procedures

Details flushing sequences, extra flushing, and safe shut-down steps.

Maintenance Procedures

Maintenance Overview and Safety Precautions

Overview of maintenance needs and critical safety warnings for performing maintenance.

Component Maintenance and Inspections

Recommended schedules, inspection steps, and corrective actions for filter components.

Filter Basket Removal and Insertion

Step-by-step guide for removing and reinstalling the filter basket.

Specialized Tool for Shaft Maintenance

Information on the specialized tool for shaft maintenance.

Troubleshooting Guide

Common Problems and Solutions

Common problems, their possible causes, and recommended remedies.

Spare Parts and Service

Ordering Spare Parts

Information and requirements for ordering replacement parts.

Alfa Laval Service and Support

Contact information for service queries and support.

Appendix A: Technical Tables

Pressure Drop Data and Diagrams

Tables and diagrams detailing pressure drop characteristics and nozzle load capacities.

Appendix B: Control Panel 2 Touch

Control Panel 2 Touch Overview and Navigation

Overview of the 2Touch control panel, its interface, pages, and basic operations.

Operator Interface Pages and Alarm Handling

Details on Main, Settings, and Alarm pages, including alarm handling procedures.

Settings Menus and Parameter Configuration

Guides users through the settings menu and parameter adjustments.

Detailed Parameter Settings (P100-P255)

Comprehensive guide to configuring various operational parameters via the control panel.

Appendix C: ALF Control Panel S7

Control Panel S7 Configuration and Setup

Details for the ALF Control Panel S7, including mounting and setup.

S7 Panel Operation, Flushing, and Shut-Down

Procedures for starting, operating, flushing, and safely shutting down the S7 control panel.
