ALF Instruction Manual UM_Filter_100B03 Page 20 of 67

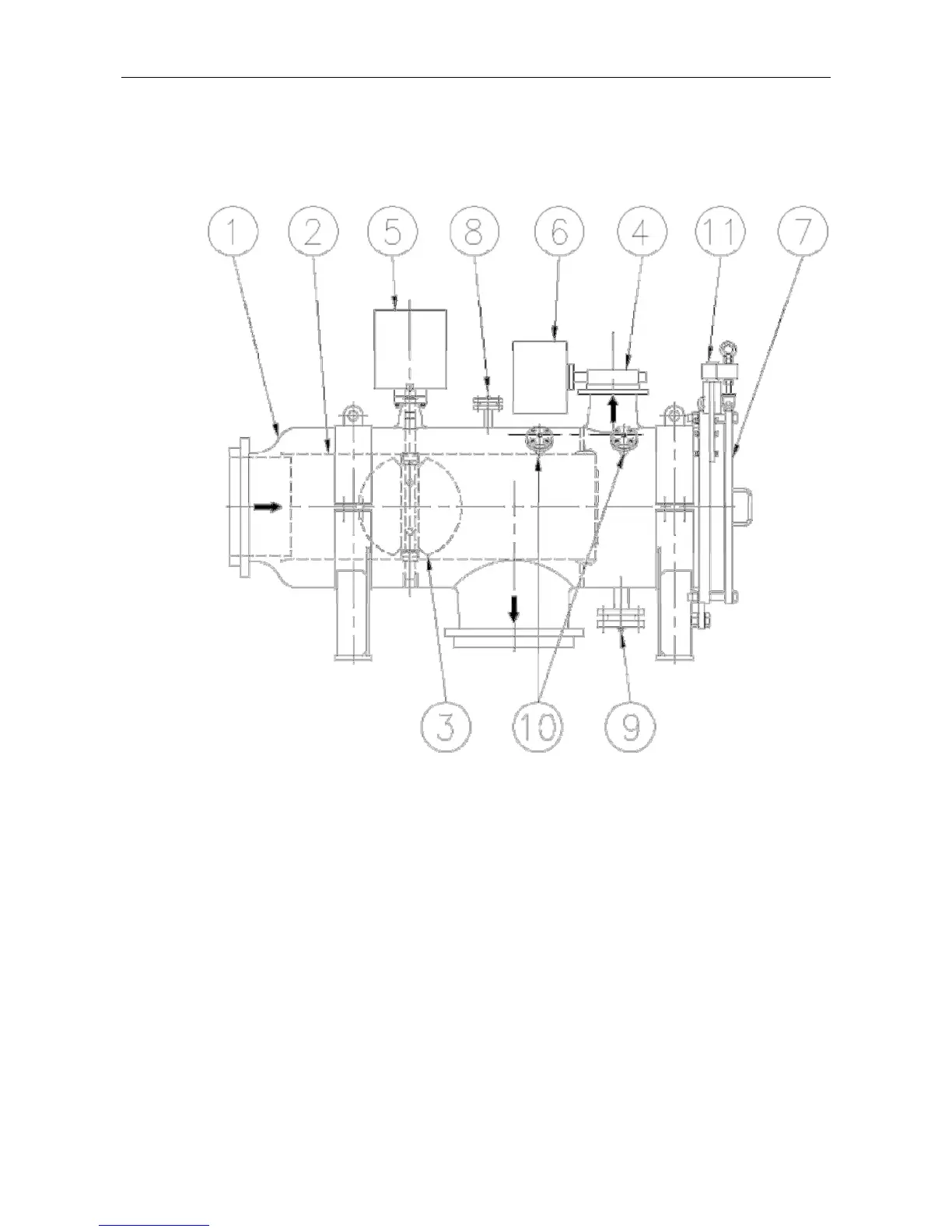

5.3 TYPE ALF-P
ALF-P: A pressure vessel of Glass Fibre Reinforced Polyester containing a strainer for filtration of
water
1. Filter Body
2. Filter Basket
3. Flow Diverter
4. Flushing Valve
5. Flow Diverter Actuator
6. Flushing Valve Actuator
7. End Cover
8. Ventilation Connection (optional)
9. Drainage Connection (optional)
10. Pressure Transmitter Connection (optional)
11. Davit for Horizontal Version (optional)
Support feet (optional on 30 and 40)
