Alfa Laval Copenhagen A/S ALF – Installation, Operating and Safety Manual
ALF Instruction Manual UM_Filter_100B03 Page 18 of 67

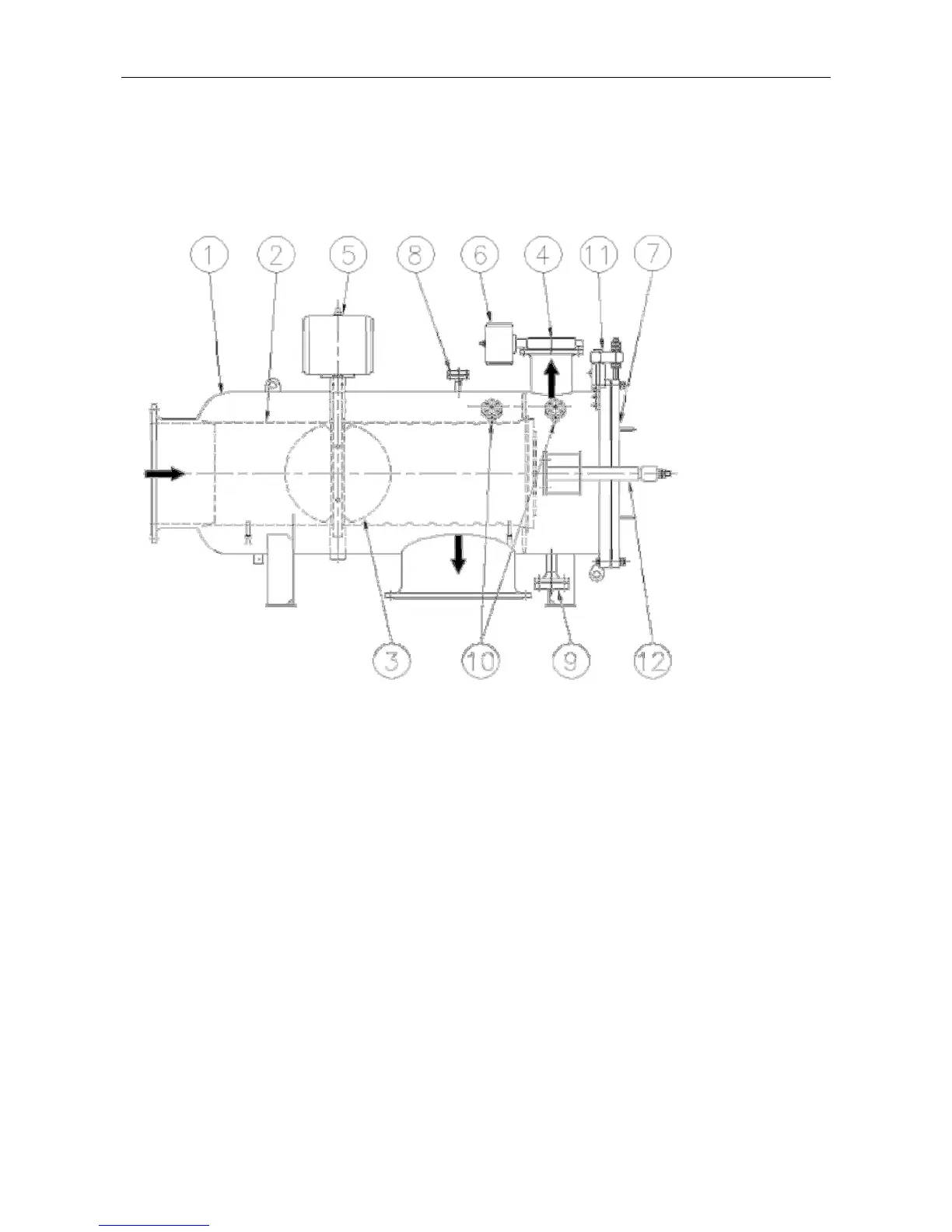

5. Main Components
5.1 TYPE ALF-R
ALF-R: A pressure vessel of carbon steel Rubber lined inside for corrosion protection containing a
strainer for filtration of water
1. Filter Body
2. Filter Basket
3. Flow Diverter
4. Flushing Valve
5. Flow Diverter Actuator
6. Flushing Valve Actuator
7. End Cover
8. Ventilation Connection (optional)
9. Drainage Connection (optional)
10. Pressure Transmitter Connection (optional)
11. Davit for Horizontal Version (optional on some models)
12. Davit for Vertical Version (optional on some models)
