Alfa Laval Copenhagen A/S ALF – Installation, Operating and Safety Manual
ALF Instruction Manual UM_Filter_100B03 Page 16 of 67

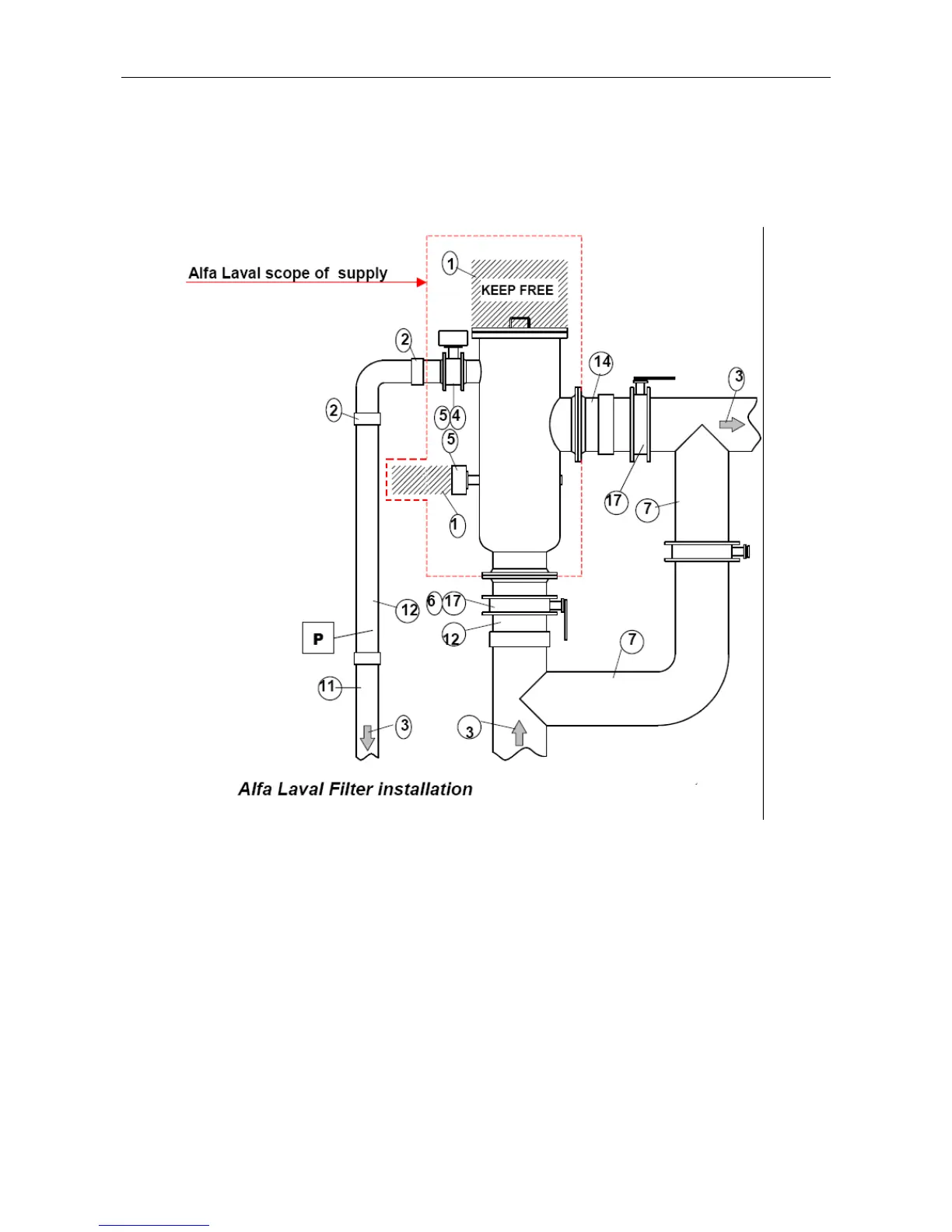

4.7 Parts position
Positions:
1. Service Area
2. Pipe Supports
3. Flow Direction
4. Flushing Valve
5. Actuators
6. Shut-Off Valve
7. Bypass Pipe
11. Flushing Pipe
14. Outlet Pipe
17. Shut-Off Valve
P Flushing Outlet Pipe
