11. APPENDIX A: Tables

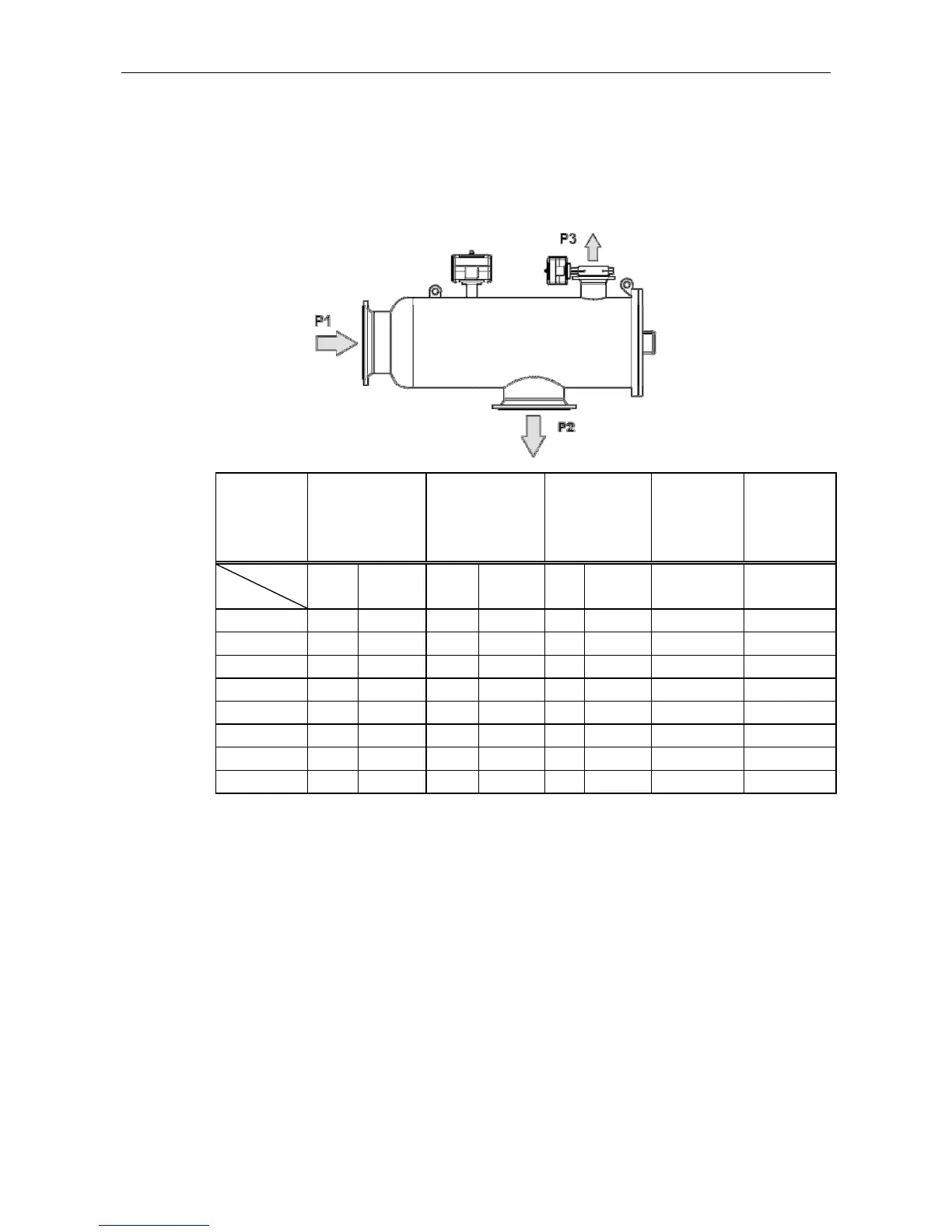

Pressure Drop Data
Measurement
Min. Flow
Normal
Operation
∆p~3 kPa
Max. Flow
Normal
Operation
∆p~30 kPa
Min. Flushing
Flow
Rate
Approximately
Min.
Differential
Pressure
P1-P3
Max.
Differential
Pressure
P1-P3
Unit
Filter Type
m
3
/h US gpm
m
3
/h US gpm
m
3
/h
US gpm
kPa (g) kPa (g)
ALF 10 45 200 140 620 25 110 30 300
ALF 15 100 440 320 1410 55 240 30 300
ALF 20 180 790 570 2510 100
440 30 300
ALF 30 400 1760 1300 5720 225
990 30 300
ALF 40 700 3080 2210 9730 380
1670 30 250
ALF 50 1100 4840 3450 15180 600
2640 30 250
ALF 60 1600 7040 5000 22000 600
2640 30 250
ALF 80 2800 12330 8840 38920 1580
6960 32 250
