Alfa Laval Copenhagen A/S APPENDIX B
ALF Instruction Manual UM_Filter_100B03 Page 43 of 67
12. APPENDIX B: Control Panel 2Touch
12.1 Control Panel - 1 Filter
12.1.1 Basic control panel, operators instructions

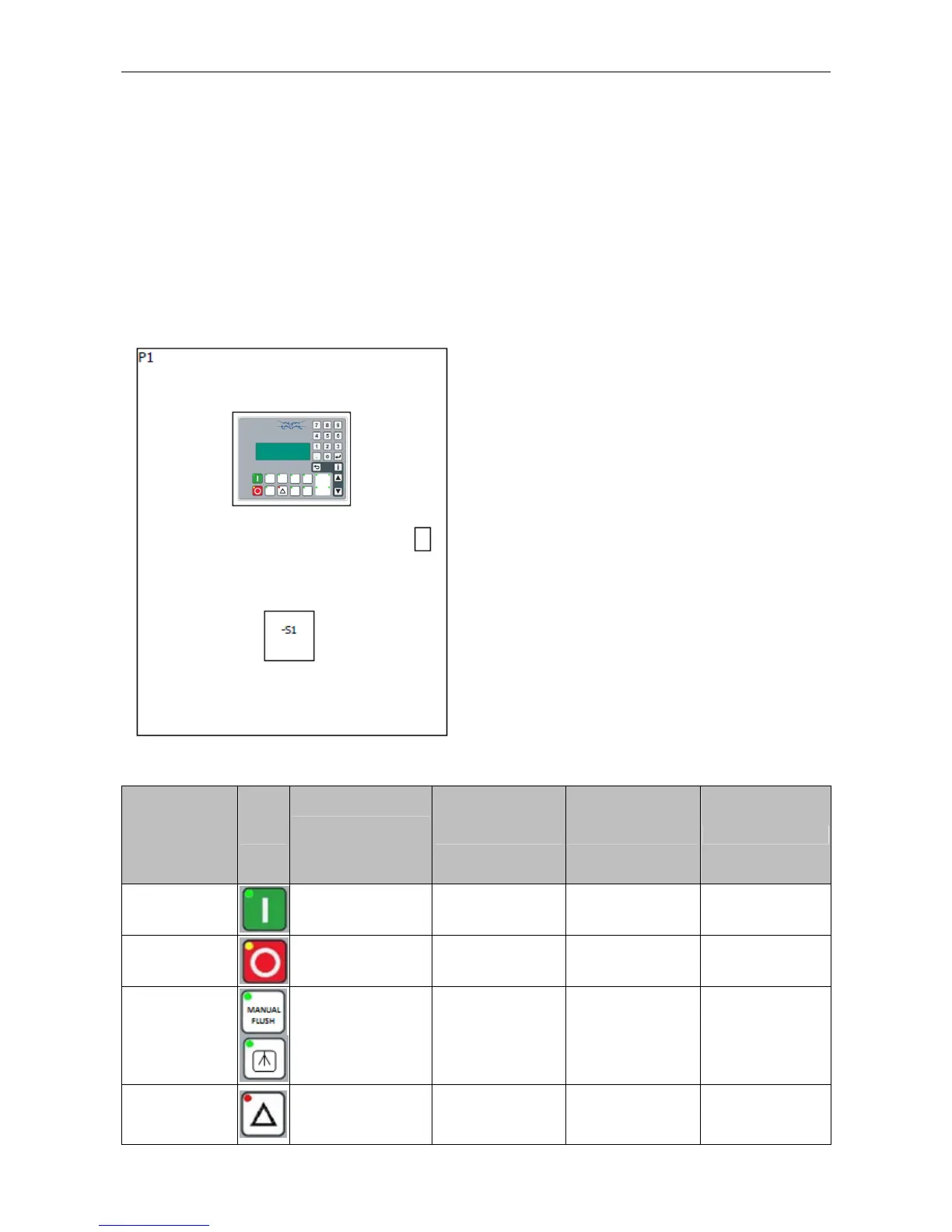

Front view, basic panel:
Push buttons explanations are displayed in the following table.
-
Push button
(PB)
- LED
g-green, y-
yellow, r-red
PB Function
LED Function
LED Flashing LED Steadily Lit LED Off
PB 1: Start
LED 1 (g)
PB: Start auto mode
LED: Show auto mode
-
• Manual mode
sequence
• Auto mode sequence
Stand still
PB 2: Stop
LED 2 (y)
PB: Stop Auto mode
Show stopping auto mode
While stopping auto
mode
-
• Stand still
• Manual mode
PB 3: Flush
LED 3 (g)
PB: Start manual flush
LED:
• Show flushing in manual
mode
• Show flushing in auto
mode
While flushing in auto
mode
While flushing in manual
mode
• Stand still
• Time countdown
between flushes in
auto mode
PB 4: Alarm
LED 4 (r)
PB:
• Show alarm text
• Acknowledge alarm
LED: Show alarm state
• Alarm occurrence
• Alarm not
acknowledged
Alarm acknowledged
• Stand still
• No alarm
