3 Installation
Study the instructions carefully and pay special attention to the warnings!
The valve has welding
ends as standard but can also be supplied with fittings.
NO = Normally open. NC = Normally closed. A/A = Air/air activated.

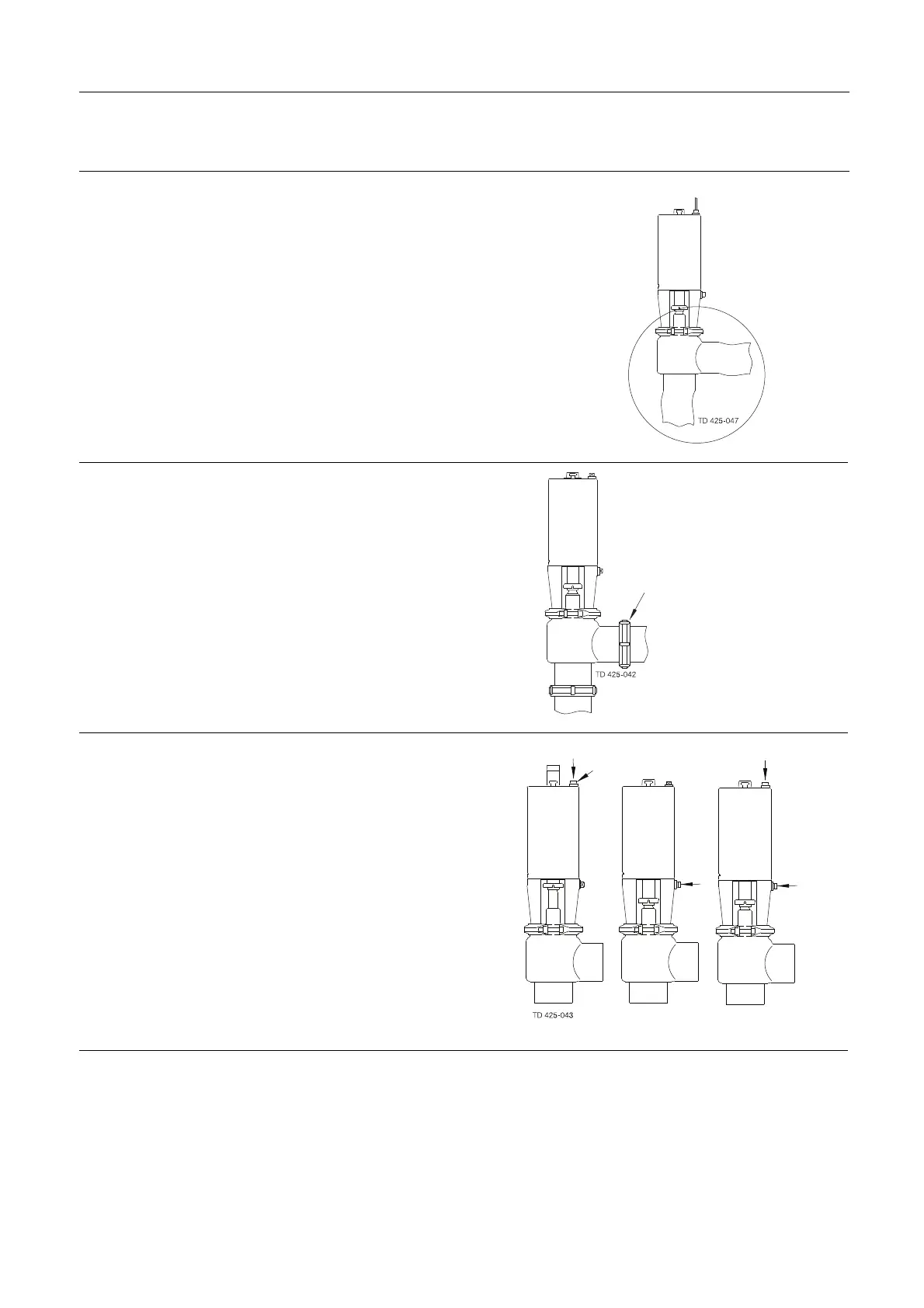

Step 4
Avoid stressing the valve.
Pay special attention to:
-Vibrations
- Thermal expansion of the tubes
- Excessive welding
- Overloading of the pipelines
Risk of
damage!
Step 5
Fittings:
Ensure that the connections are tight.
Remember seal
rings!
Step 6
Air connection:
Air
R1/8”(BSP)
Air
Air
NO NC A/A
1
0
