Alfa Laval ThinkTop v.3.0 User Manual

5 Ins tallation

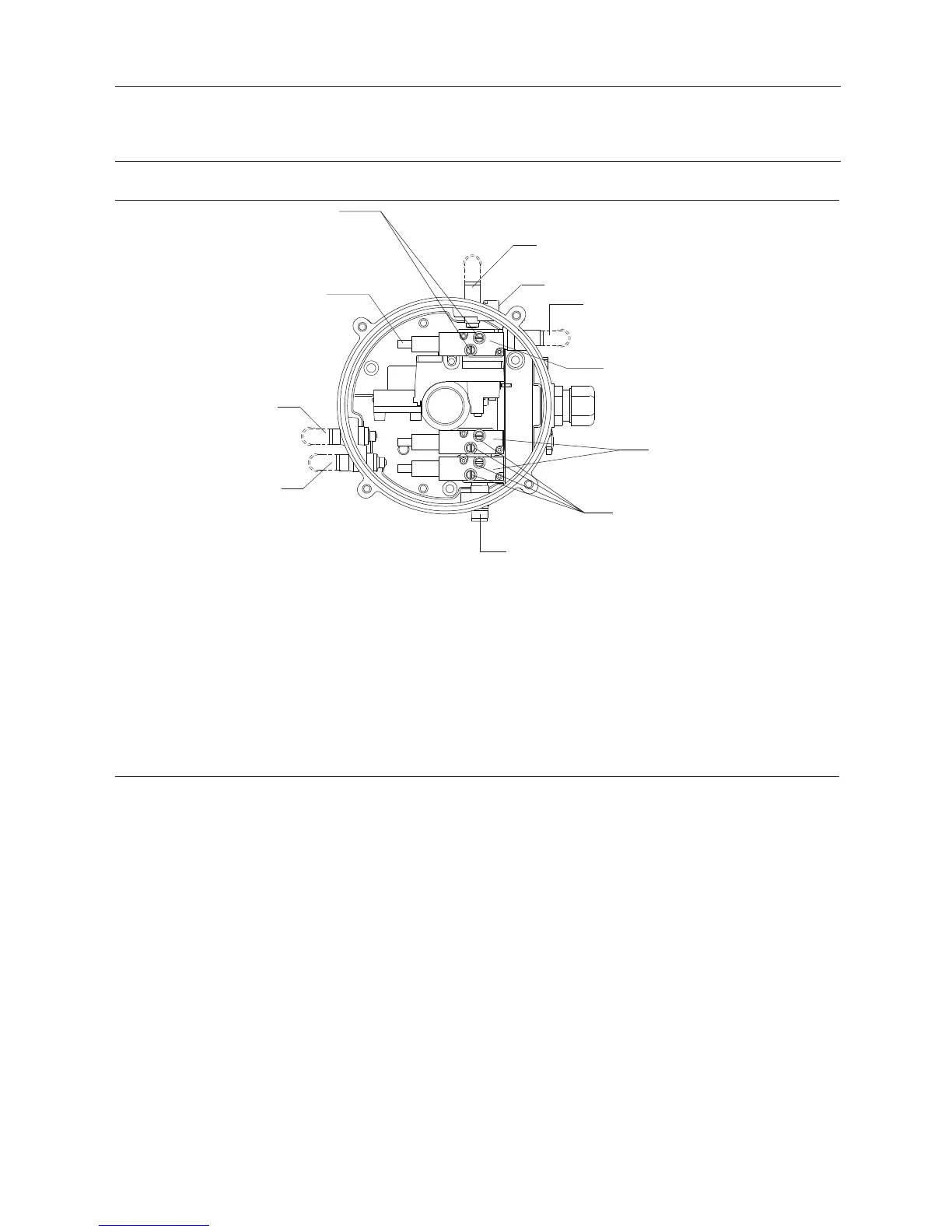

5.3 Air connections
1
2
3
TD 800-252
A
B
C
D
E
F
G
H
I
J
K
A. Air restriction (throttle function) air inlet/outlet
B. Air out 1A
C. Air exhaust
D. Air out 1B (5/2 port solenoid valve only)
E. Solenoid 3/2 or 5/2
F. 3/2 Solenoid valves only
G. Air restriction (throttle function) air inlet/outlet
H. Air in
I. Air out 3
J. Air out 2
K. Manual hold override
1
8
