Alfa Laval ThinkTop v.3.0 User Manual

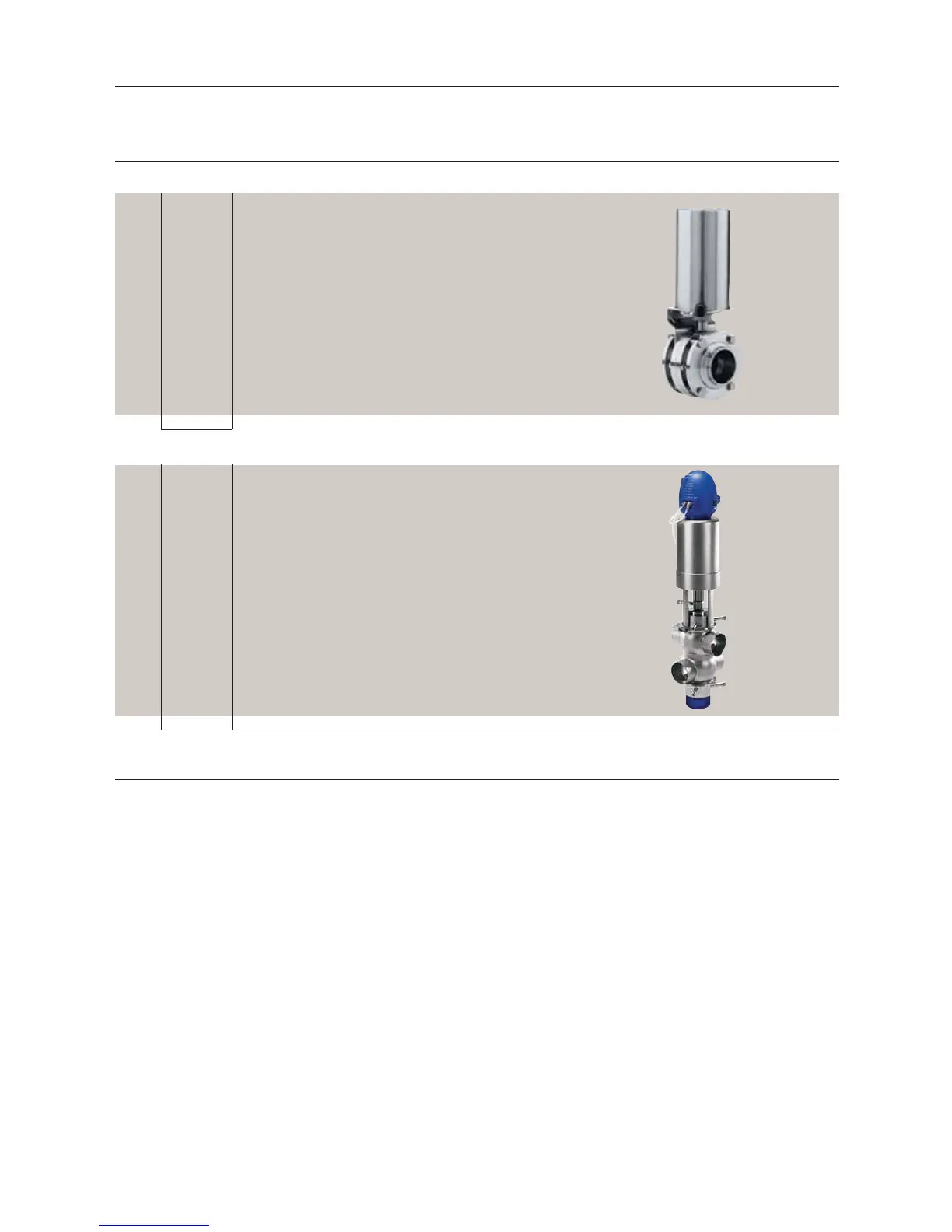

6 Setup diagram
Valve: LKB Valve (Butterfly) NO
Push: I
-
and wait until red LED flashes
Push: I
Push:
II
-
hold for 5 sec (clear all stored parameters)
Push:
II
(red + yellow LED)
Push:
II
(red + yellow + green LED)
Push: I
Activate
-
to approve valve closed (indication stem up)
Push:
II
-
to approve valve closed
Push:
Deactivate
LKB valve-open position (indication-stem up)
Push:
II
-
to approve valve is open
Push:
I
(no upper seat-lift)
Push:
I
(no lower seat-lift)
Push:
I
(no self adjustment)
Push:
I
(no maintenance)
Push:
II
Red LED flashes (save & exit by push)
Setup done
Valve: Unique mixproof Valve (with lower seat-lift)
Push: I
-
and wait until red LED flashes
Push: I
Push:
II
-
hold for 5 sec (clear all stored parameters)
Push:
II
(red + yellow LED)
Push:
II
(red + yellow + green LED)
Push:
II
(red + yellow + green + orange LED)
I
Push:
II
-
to approve valve closed
Activate
Valve opens
Push:
II
-
to approve valve is open
Push:
I
(no upper seat-lift)
Push: Activate Lower seat-lift active
Pu
sh:
II
-
to
approve
Push:
I
(no self adjustment)
Push:
I
(no maintenance)
Push:
II
Red LED flashes (save & exit by push)
Setup done
