Algodue ELETTRONICA UPT210 - Page 17

17

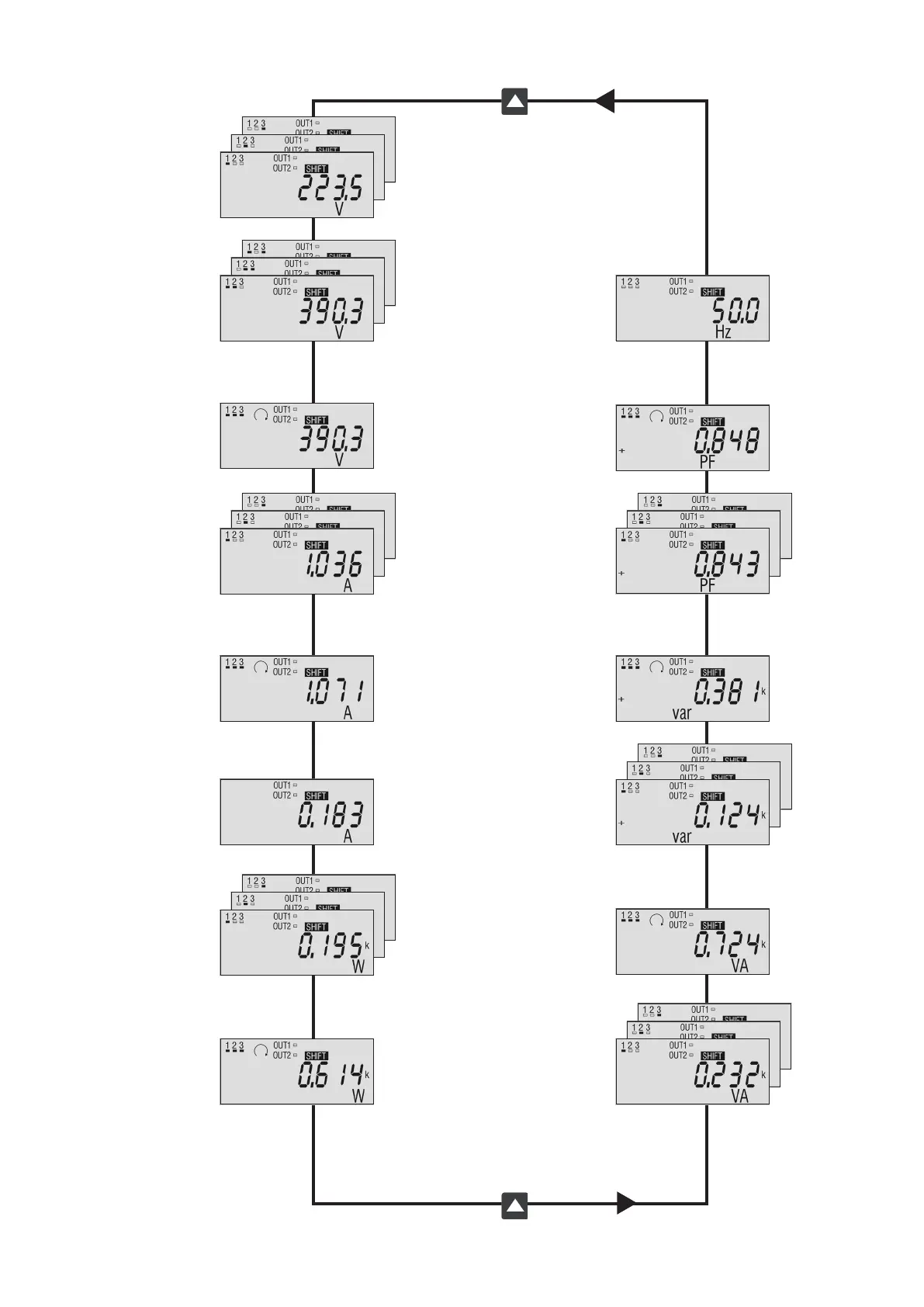

INSTANTANEOUS VALUES PAGES [2° loop]
L-N phase 1 voltage [V]
L-N phase 2 voltage [V]
L-N phase 3 voltage [V]
L-L line 12 voltage [V]
L-L line 23 voltage [V]
L-L line 31 voltage [V]
System voltage [V]
Phase 1 current [A]
Phase 2 current [A]
Phase 3 current [A]
System current [A]
Neutral current [A]
Phase 1 active power [W]
Phase 2 active power [W]
Phase 3 active power [W]
System active power [W]
Frequency [Hz]
System powerfactor
Phase 1 powerfactor
Phase 2 powerfactor
Phase 3 powerfactor
System reactive power [var]
Phase 1 reactive power [var]
Phase 2 reactive power [var]
Phase 3 reactive power [var]
System apparent power [VA]
Phase 1 apparent power [VA]
Phase 2 apparent power [VA]
Phase 3 apparent power [VA]
