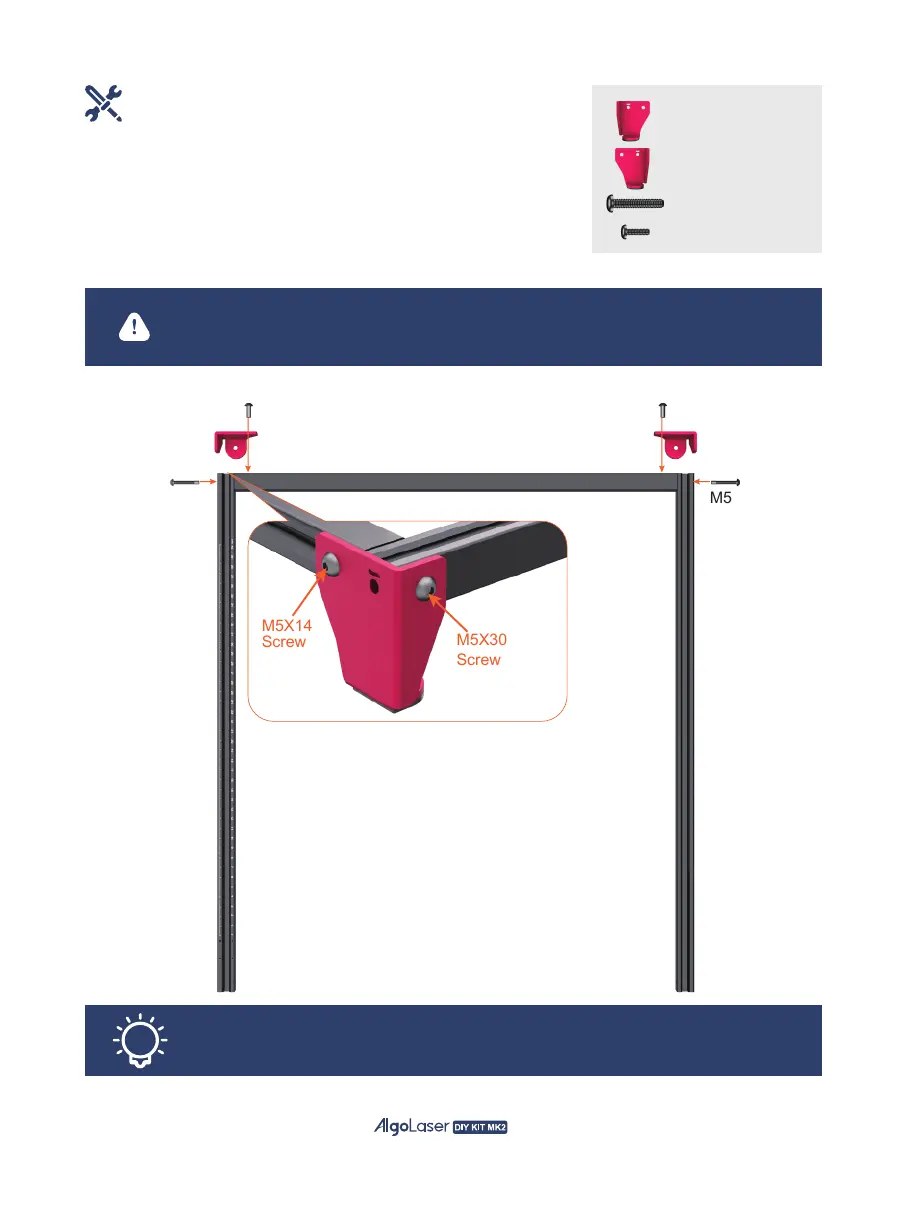

Align the ends of the rear frame assembly to the sides of
the left and right Y-axis frames.
①Make sure the Rear Frame and Front Frame is positioned correctly to prevent any issues
during the rest of the assembly.
②Ensure that the correct support foot is selected.
Assemble the Frame
01/ 11
M5X30 Screw
M5X30
Screw
M5X14
Screw
M5X14 ScrewM5X14 Screw
Please refer to the installation video in the DIY KIT MK2 playlist on
https://www.youtube.com/@algolaserofficial/playlists.
Tips
M5X30 Screw
B
Rear Frame
C
Left Y-Axis Frame
Support Foot 1 Support Foot 2
D
Right Y-Axis Frame
M5X30 Screw * 2
M5X14 Screw * 2
Support Foot 1 * 1
Support Foot 2 * 1
11
