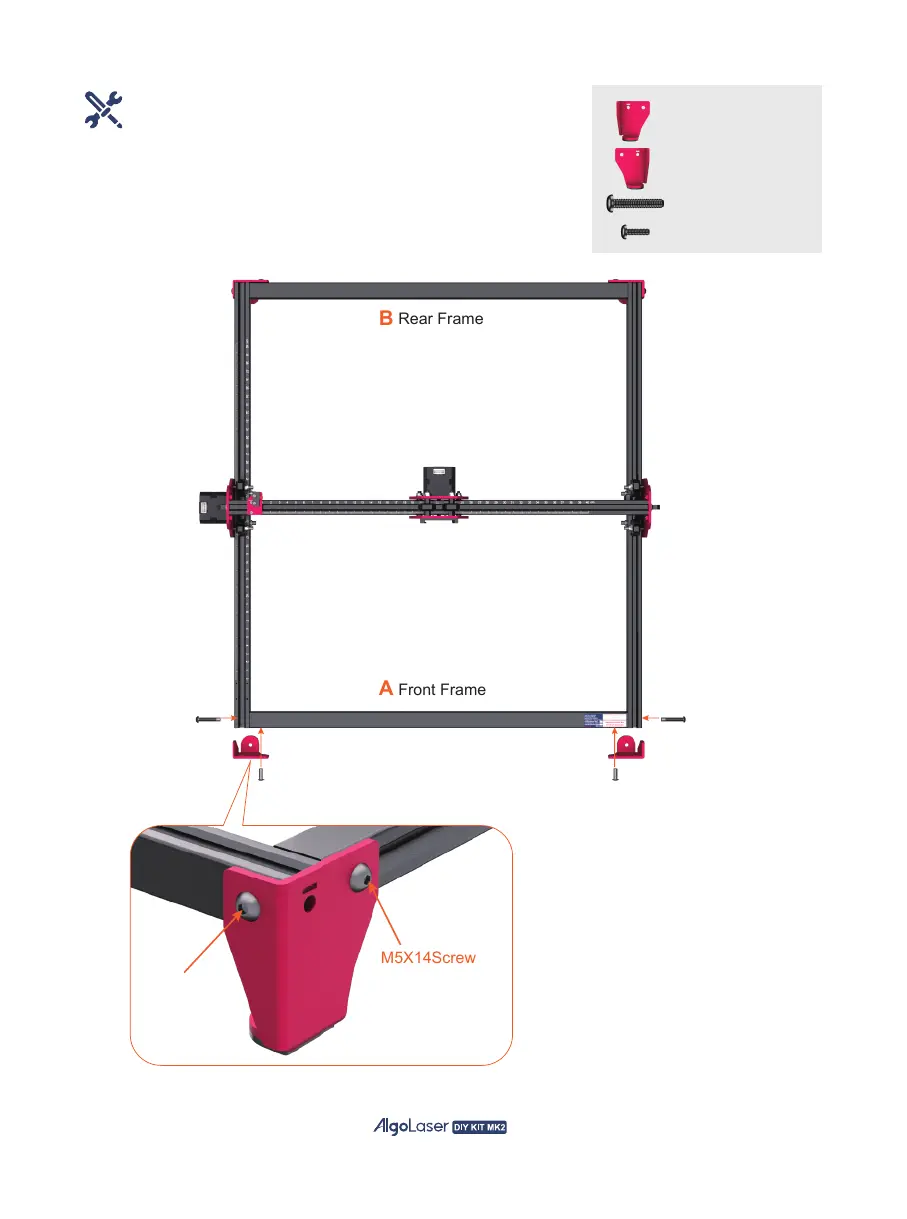

The front frame and Y-axis frame are assembled by support feet.

Assemble the Frame

03/ 11

M5X14Screw

B

Rear Frame

A

Front Frame

M5X30

Screw

M5X30 Screw

M5X14 Screw

M5X30 Screw

M5X14 Screw

Support Foot 1Support Foot 2

M5X30 Screw * 2

M5X14 Screw * 2

Support Foot 1 * 1

Support Foot 2 * 1

13
