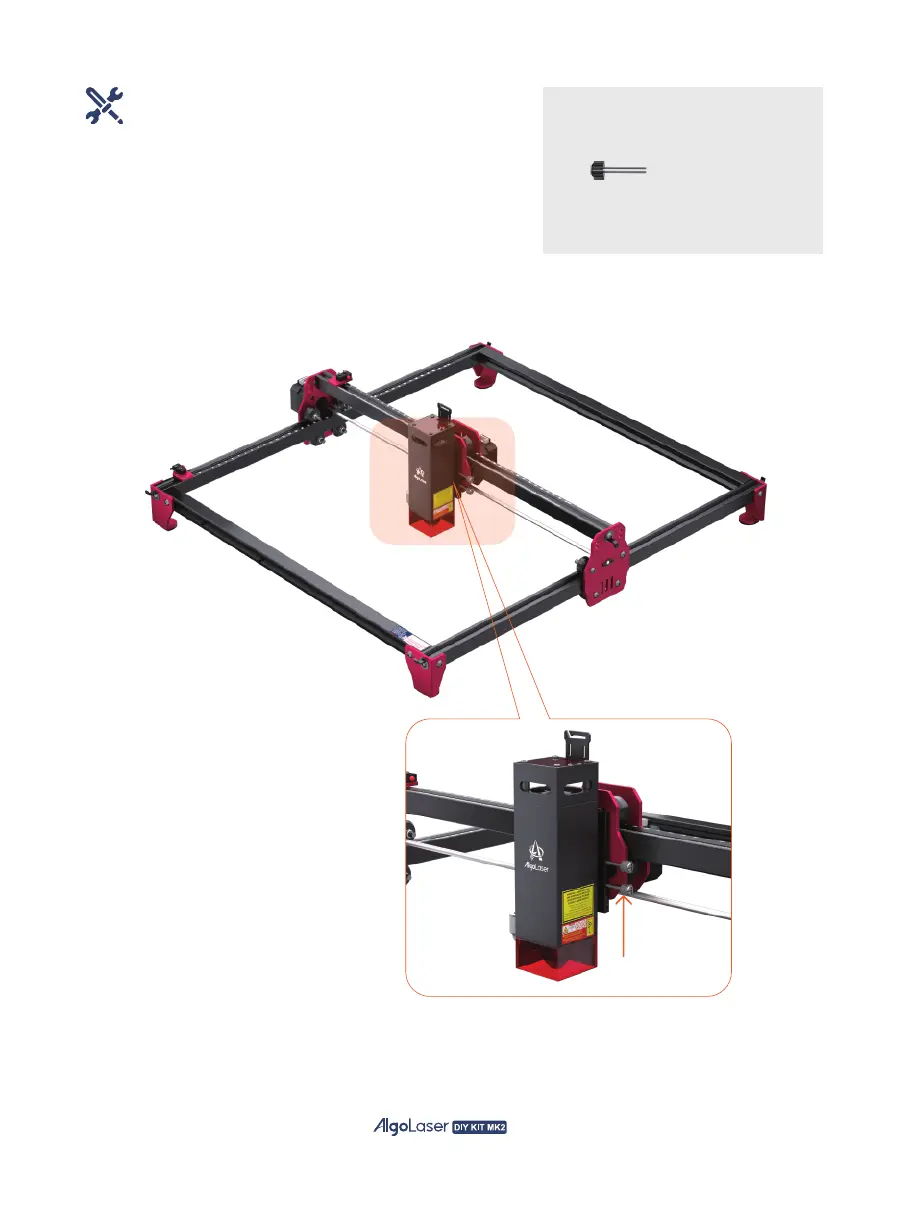

Insert the rear dovetail groove of the ALM-10BD(10W)
Laser Module into the corresponding slot on the fixture.
Tighten the Thumb Screw clockwise to secure it in place.
Assemble the Laser Module
Thumb Screw
Take 10W Laser Module as Reference,
and install other modules in the same way.
Thumb Screw
* 2
