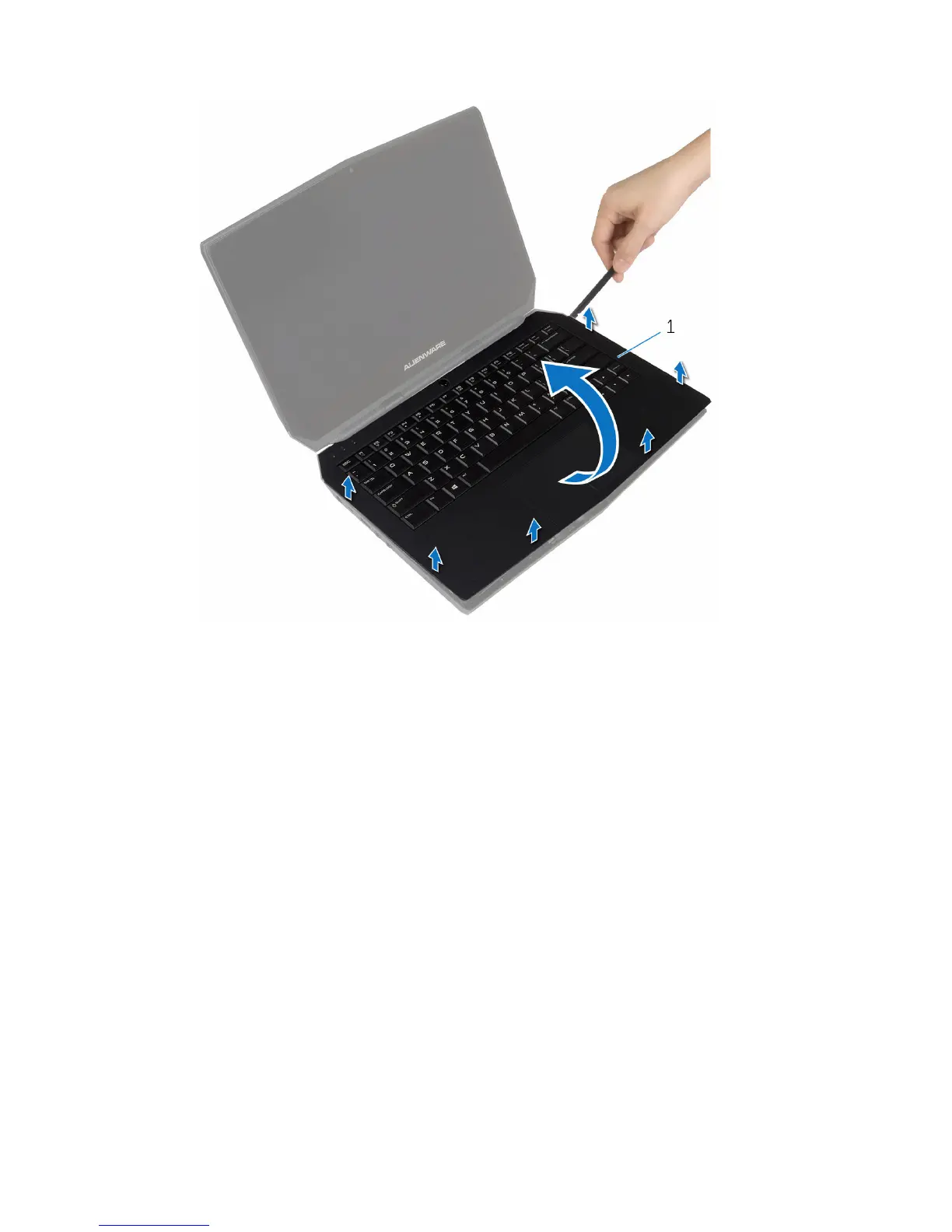

6 Gently lift the palm-rest assembly and turn it over.

1 palm-rest assembly

7 Lift the connector latch and disconnect the power-button board cable from

the system board.
